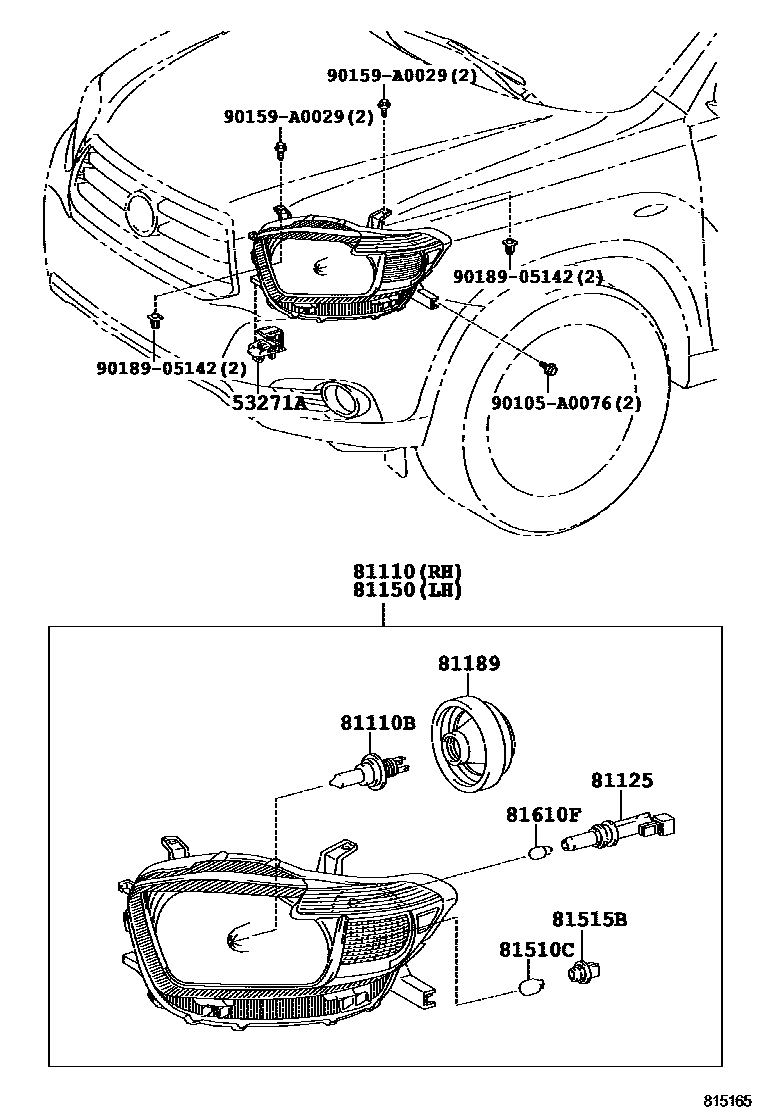

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-0B010iASU40,GSU4#200910-201008

81110HEADLAMP ASSY, RH

main81110-0E090iASU40,GSU4#..LIMD,M,STD200910-201008

main81110-0E100iGSU4#..SPO200910-201008

main81110-0E110iASU40,GSU4#201008

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iASU40,GSU4#201008

12V65W(SAE),60W(ECE)

main90981-13058iASU40,GSU4#200910-201008

12V 60/55W,HALOGEN

81125CORD, HEADLAMP

main81125-48470iASU40,GSU4#200910-201008

81150HEADLAMP ASSY, LH

main81150-0E110iASU40,GSU4#..LIMD,M,STD200910-201008

main81150-0E120iGSU4#..SPO200910-201008

main81150-0E130iASU40,GSU4#201008

81189COVER, HEADLAMP

main90075-65002iASU40,GSU4#200910-201008

main90075-65006iASU40,GSU4#201008

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iASU40,GSU4#200910-201008

12V 21W,AMBER

main90981-AF004iASU40,GSU4#201008

12V 30/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iASU40,GSU4#200910-201008

main90075-60060iASU40,GSU4#201008

81610FBULB(FOR CLEARANCE LAMP)

main90981-15012iASU40,GSU4#200910-201008

12V 5W

90105A0076

main90105-A0076

90159A0029

main90159-A0029

9018905142

main90189-05142

12 parts on this diagram · 2 diagrams in section
