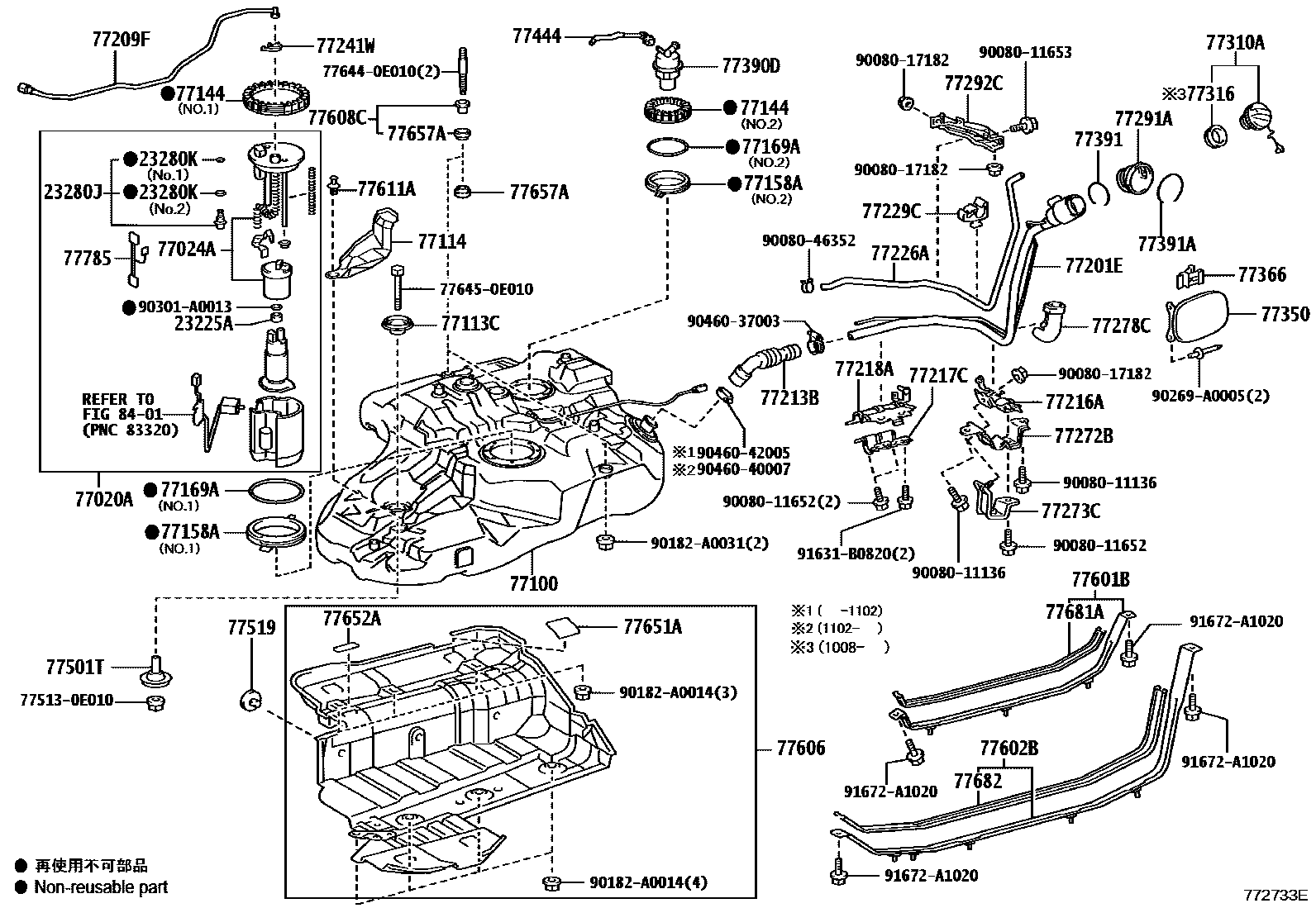

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23225ASPACER, FUEL PUMP

main23225-21010i2GRFE..GSU4#201008

main23225-21020i1ARFE..ASU40200910-201008

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1ARFE,2GRFE..ASU40,GSU4#200910-201008

main23280-38020i2GRFE..GSU4#201008

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1ARFE,2GRFE..ASU40,GSU4#200910-201008

NO.1

main90301-15024i1ARFE,2GRFE..ASU40,GSU4#200910-201008

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0E021iGSU4#200910-201008

main77020-0E060iASU40200910-201008

main77020-0E070iGSU4#201008

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0E020iGSU4#200910-201008

main77024-0E030iGSU4#201008

main77024-0E060iASU40200910-201008

77100TANK ASSY, FUEL

main77001-0E050iASU40,GSU4#200910-201104

sub77001-0E051

main77001-0E051iASU40,GSU4#201105

77113CPLATE, FUEL TANK SIDE

main77103-08010iASU40,GSU4#201002-201008

main77103-48030iASU40,GSU4#200910-201001

77114PLATE, FUEL TANK SIDE, REAR

main77114-48030iASU40,GSU4#200910-201008

77144RETAINER, FUEL PUMP GAUGE

main77144-08010iASU40,GSU4#200910-201008

NO.1

main77144-08020iASU40,GSU4#200910-201008

NO.2

77158ASUPPORT, TANK SUCTION TUBE

main77158-08010iASU40,GSU4#200910-201008

NO.1

main77158-08020iASU40,GSU4#200910-201008

NO.2

77169AGASKET, FUEL SUCTION TUBE SET

main77169-48030iASU40,GSU4#200910-201011

NO.2

sub77169-48070

main77169-48040iASU40,GSU4#200910-201011

NO.1

main77169-48060iASU40,GSU4#201012

NO.1

main77169-48070iASU40,GSU4#201003-201008

NO.2

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0E050iASU40,GSU4#200910-201008

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0E030iASU40,GSU4#200910-201008

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0E010iASU40,GSU4#200910-201008

sub77213-0E011

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0E010iASU40,GSU4#200910-201008

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0E020iASU40,GSU4#200910-201008

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0E020iASU40,GSU4#200910-201008

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0E030iASU40,GSU4#200910-201008

77229CCLAMP, BREATHER TUBE

main77229-0E010iASU40,GSU4#200910-201008

77241WCLIP, TUBE JOINT

main77241-02010iASU40,GSU4#200910-201008

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-0E010iASU40,GSU4#200910-201008

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-0E010iASU40,GSU4#200910-201008

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-48010iASU40,GSU4#200910-201008

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0E040iASU40,GSU4#200910-201008

77292CSHIELD, FUEL TANK FILLER PIPE, NO.2

main77292-0E020iASU40,GSU4#200910-201008

77310ACAP ASSY, FUEL TANK

main77300-06040iASU40,GSU4#200910-201008

77316GASKET, FUEL TANK CAP

main77316-06070iASU40,GSU4#201008

77350LID ASSY, FUEL FILLER OPENING

main77350-48060iASU40,GSU4#200910-201008

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-0E010iASU40,GSU4#200910-201008

77390DVALVE ASSY, FUEL TANK OVER FILL CHECK

main77390-0E011iASU40,GSU4#200910-201008

77391RING, FUEL INLET BOX

main77391-12020iASU40,GSU4#200910-201008

77391ARING, FUEL INLET BOX

main77391-33010iASU40,GSU4#200910-201008

77444HOSE, FUEL TANK VENT

main77404-0E010iASU40,GSU4#200910-201205

sub77404-0E070

main77404-0E070iASU40,GSU4#201205

77501TBRACKET SUB-ASSY, FUEL TANK

main77501-08010iASU40,GSU4#201002-201008

main77501-48020iASU40,GSU4#200910-201001

77519SPACER, FUEL TANK BRACKET

main77529-0E010iASU40,GSU4#200910-201008

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0E020iASU40,GSU4#200910-201008

(L)

main77601-48070iASU40,GSU4#200910-201008

(J)

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0E021iASU40,GSU4#200910-201008

(L)

main77602-48060iASU40,GSU4#200910-201008

(J)

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-48060iASU40,GSU4#200910-201008

77608CCUSHION SET, FUEL TANK

main77608-0E011iASU40,GSU4#200910-201008

RH

main77608-0E020iASU40,GSU4#200910-201008

LH

77611APIN (FOR FUEL TANK BAND)

main77653-08010iASU40,GSU4#200910-201008

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iASU40,GSU4#200910-201008

77652ACUSHION, FUEL TANK, NO.2

main77652-48020iASU40,GSU4#200910-201008

77657ACUSHION, FUEL TANK, NO.5

main77655-0E011iASU40,GSU4#200910-201008

RH

main77655-0E020iASU40,GSU4#200910-201008

LH

77681ASEAT, FUEL TANK BAND

main77681-0E020iASU40,GSU4#200910-201008

(L)

main77681-48050iASU40,GSU4#200910-201008

(J)

77682SEAT, FUEL TANK BAND, LH

main77682-0E020iASU40,GSU4#200910-201008

(L)

main77682-48050iASU40,GSU4#200910-201008

(J)

77785HARNESS, FUEL PUMP

main77785-0E020iASU40,GSU4#200910-201111

main77785-0E030iGSU4#201008

main77785-0E050iASU40201111

8401

775130E010RETAINER, LPG TANK BRACKET, FRONT

main77513-0E010

776440E010BOLT, FUEL TANK

main77644-0E010

776450E010PACKING, FUEL TANK BRACKET UPPER, B

main77645-0E010

9008011136

main90080-11136

9008011652

main90080-11652

9008011653

main90080-11653

9008017182

main90080-17182

9008046352

main90080-46352

90182A0014

main90182-A0014

90182A0031

main90182-A0031

90269A0005

main90269-A0005

90301A0013

main90301-A0013

9046037003

main90460-37003

9046040007

main90460-40007

9046042005

main90460-42005

91631B0820

main91631-B0820

91672A1020

main91672-A1020

64 parts on this diagram · 5 diagrams in section
