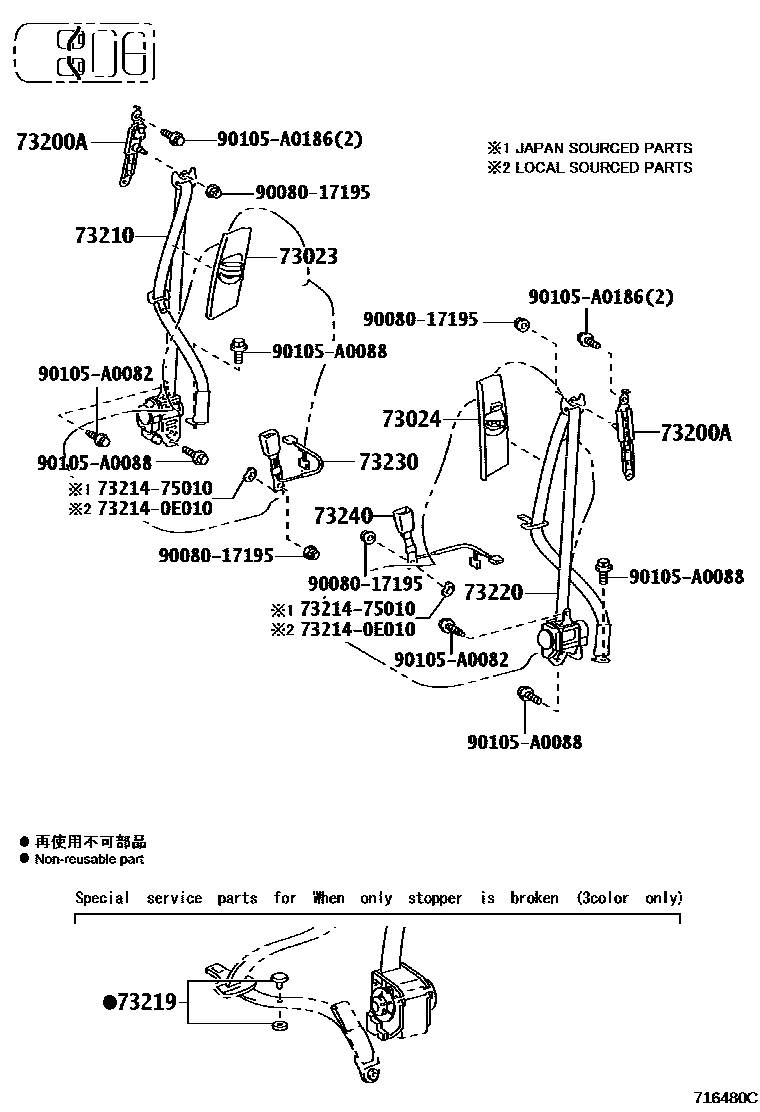

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06030-B0iASU40,GSU4#..STD200910-201008

GRAY,TRIM1#

main73023-06030-B0iGSU4#..LIMD,M,SPO200910-201312

GRAY,TRIM1#,2#

main73023-06030-E1iASU40,GSU4#200910-201312

SAND BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06030-B0iGSU4#..LIMD,M,SPO200910-201312

GRAY,TRIM1#,2#

main73024-06030-B0iGSU4#..LIMD,M,SPO200910-201008

GRAY,TRIM1#

main73024-06030-E1iASU40,GSU4#200910-201312

SAND BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iASU40,GSU4#200910-201210

main73200-0C020iASU40,GSU4#201211

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0E050-A0iASU40,GSU4#200910-201008

IVORY,TRIM4#

main73210-0E050-B0iASU40,GSU4#200910-201008

GRAY,TRIM1#

main73210-0E050-C0iGSU4#..LIMD,M,SPO200910-201008

BLACK,TRIM2#

main73210-0E070-A0iASU40,GSU4#201008-201312

IVORY,TRIM4#

main73210-0E070-B0iASU40,GSU4#201008-201312

GRAY,TRIM1#

main73210-0E070-C0iASU40,GSU4#..STD201008-201312

BLACK,TRIM2#

main73210-0E070-C0iGSU4#..LIMD201008-201312

CORE PACKAGE,BLACK,TRIM2#

main73210-0E070-C0iGSU4#..LIMD201008-201312

CORE+ PACKAGE,BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iASU40,GSU4#200910-201008

BLACK

main73219-02010iASU40,GSU4#201008

BLACK,BLACK

main73219-02020iASU40,GSU4#201008

GRAY,GRAY

main73219-02020iASU40,GSU4#200910-201008

GRAY

main73219-02030iASU40,GSU4#201008

BEIGE,BEIGE

main73219-02030iASU40,GSU4#200910-201008

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0E050-A0iASU40,GSU4#200910-201008

IVORY,TRIM4#

main73220-0E050-B0iASU40,GSU4#200910-201008

GRAY,TRIM1#

main73220-0E050-C0iGSU4#..LIMD,M,SPO200910-201008

BLACK,TRIM2#

main73220-0E060-A0iASU40,GSU4#201008-201312

IVORY,TRIM4#

main73220-0E060-B0iASU40,GSU4#201008-201312

GRAY,TRIM1#

main73220-0E060-C0iGSU4#..LIMD201008-201312

CORE+ PACKAGE,BLACK,TRIM2#

main73220-0E060-C0iGSU4#..LIMD201008-201312

BLACK,TRIM2#

main73220-0E060-C0iGSU4#..LIMD201008-201312

CORE PACKAGE,BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0E150-B0iASU40,GSU4#..STD200910-201312

GRAY,TRIM1#

main73230-0E150-C0iGSU4#..M,SPO200910-201008

BLACK,TRIM2#

main73230-0E150-E0iASU40,GSU4#..M,SPO,STD200910-201312

SAND BEIGE,TRIM4#

main73230-0E170-B0iGSU4#..LIMD200910-201312

GRAY,TRIM1#

main73230-0E170-C0iGSU4#..LIMD200910-201312

BLACK,TRIM2#

main73230-0E170-E0iGSU4#..LIMD200910-201312

SAND BEIGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0E140-B0iASU40,GSU4#..STD200910-201312

GRAY,TRIM1#

main73230-0E140-E0iASU40,GSU4#..STD200910-201312

SAND BEIGE,TRIM4#

main73230-0E160-B0iASU40,GSU4#..STD200910-201008

FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,GRAY,TRIM1#

main73230-0E160-B0iGSU4#..LIMD,M,SPO200910-201312

GRAY,TRIM1#

main73230-0E160-B0iGSU4#..LIMD201008-201312

CORE PACKAGE,GRAY,TRIM1#

main73230-0E160-B0iGSU4#..LIMD201008-201312

CORE+ PACKAGE,GRAY,TRIM1#

main73230-0E160-C0iASU40,GSU4#..STD201008-201312

CORE PACKAGE,BLACK,TRIM2#

main73230-0E160-C0iASU40,GSU4#..STD200910-201312

BLACK,TRIM2#

main73230-0E160-C0iASU40,GSU4#..STD201008-201312

CORE+ PACKAGE,BLACK,TRIM2#

main73230-0E160-E0iGSU4#..LIMD201008-201312

CORE PACKAGE,SAND BEIGE,TRIM4#

main73230-0E160-E0iGSU4#..LIMD,M,SPO200910-201312

SAND BEIGE,TRIM4#

main73230-0E160-E0iGSU4#..LIMD,M,SPO200910-201008

FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL,SAND BEIGE,TRIM4#

main73230-0E160-E0iGSU4#..LIMD201008-201312

CORE+ PACKAGE,SAND BEIGE,TRIM4#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0088

main90105-A0088

90105A0186

main90105-A0186

14 parts on this diagram · 4 diagrams in section
