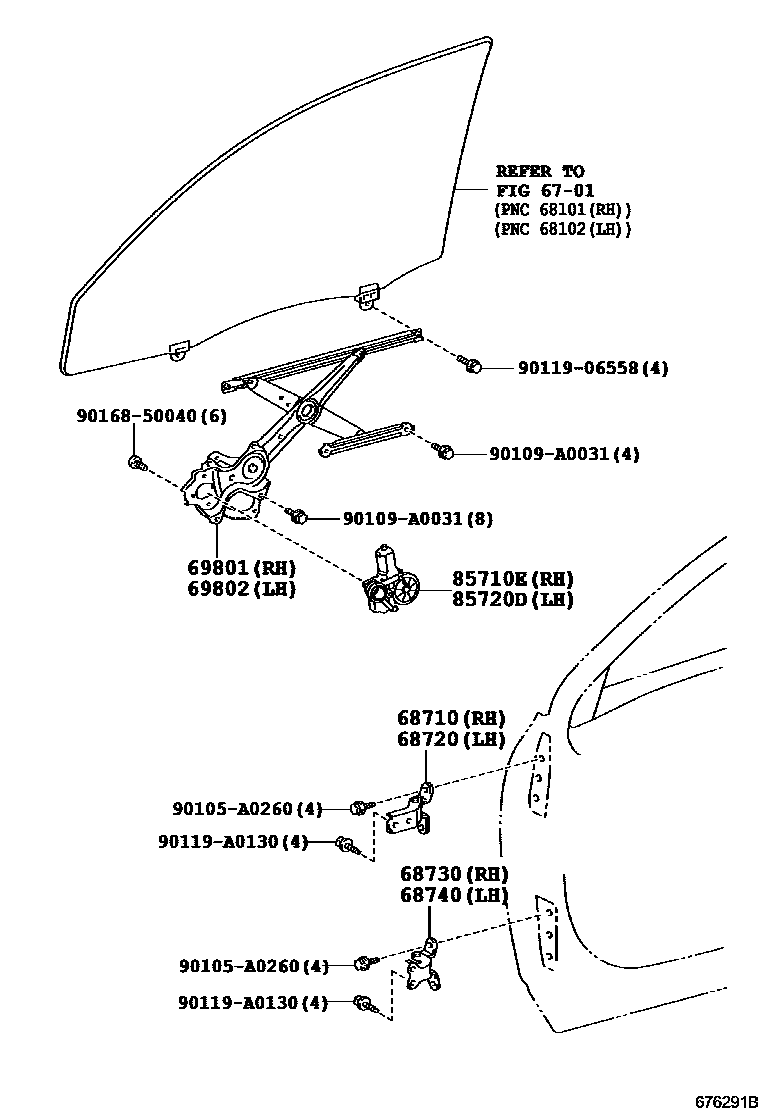

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iASU40,GSU4#200910-201008

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iASU40,GSU4#200910-201008

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iASU40,GSU4#200910-201008

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iASU40,GSU4#200910-201008

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0E050iASU40,GSU4#200910-201203

sub69801-0E051

main69801-0E051iASU40,GSU4#201204

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0E050iASU40,GSU4#200910-201203

sub69802-0E051

main69802-0E051iASU40,GSU4#201204

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AE010iASU40,GSU4#200910-201008

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02450iASU40,GSU4#201304

main85720-0T010iASU40,GSU4#200910-201303

sub85720-02450

90105A0260

main90105-A0260

90109A0031

main90109-A0031

9011906558

main90119-06558

90119A0130

main90119-A0130

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
