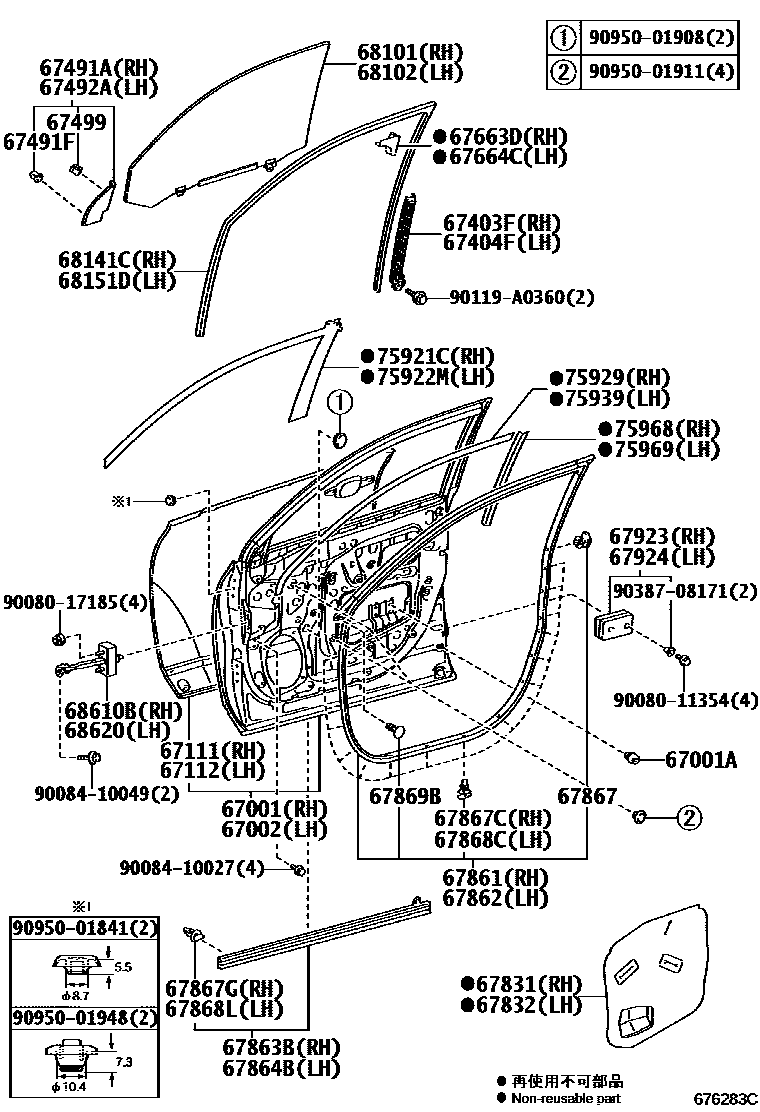

FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491FCLIP(FOR DOOR TRIM)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CLIP, DOOR WEATHERSTRIP
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*HSEA,T=4.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*HSEA,T=4.0,GREEN
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
9008011354
main90080-11354
9008017185
main90080-17185
9008410027
main90084-10027
9008410049
main90084-10049
90119A0360
main90119-A0360
9038708171
main90387-08171
9095001841
main90950-01841
9095001908
main90950-01908
9095001911
main90950-01911
9095001948
main90950-01948
49 parts on this diagram · 3 diagrams in section
