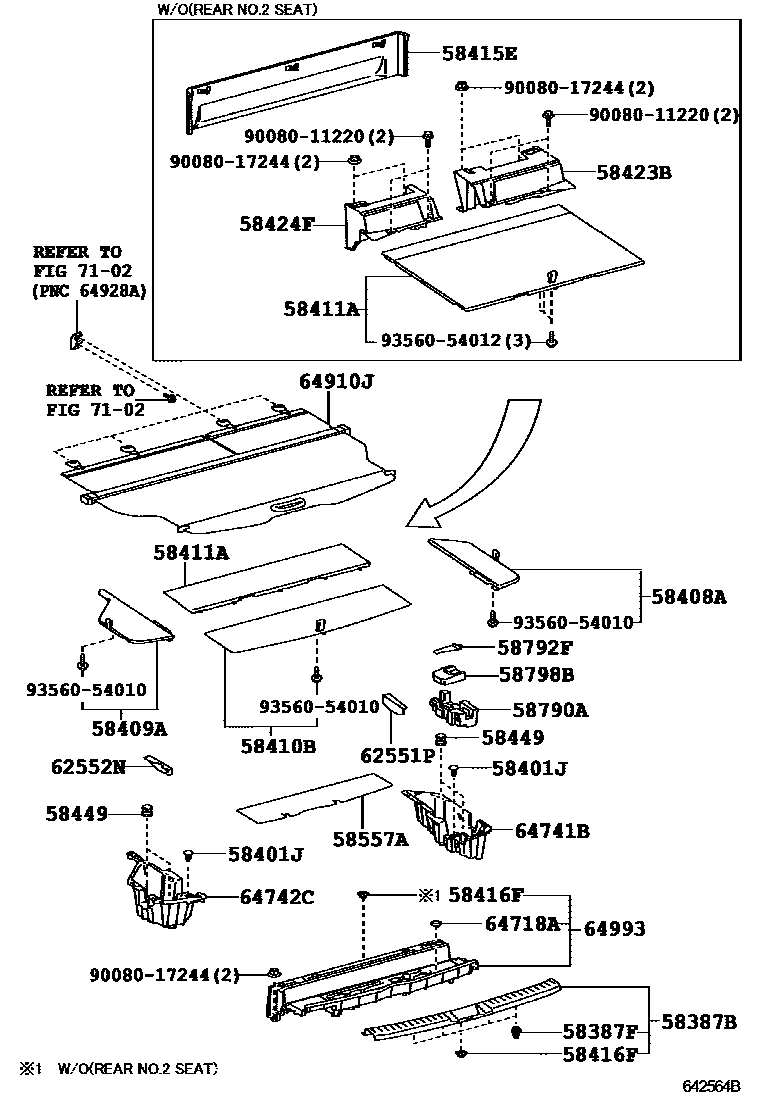

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58387FCLIP, REAR FLOOR FINISH PLATE
58401JCLIP(FOR DECK BOAD)
58408ABOARD SUB-ASSY, DECK, NO.2
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58409ABOARD SUB-ASSY, DECK, NO.3
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58410BBOARD ASSY, DECK
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58411ABOARD, DECK, NO.1
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58415EBOARD, REAR FLOOR, NO.1
58416FBRACKET, DECK BOARD, NO.1
58423BSPACER, REAR FLOOR BOARD, NO.2
58424FSPACER, REAR FLOOR BOARD, NO.3
58449CLIP, DECK BOARD
BLACK
58557AMAT, REAR
58790ACARRIER ASSY, JACK
58792FSUPPORT, JACK CARRIER
58798BCUSHION, JACK CARRIER
62551PCOVER, REAR SEAT SIDE, RH
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62552NCOVER, REAR SEAT SIDE, LH
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
64718ACOVER, DECK TRIM SERVICE HOLE
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64910JCOVER ASSY, TONNEAU
GRAY,TRIM1#,(L)
PACKAGE TRAY TRIM & TONEAU COVER-WITH,GRAY,TRIM1#,(L)
BLACK,TRIM2#,(L)
PACKAGE TRAY TRIM & TONEAU COVER-WITH,SAND BEIGE,TRIM4#,(L)
SAND BEIGE,TRIM4#,(L)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&PACKAGE TRAY TRIM & TONEAU COVER-WITH,GRAY,TRIM1#
GRAY,TRIM1#
CORE+ PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),GRAY,TRIM1#
CORE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),GRAY,TRIM1#
CORE+ PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),BLACK,TRIM2#
BLACK,TRIM2#
CORE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),BLACK,TRIM2#
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&PACKAGE TRAY TRIM & TONEAU COVER-WITH,BLACK,TRIM2#
CORE+ PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),SAND BEIGE,TRIM4#
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&PACKAGE TRAY TRIM & TONEAU COVER-WITH,SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
CORE PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),SAND BEIGE,TRIM4#
PACKAGE TRAY TRIM & TONEAU COVER-WITH,GRAY,TRIM1#,(J)
sub64910-48071
PACKAGE TRAY TRIM & TONEAU COVER-WITH,SAND BEIGE,TRIM4#,(J)
sub64910-48071
7102
9008011220
main90080-11220
9008017244
main90080-17244
9356054010
main93560-54010
9356054012
main93560-54012
28 parts on this diagram · 3 diagrams in section
