INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

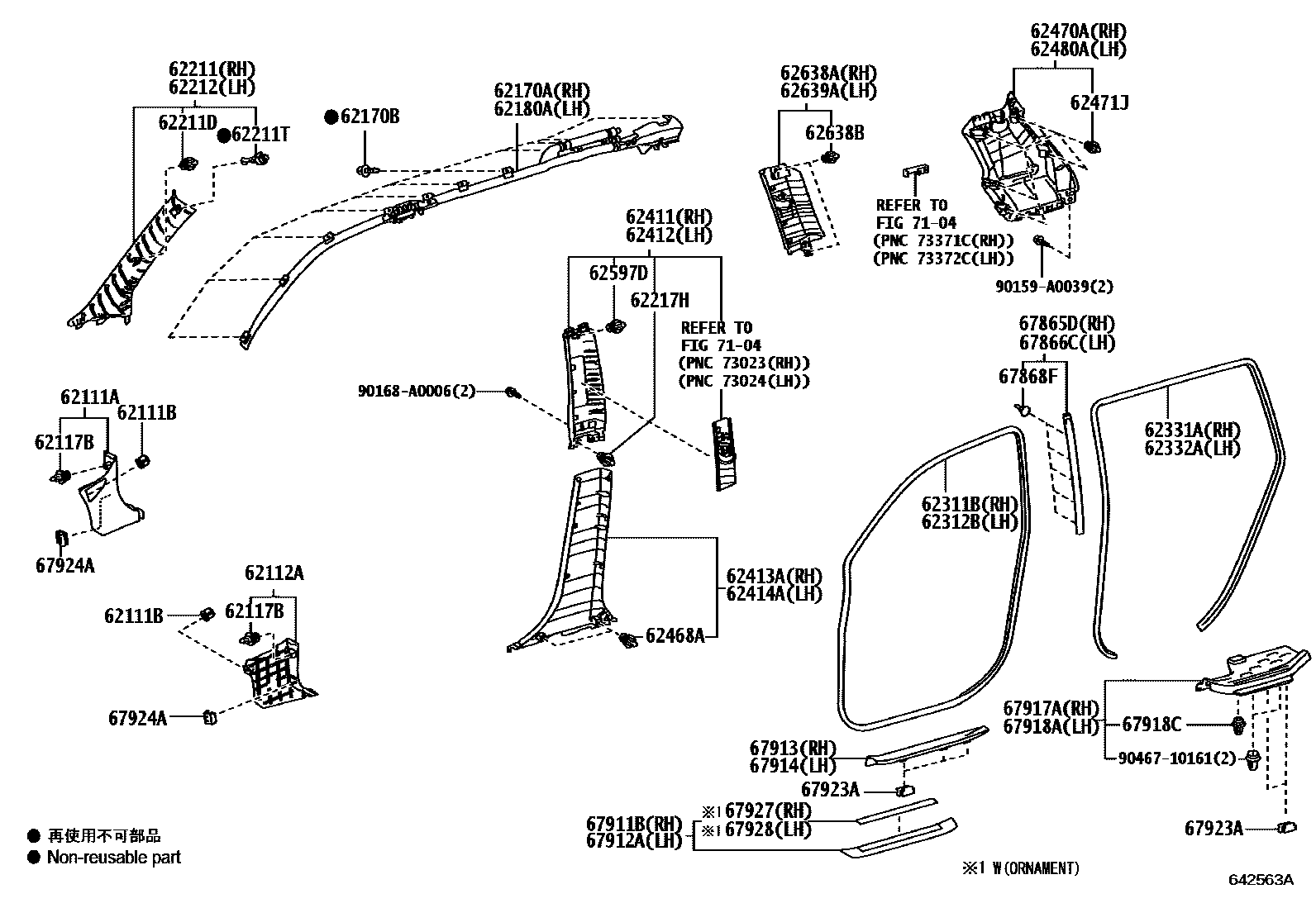

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-0E040-B0i200910-201312
GRAY,TRIM1#
main62101-0E040-C0i200910-201312
BLACK,TRIM2#
main62101-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62111BCLIP(FOR COWL SIDE TRIM)
main90467-A0024i200910-201008
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-0E040-B0i200910-201312
GRAY,TRIM1#
main62102-0E040-C0i200910-201312
BLACK,TRIM2#
main62102-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-10161i200910-201008
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0E040i200910-201008
62170BBOLT, W/WASHER
main90159-06001i200910-201008
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0E040i200910-201008
62211GARNISH, FRONT PILLAR, RH
main62210-0E040-B0i200910-201008
GRAY,TRIM1#
main62210-0E040-B0i200910-201312
GRAY,TRIM1#,2#
main62210-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-10188i200910-201008
62211TCLIP(FOR FRONT PILLAR GARNISH)
main62217-48010i200910-201008
62212GARNISH, FRONT PILLAR, LH
main62220-0E040-B0i200910-201312
GRAY,TRIM1#,2#
main62220-0E040-B0i200910-201008
GRAY,TRIM1#
main62220-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62217HCLIP, CENTER PILLER GARNISH
main90467-10161i200910-201008
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0E040-B0i200910-201312
GRAY,TRIM1#
main62311-0E040-C0i200910-201312
BLACK,TRIM2#
main62311-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-0E040-B0i200910-201312
GRAY,TRIM1#
main62312-0E040-C0i200910-201312
BLACK,TRIM2#
main62312-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0E040-B0i200910-201312
GRAY,TRIM1#
main62331-0E040-C0i200910-201312
BLACK,TRIM2#
main62331-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0E040-B0i200910-201312
GRAY,TRIM1#
main62332-0E040-C0i200910-201312
BLACK,TRIM2#
main62332-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62411GARNISH, CENTER PILLAR, RH
main62410-0E040-B0i200910-201008
GRAY,TRIM1#
main62410-0E040-B0i200910-201312
GRAY,TRIM1#,2#
main62410-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62412GARNISH, CENTER PILLAR, LH
main62420-0E040-B0i200910-201008
GRAY,TRIM1#
main62420-0E040-B0i200910-201312
GRAY,TRIM1#,2#
main62420-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0E040-B0i200910-201312
GRAY,TRIM1#
main62413-0E040-C0i200910-201312
BLACK,TRIM2#
main62413-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0E040-B0i200910-201312
GRAY,TRIM1#
main62414-0E040-C0i200910-201312
BLACK,TRIM2#
main62414-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
62468ACLIP (FOR CENTER PILLAR REAR GARNISH)
main90467-10167i200910-201008
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-0E110-B0i200910-201312
GRAY,TRIM1#,2#
main62470-0E110-B0i200910-201008
GRAY,TRIM1#
main62470-0E110-E0i200910-201312
SAND BEIGE,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
main62489-0E010i200910-201008
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-0E090-B0i200910-201008
GRAY,TRIM1#
main62480-0E090-B0i200910-201312
GRAY,TRIM1#,2#
main62480-0E090-E0i200910-201312
SAND BEIGE,TRIM4#
main62480-0E110-B0i201008-201312
GRAY,TRIM1#,2#
main62480-0E110-B0i201008-201312
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),GRAY,TRIM1#,2#
main62480-0E110-E0i201008-201312
SAND BEIGE,TRIM4#
main62480-0E110-E0i201008-201312
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),SAND BEIGE,TRIM4#
62597DCLIP
main90467-10188i200910-201008
62638AGARNISH, QUARTER PILLAR, RH
main62638-0E020-B0i200910-201008
GRAY,TRIM1#
main62638-0E020-B0i200910-201312
GRAY,TRIM1#,2#
main62638-0E020-E0i200910-201312
SAND BEIGE,TRIM4#
62638BCLIP
main90467-10188i200910-201008
62639AGARNISH, QUARTER PILLAR, LH
main62639-0E020-B0i200910-201008
GRAY,TRIM1#
main62639-0E020-B0i200910-201312
GRAY,TRIM1#,2#
main62639-0E020-E0i200910-201312
SAND BEIGE,TRIM4#
67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH
main67865-0E030i200910-201008
67866CWEATHERSTRIP, CENTER PILLAR UPPER END, LH
main67866-0E030i200910-201008
67868FRETAINER, DOOR WEATHERSTRIP, LH
main67867-12150i200910-201008
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-0E040-B0i200910-201312
GRAY,TRIM1#
main67911-0E040-C0i200910-201312
BLACK,TRIM2#
main67911-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
main67911-0E050-B0i200910-201312
GRAY,TRIM1#
main67911-0E050-C0i200910-201312
BLACK,TRIM2#
main67911-0E050-E0i200910-201312
SAND BEIGE,TRIM4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-0E040-B0i200910-201312
GRAY,TRIM1#
main67912-0E040-C0i200910-201312
BLACK,TRIM2#
main67912-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
main67912-0E050-B0i200910-201312
GRAY,TRIM1#
main67912-0E050-C0i200910-201312
BLACK,TRIM2#
main67912-0E050-E0i200910-201312
SAND BEIGE,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-0E050-B0i200910-201312
GRAY,TRIM1#
main67913-0E050-C0i200910-201312
BLACK,TRIM2#
main67913-0E050-E0i200910-201312
SAND BEIGE,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-0E050-B0i200910-201312
GRAY,TRIM1#
main67914-0E050-C0i200910-201312
BLACK,TRIM2#
main67914-0E050-E0i200910-201312
SAND BEIGE,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67917-0E040-B0i200910-201312
GRAY,TRIM1#
main67917-0E040-C0i200910-201312
BLACK,TRIM2#
main67917-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
main67918-0E040-B0i200910-201312
GRAY,TRIM1#
main67918-0E040-C0i200910-201312
BLACK,TRIM2#
main67918-0E040-E0i200910-201312
SAND BEIGE,TRIM4#
67918CCLIP(FOR REAR SCUFF PLATE)
main67921-48050i200910-201008
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030i200910-201008
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67923-30030i200910-201008
67927ORNAMENT, FRONT DOOR SCUFF, RH
main67927-48050i200910-201008
67928ORNAMENT, FRONT DOOR SCUFF, LH
main67928-48050i200910-201008
7104
90159A0039
main90159-A0039
90168A0006
main90168-A0006
9046710161
main90467-10161

46 parts on this diagram · 1 diagram in section
