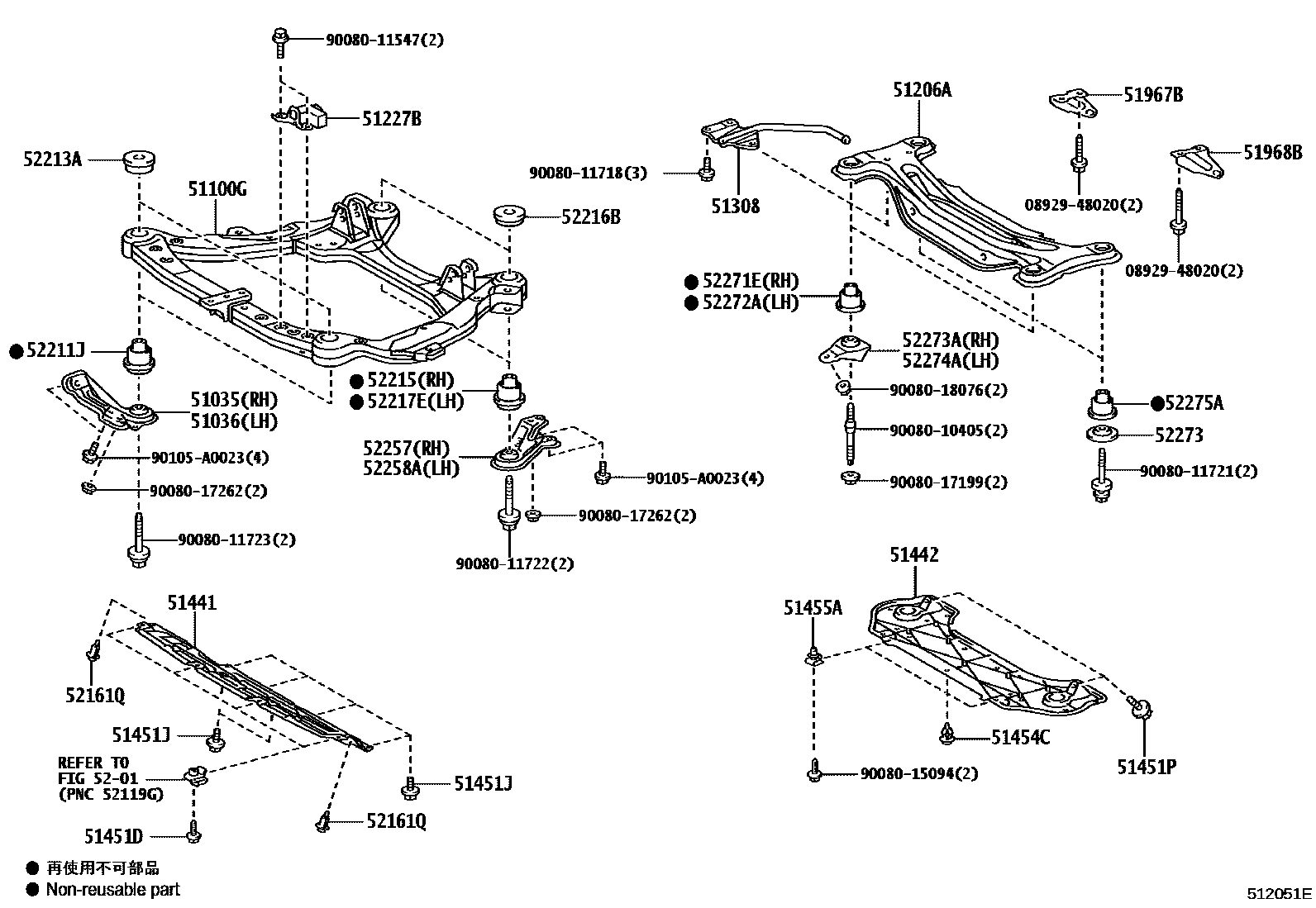

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0E030iASU40,GSU4#200910-201008

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0E030iASU40,GSU4#200910-201008

51100GFRAME ASSY, FRONT

main51100-0E030iASU40,GSU4#200910-201301

sub51100-0E031

main51100-0E031iASU40,GSU4#201302-201304

sub51100-0E032

main51100-0E032iASU40,GSU4#201305-201312

sub51100-0E033

sub90119-08D06

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E013iASU40,GSU40200910-201001

sub51206-0E014

main51206-0E014iASU40,GSU40201002-201203

main51206-0E015iASU40,GSU40201204

main51206-0E020iGSU45200910-201008

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-0E011iASU40,GSU4#201304

main51227-48031iASU40,GSU4#200910-201303

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-48022iGSU40200910-201008

main51308-48030iASU40200910-201008

51441COVER, ENGINE UNDER, NO.1

main51441-0E040iGSU4#200910-201008

main51441-0E050iASU40200910-201008

main51441-0E060iGSU4#201008

main51441-0E070iASU40201008

51442COVER, ENGINE UNDER, NO.2

main51442-0E040iASU40,GSU4#200910-201008

51451DSCREW, NO.1

main90159-60444iASU40,GSU4#200910-201008

main90159-60525iASU40,GSU4#201008-201312

51451JBOLT, NO.1

main90080-11718iASU40,GSU4#200910-201312

51451PBOLT, NO.2

main90080-11718iASU40,GSU4#200910-201312

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-0E010iASU40,GSU4#200910-201008

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-0E010iASU40,GSU4#200910-201008

51967BHOOK, TRANSPORT, REAR RH

main51967-0E040iASU40,GSU4#200910-201008

sub51967-0E010

51968BHOOK, TRANSPORT, REAR LH

main51968-0E040iASU40,GSU4#200910-201008

5201

52161QPIECE, FRONT BUMPER

main52161-02020iASU40,GSU4#200910-201312

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-0E010iASU40,GSU4#200910-201008

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-0E010iASU40,GSU4#200910-201008

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iASU40,GSU4#200910-201008

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iASU40,GSU4#200910-201008

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iASU40,GSU4#200910-201008

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-0E010iASU40,GSU4#200910-201008

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-0E011iASU40,GSU4#200910-201008

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E020iASU40,GSU40200910-201103

sub52271-0E021

main52271-0E021iASU40,GSU40201104

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iGSU45200910-201008

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-0E020iASU40,GSU40200910-201103

sub52272-0E021

main52272-0E021iASU40,GSU40201104

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-0E030iASU40,GSU40200910-201008

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-0E010iASU40,GSU40200910-201008

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-0E010iASU40,GSU40200910-201008

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050iASU40,GSU40200910-201103

sub52275-06051

main52275-06051iASU40,GSU40201104

main52275-48010iGSU45200910-201008

0892948020

main08929-48020

9008010405

main90080-10405

9008011547

main90080-11547

9008011718

main90080-11718

9008011721

main90080-11721

9008011722

main90080-11722

9008011723

main90080-11723

9008015094

main90080-15094

9008017199

main90080-17199

9008017262

main90080-17262

9008018076

main90080-18076

90105A0023

main90105-A0023

43 parts on this diagram · 3 diagrams in section
