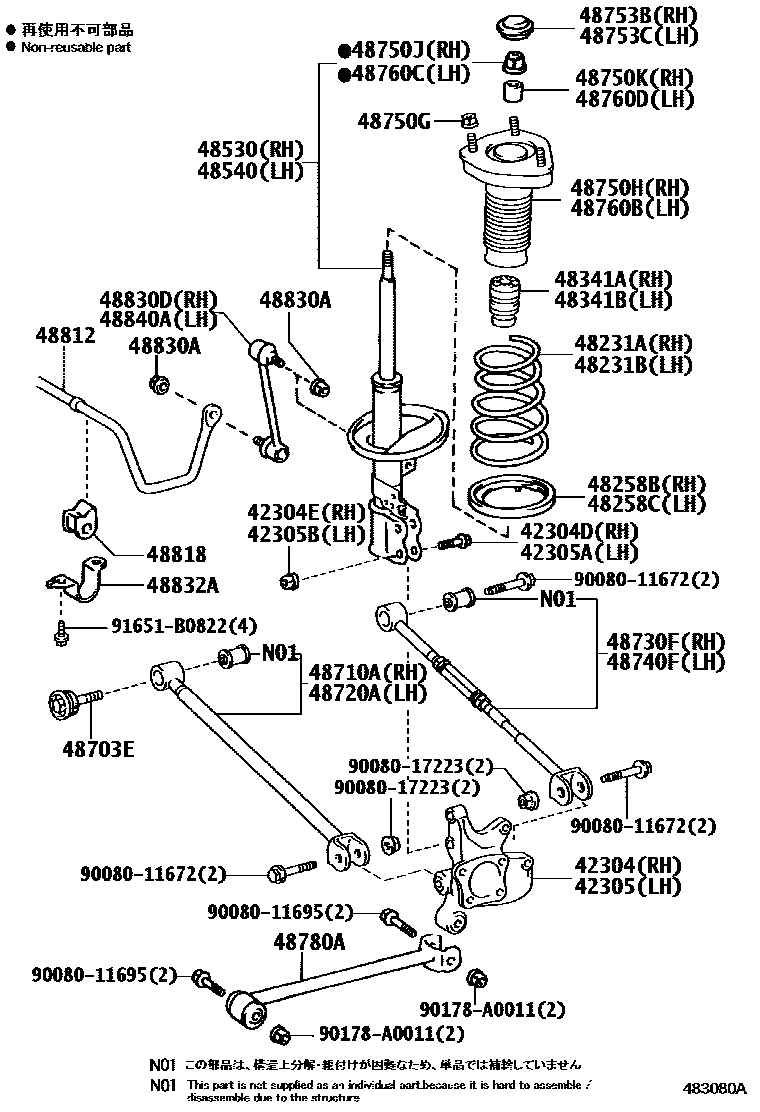

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-0E050iASU40,GSU40200910-201008

main42304-0T020iGSU45200910-201008

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-A0052iASU40,GSU4#200910-201008

42304ENUT (FOR REAR AXLE CARRIER RH)

main90178-A0027iASU40,GSU4#200910-201008

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-0E050iASU40,GSU40200910-201008

main42305-0T020iGSU45200910-201008

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-A0052iASU40,GSU4#200910-201008

42305BNUT (FOR REAR AXLE CARRIER LH)

main90178-A0027iASU40,GSU4#200910-201008

48231ASPRING, COIL, REAR RH

main48231-0E070iASU40;GSU40..LIMD,M200910-201008

MEXICO SPEC

sub48231-0E071

main48231-0E071iASU40;GSU40..LIMD201008

main48231-0E080iGSU40..SPO200910-201008

main48231-0E090iGSU40..STD200910-201008

sub48231-0E091

main48231-0E091iGSU40..STD201008

main48231-0E100iGSU45..LIMD,M200910-201008

sub48231-0E101

main48231-0E101iGSU45..LIMD201008

main48231-0E110iGSU45..SPO200910-201008

main48231-0E120iGSU45..STD200910-201008

sub48231-0E121

main48231-0E121iGSU45..STD201008

48231BSPRING, COIL, REAR LH

main48231-0E070iASU40;GSU40..LIMD,M200910-201008

MEXICO SPEC

sub48231-0E071

main48231-0E071iASU40;GSU40..LIMD201008

main48231-0E080iGSU40..SPO200910-201008

main48231-0E090iGSU40..STD200910-201008

sub48231-0E091

main48231-0E091iGSU40..STD201008

main48231-0E100iGSU45..LIMD,M200910-201008

sub48231-0E101

main48231-0E101iGSU45..LIMD201008

main48231-0E110iGSU45..SPO200910-201008

main48231-0E120iGSU45..STD200910-201008

sub48231-0E121

main48231-0E121iGSU45..STD201008

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0E010iASU40,GSU4#201110

(L)

main48258-0E010iASU40,GSU4#200910-201110

main48258-32020iASU40,GSU4#201110

(J)

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0E010iASU40,GSU4#200910-201110

main48258-0E010iASU40,GSU4#201110

(L)

main48258-32020iASU40,GSU4#201110

(J)

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0E030iASU40,GSU4#200910-201008

sub48341-48050

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0E030iASU40,GSU4#200910-201008

sub48341-48050

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-A9720iGSU40..LIMD,M,STD200910-201008

MARK 48530-0E060

main48530-A9720iGSU40..SPO200910-201008

MARK 48530-0E060,MEXICO SPEC

main48530-A9730iGSU40..SPO200910-201008

MARK 48530-0E070

main48530-A9740iASU40200910-201008

MARK 48530-0E100

main48530-A9750iGSU45200910-201008

MARK 48530-0E080

main48530-A9760iGSU45..SPO200910-201008

MARK 48530-0E090

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-A9370iGSU40..SPO200910-201008

MARK 48540-0E060,MEXICO SPEC

main48540-A9370iGSU40..SPO200910-201008

MARK 48540-0E060

main48540-A9380iGSU40..SPO200910-201008

MARK 48540-0E070

main48540-A9390iASU40200910-201008

MARK 48540-0E100

main48540-A9400iGSU45200910-201008

MARK 48540-0E080

main48540-A9410iGSU45..SPO200910-201008

MARK 48540-0E090

48703EBOLT(FOR REAR SUSPENSION ARM)

main90080-11674iASU40,GSU40200910-201008

*14-1.50PX76-36

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-48060iASU40,GSU40200910-201008

main48710-48070iGSU45200910-201008

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-48060iASU40,GSU40200910-201008

main48710-48070iGSU45200910-201008

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-0E080iASU40,GSU40200910-201008

main48730-48160iGSU45200910-201008

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-48160iGSU45200910-201008

main48740-0E050iASU40,GSU40200910-201008

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90080-17225iASU40,GSU4#200910-201008

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-48070iASU40,GSU4#200910-201008

main48750-48071iASU40,GSU4#201008

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90080-17217iASU40,GSU4#201003-201008

main90179-14015iASU40,GSU4#200910-201002

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iASU40,GSU4#200910-201008

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-06011iASU40,GSU4#200910-201008

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-06011iASU40,GSU4#200910-201008

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-48050iASU40,GSU4#200910-201008

main48760-48051iASU40,GSU4#201008

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90080-17217iASU40,GSU4#201003-201008

main90179-14015iASU40,GSU4#200910-201002

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iASU40,GSU4#200910-201008

48780AROD ASSY, STRUT, REAR

main48780-48070iGSU40200910-201008

main48780-48081iGSU45200910-201008

main48780-48100iASU40200910-201008

sub48780-48070

48812BAR, STABILIZER, REAR

main48805-48130iGSU45201104-201110

main48805-48140iGSU45200910-201104

sub48805-48130

main48812-48170iASU40,GSU40200910-201008

48818BUSH, STABILIZER, REAR

main48818-48010iASU40,GSU40200910-201008

main48818-48030iGSU45200910-201008

48830ANUT(FOR REAR STABILIZER LINK)

main90080-17227iASU40,GSU4#200910-201008

48830DLINK ASSY, REAR STABILIZER, RH

main48830-06030iASU40,GSU4#200910-201008

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-0E010iASU40,GSU40200910-201008

main48832-48020iGSU45200910-201008

48840ALINK ASSY, REAR STABILIZER, LH

main48830-06030iASU40,GSU4#200910-201008

9008011672

main90080-11672

9008011695

main90080-11695

9008017223

main90080-17223

90178A0011

main90178-A0011

91651B0822

main91651-B0822

40 parts on this diagram · 2 diagrams in section
