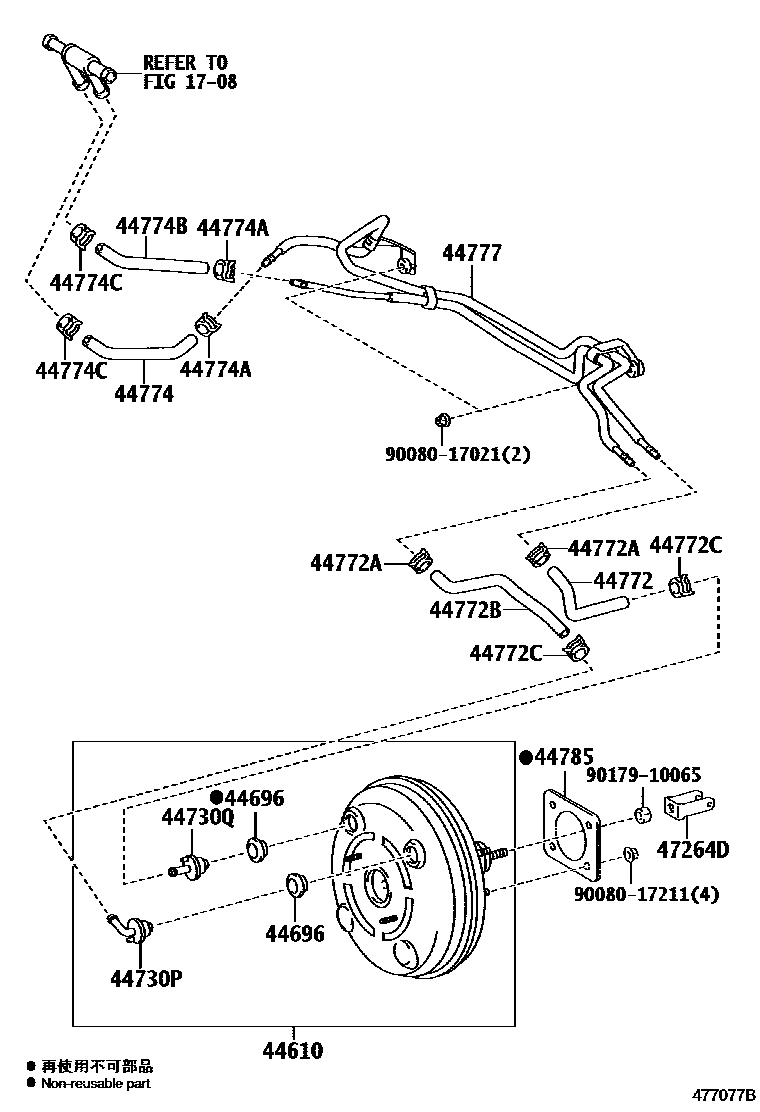

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1708

44610BOOSTER ASSY, BRAKE

main44610-0E060iGSU4#200910-201008

main44610-0E070iASU40200910-201008

44696GROMMET, CHECK VALVE

main90080-48071iASU40200910-201008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGSU4#200910-201202

main44730-60070iGSU4#201202

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-12040iASU40200910-201008

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-20080iASU40200910-201008

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-48060iASU40200910-201008

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iASU40200910-201008

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-48070iASU40200910-201008

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iASU40200910-201008

44774HOSE, UNION TO CONNECTOR TUBE

main44774-48050iASU40200910-201008

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iASU40200910-201008

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-48060iASU40200910-201008

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iASU40200910-201008

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-48060iASU40200910-201008

44785GASKET, BRAKE BOOSTER

main44785-07010iASU40,GSU4#200910-201008

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iASU40,GSU4#201204

main47264-48020iASU40,GSU4#200910-201204

9008017021

main90080-17021

9008017211

main90080-17211

9017910065

main90179-10065

20 parts on this diagram · 2 diagrams in section
