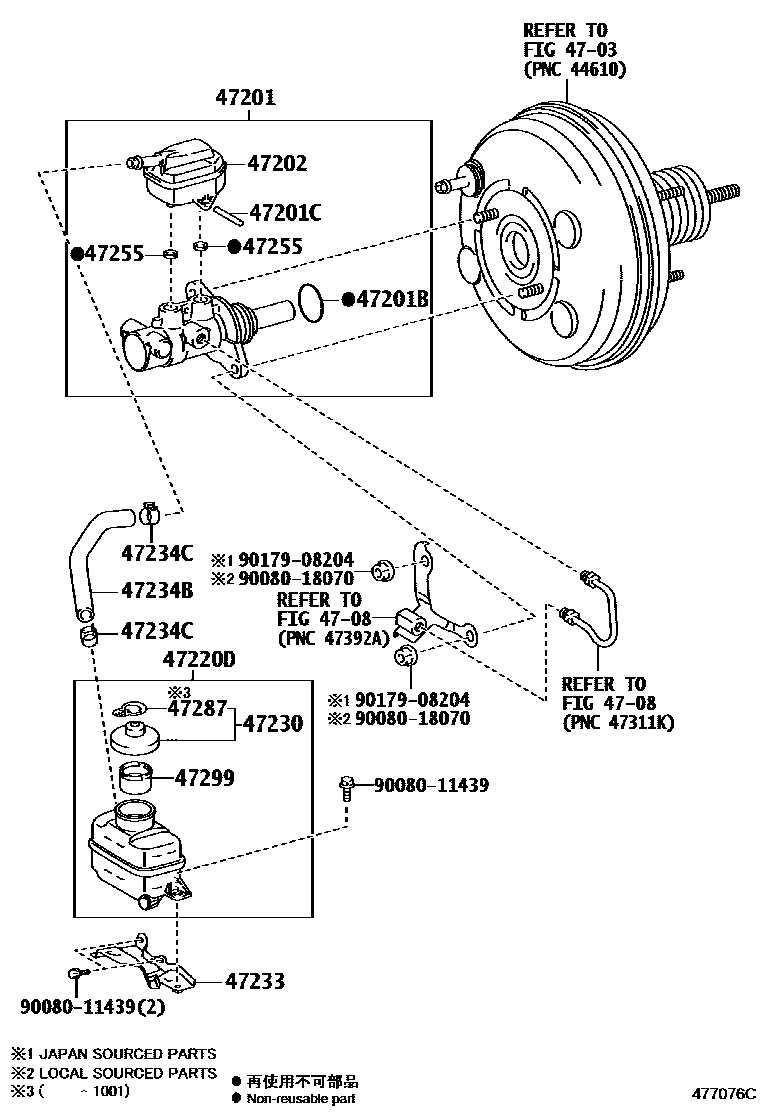

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48200iASU40,GSU4#200910-201205

sub47201-48201

main47201-48202iASU40,GSU4#201206

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASU40,GSU4#200910-201008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASU40,GSU4#200910-201008

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iASU40,GSU4#200910-201008

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0E060iASU40,GSU4#200910-201008

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iASU40,GSU4#201001-201008

sub47230-01031

main47230-02270iASU40,GSU4#200910-201001

sub47230-02271

47233BRACKET, RESERVOIR

main47233-0E020iASU40,GSU4#200910-201008

47234BTUBE, RESERVOIR, NO.1

main47234-0E030iASU40,GSU4#200910-201008

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90080-46354iASU40,GSU4#200910-201202

main90466-A0013iASU40,GSU4#201203

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASU40,GSU4#200910-201008

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iASU40,GSU4#200910-201001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASU40,GSU4#200910-201008

9008011439

main90080-11439

9008018070

main90080-18070

9017908204

main90179-08204

17 parts on this diagram · 1 diagram in section
