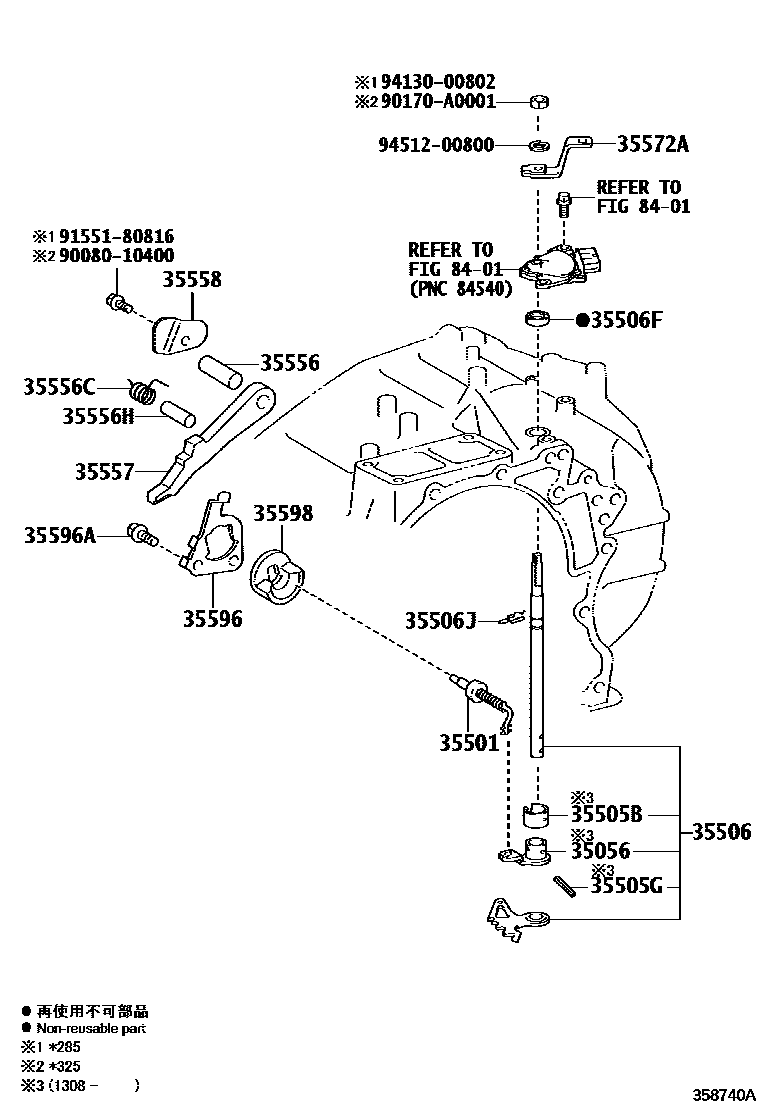

THROTTLE LINK & VALVE LEVER (ATM)
35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35501ROD SUB-ASSY, PARKING LOCK
35505LEVER SUB-ASSY, MANUAL VALVE
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
*285
*325
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
*285
*325
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
*285
*325
35556SHAFT, PARKING LOCK PAWL
*325
*285
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
*285
*325
35556HSHAFT, PARKING LOCK PAWL
*285
*325
35557PAWL, PARKING LOCK
35558CLAMP, PAWL SHAFT
*325
*285
35572ALEVER, TRANSMISSION CONTROL SHAFT
*325
*285
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5,*325
*8-1.25PX16-13.5
*8-1.25PX16-13.5,*285
35598SLEEVE, PARKING LOCK
*325
*285
8401
9008010400
90170A0001
main90170-A0001
9155180816
9413000802
9451200800
23 parts on this diagram · 2 diagrams in section
