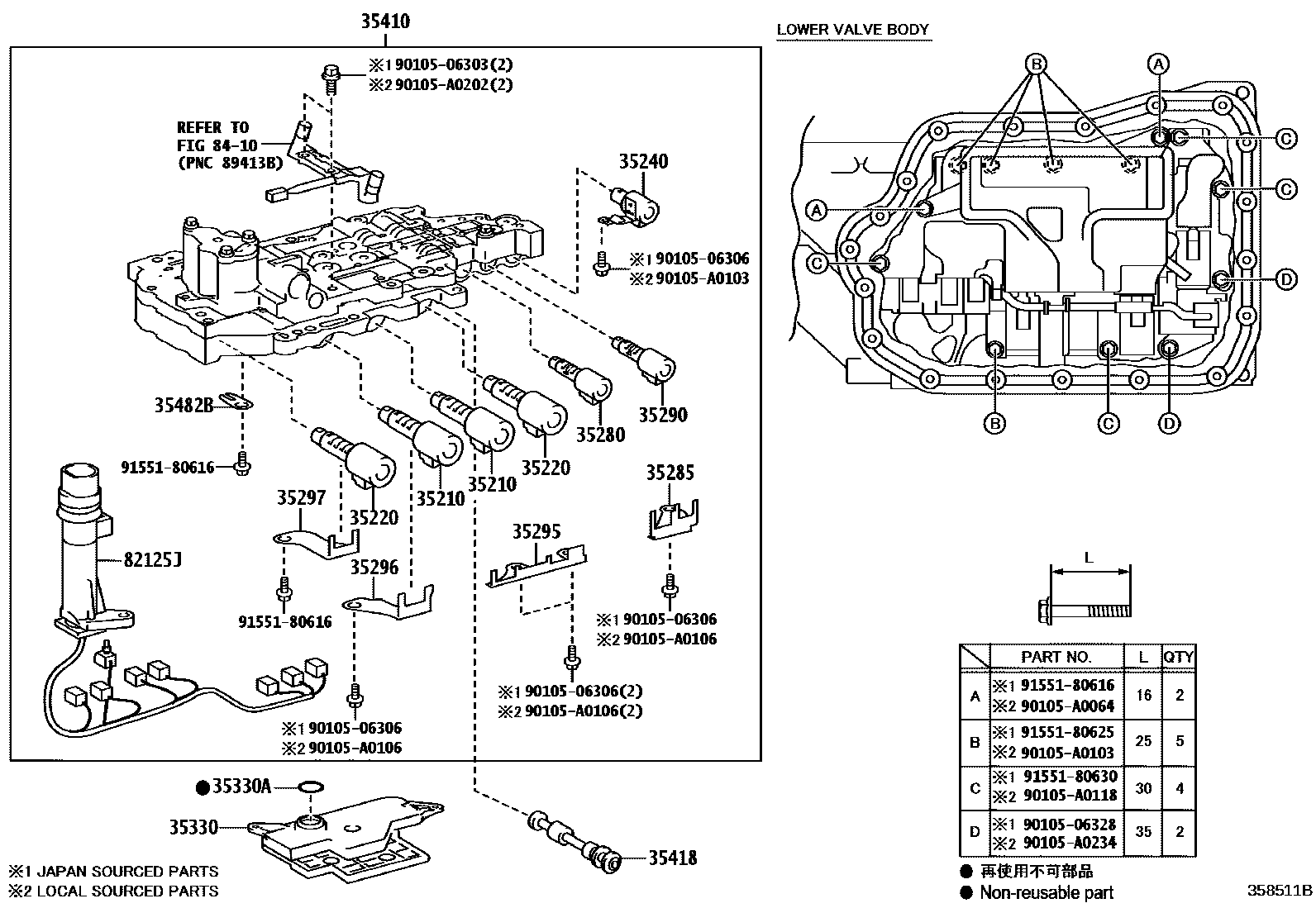

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E 0002 1U151E,U151F 0003 1U760E 0004 1U151E,U151F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33020iGSU4#200910-201008

main35210-73010iASU40200910-201008

sub35210-33030

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33020iGSU4#200910-201008

main35220-73010iASU40200910-201008

sub35220-48020

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-33030iGSU4#200910-201008

main35240-73010iASU40200910-201008

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASU40201106

main35280-52040iASU40200910-201106

35285PLATE, SOLENOID LOCK

main35285-06010iASU40201308

*325

main35285-33030iGSU4#200910-201008

main35285-33070iASU40200910-201008

main35285-33070iASU40201008

*285

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33020iGSU4#200910-201008

main35290-33040iASU40200910-201008

35295PLATE, SOLENOID LOCK, NO.2

main35295-06010iASU40201308

*325

main35295-33010iGSU4#200910-201008

main35295-33050iASU40200910-201008

main35295-33050iASU40201008

*285

35296PLATE, SOLENOID LOCK, NO.3

main35296-06010iASU40201308

*325

main35296-33010iGSU4#200910-201008

main35296-33050iASU40201008

*285

main35296-33050iASU40200910-201008

35297PLATE, SOLENOID LOCK, NO.4

main35297-06010iASU40201308

*325

main35297-33020iASU40201008

*285

main35297-33020iASU40200910-201008

35330STRAINER ASSY, VALVE BODY OIL

main35330-08010iGSU4#200910-201008

main35330-0R010iASU40201308

*325

main35330-73010iASU40200910-201008

main35330-73010iASU40201008

*285

35330ARING, O (FOR OIL STRAINER)

main90301-27010iASU40200910-201108

main90301-27015iASU40201108-201308

main90301-27015iASU40201308

*285

main90301-A0026iASU40201308

*325

35410BODY ASSY, TRANSMISSION VALVE

main35410-0R010iASU40201308

*325

sub35410-06020

main35410-33210iASU40200910-201106

sub35410-33260

main35410-33260iASU40201106

*285

main35410-48020iGSU4#200910-201008

35418VALVE, MANUAL

main35418-33010iGSU4#200910-201008

main35418-73010iASU40200910-201008

35482BCLAMP, TEMPERATURE SENSOR

main35482-06020iASU40201308

*325

main35482-73010iASU40201106

*285

main35482-73010iASU40200910-201106

82125JWIRE, TRANSMISSION

main82125-48010iGSU4#200910-201312

main82125-73010iASU40200910-201312

sub82125-73011

8410

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

90105A0064

main90105-A0064

90105A0103

main90105-A0103

90105A0106

main90105-A0106

90105A0118

main90105-A0118

90105A0202

main90105-A0202

90105A0234

main90105-A0234

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

28 parts on this diagram · 4 diagrams in section
