PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

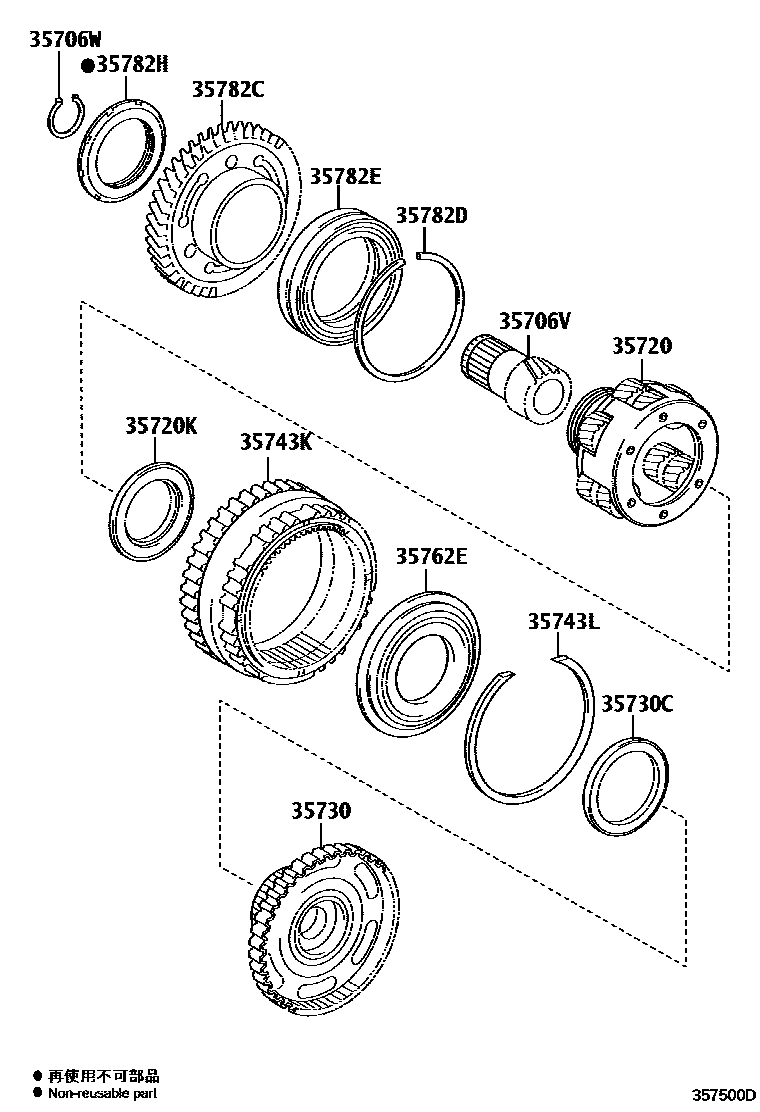

Parts diagram

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-73010i200910-201008

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032i200910-201312

35720GEAR ASSY, FRONT PLANETARY

main35720-28070i200910-201008

main35720-33050i200910-201008

main35720-33050i201008

*285

main35720-73010i201308

*325

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62004i200910-201008

main90374-62004i201008

*285

main90374-A0035i201308

*325

35730GEAR ASSY, REAR PLANETARY SUN

main35730-06010i201308

*325,(L)

main35730-33011i200910-201008

main35730-33030i201308

*325,(J)

main35730-33030i200910-201008

main35730-33030i201008

*285

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001i200910-201008

main90374-61001i201008

*285

main90374-A0029i201308

*325

35743GEAR, FRONT PLANETARY RING

main35743-28010i200910-201008

35743KGEAR, PLANETARY RING

main35743-33040i201008

*285

main35743-33040i200910-201008

main35743-73010i201308

*325

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108i200910-201008

main90520-99108i201008-201312

*285

main90520-A0016i201308-201312

*325

35762EFLANGE, PLANETARY RING GEAR

main35762-73010i200910-201008

35782CGEAR, COUNTER DRIVE

main35782-0R010i201308

*325

main35782-33020i200910-201008

main35782-33040i200910-201008

main35782-33040i201008

*285

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-87004i200910-201312

NO.1

main90520-89004i200910-201312

NO.2

main90520-99110i201008-201312

*285

main90520-99110i200910-201008

main90520-A0009i201308-201312

*325

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-59001i200910-201312

main90369-72001i200910-201008

main90369-72001i201008-201312

*285

main90369-A0005i201308-201312

*325

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001i200910-201008

14 parts on this diagram · 2 diagrams in section
