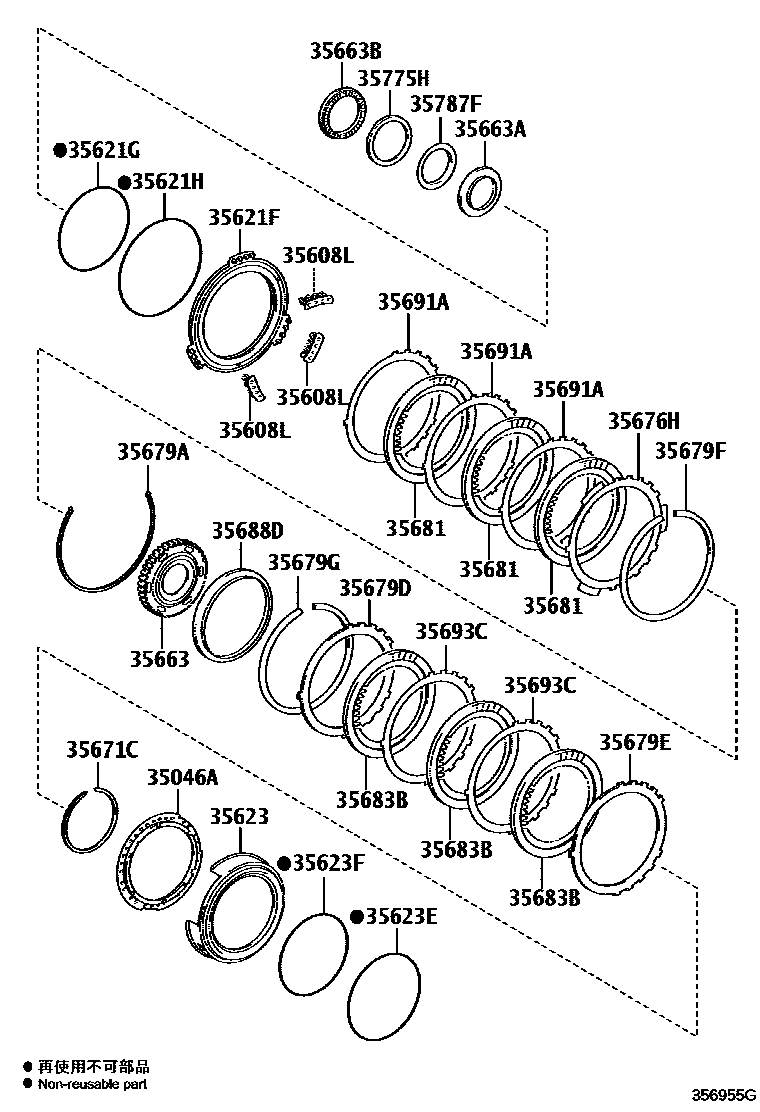

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35046ASPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
*325
*285
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
*325
*285
35621FPISTON, BRAKE, NO.1
*325
35621GRING, O (FOR BRAKE PISTON INNER)
*285
*325
35621HRING, O (FOR BRAKE PISTON OUTER)
*325
*285
35623PISTON, BRAKE, NO.3
*325
35623ERING, O, NO.1 (FOR BRAKE PISTON)
*285
*325
35623FRING, O, NO.2 (FOR BRAKE PISTON)
35663HUB, BRAKE NO.3
*285
35663ABEARING, THRUST NEEDLE ROLLER, NO.1
*285
*325
35663BBEARING, THRUST NEEDLE ROLLER, NO.2
*325
35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
*285
*325
35676HFLANGE, BRAKE, NO.1
T=3.0,MARK 30,*285
T=3.0,MARK 30
T=3.1,MARK 31
T=3.1,MARK 31,*285
T=3.2,MARK 32,*285
T=3.2,MARK 32
T=3.3,MARK 33
T=3.3,MARK 33,*285
T=3.4,MARK 34
T=3.4,MARK 34,*285
T=3.5,MARK 35
T=3.5,MARK 35,*285
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
*285
*325
35679DFRANGE, BRAKE, NO.2
*325
*285
35679EFRANGE, BRAKE, NO.3
T=3.8,MARK 38,*325
T=3.9,MARK 39,*325
T=4.0,MARK 40,*325
T=4.1,MARK 41,*325
T=4.2,MARK 42,*325
T=4.3,MARK 43,*325
T=3.8,MARK 38
T=3.8,MARK 38,*285
T=3.9,MARK 39
T=3.9,MARK 39,*285
T=4.0,MARK 40,*285
T=4.0,MARK 40
T=4.1,MARK 41,*285
T=4.1,MARK 41
T=4.2,MARK 42,*285
T=4.2,MARK 42
T=4.3,MARK 43,*285
T=4.3,MARK 43
35679FRING, SNAP(FOR BRAKE FLANGE)
35679GRING, SNAP (FOR RAKE FLANGE NO.3)
35681DISC, BRAKE, NO.1
*325
*285
35683BDISC, BRAKE, NO.3
*325
*285
35688DSTOPPER, BRAKE SNAP RING
35691APLATE, BRAKE, NO.1
*325
*285
35693CPLATE, BRAKE, NO.3
*325
*285
35775HRACE, THRUST BEARING, NO.5
*325
35787FRACE, THRUST BEARING, NO.2
*325
*285
25 parts on this diagram · 2 diagrams in section
