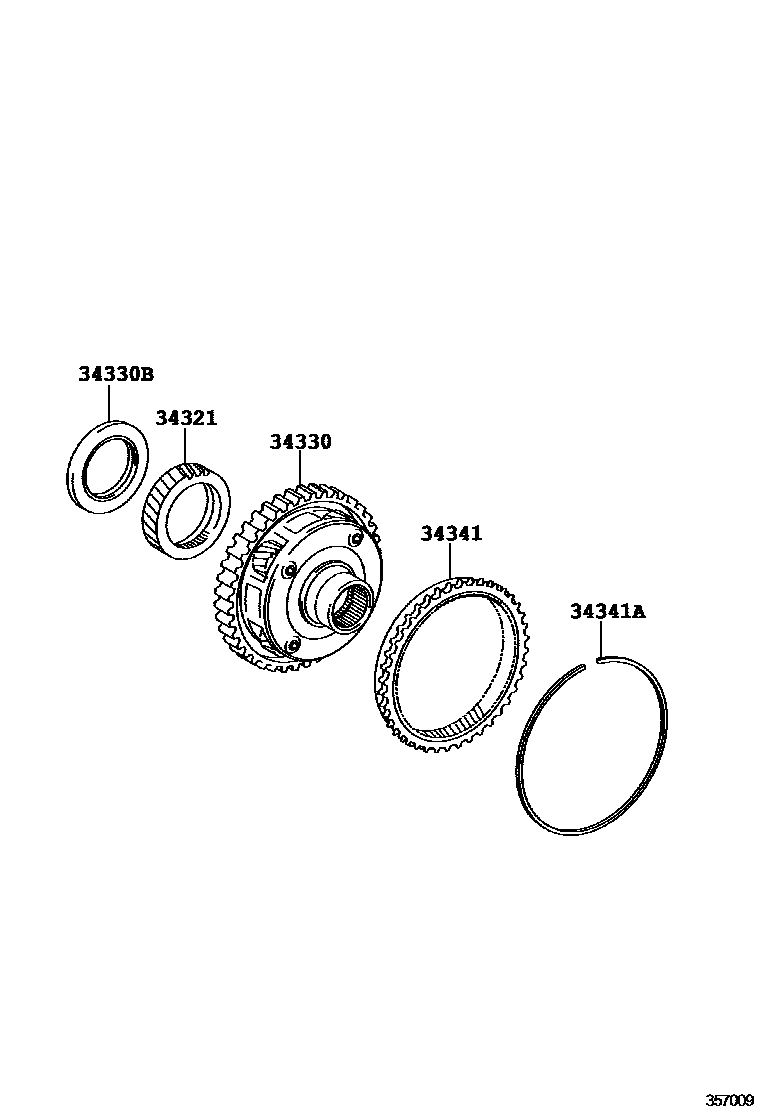

OVERDRIVE GEAR (ATM)

0001 1U760E 0002 1U151E,U151F

34321GEAR, UNDERDRIVE PLANETARY SUN

main34321-73010iASU40200910-201008

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-07020iASU40201309

sub34330-33040

main34330-0R010iASU40201308-201309

*325

sub34330-07020

main34330-33020iGSU4#200910-201008

main34330-33050iASU40200910-201008

main34330-33050iASU40201008

*285

34330BBEARING, THRUST NEEDLE ROLLER

main90374-57003iASU40200910-201008

main90374-57003iASU40201008

*285

main90374-A0039iASU40201308

*325

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-0R010iASU40201308

*325,(L)

sub34341-33030

main34341-33020iGSU4#200910-201008

main34341-33040iASU40200910-201008

main34341-33040iASU40201008

*285

main34341-33050iASU40201308-201309

*325,(J)

sub34341-33040

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90520-99104iASU40200910-201008

main90520-99104iASU40201008

*285

main90520-A0010iASU40201308

*325

main90521-99120iGSU4#200910-201008

5 parts on this diagram · 2 diagrams in section
