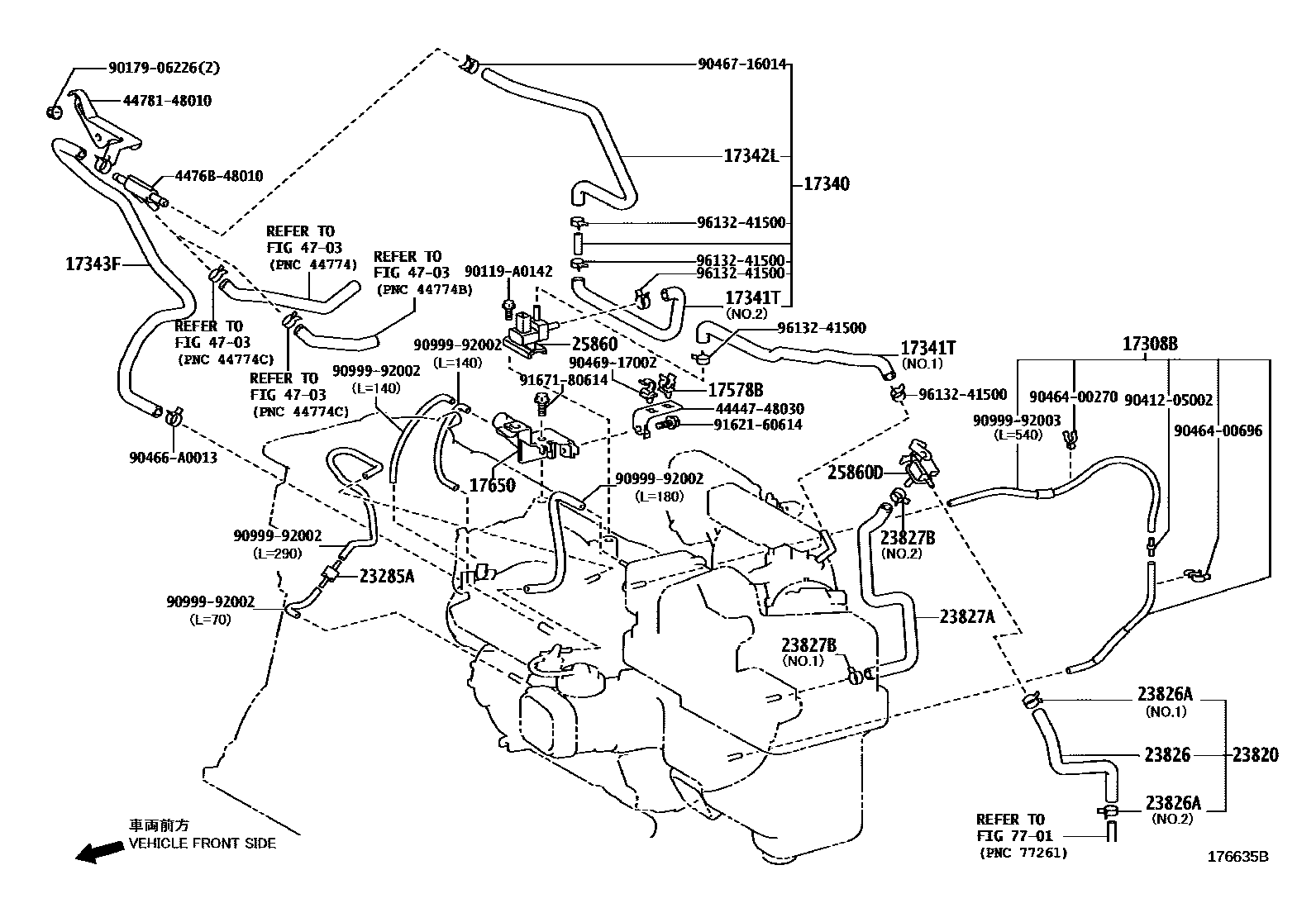

VACUUM PIPING
17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308BHOSE SUB-ASSY, VACUUM
17340HOSE ASSY, VACUUM SWITCHING VALVE
17341THOSE, AIR, NO.1
NO.1
NO.2
17342LHOSE, AIR, NO.2
17343FHOSE, AIR, NO.3
17578BCLAMP, PIPE
17650VALVE ASSY, VACUUM SWITCHING
*212
*107
23285AVALVE, CHECK, NO.1
*107
*212
23820HOSE ASSY, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1
NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1
NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
4703
7701
4444748030BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
main44447-48030
4476B48010EJECTOR, BRAKE BOOSTER VACUUM
main4476B-48010
4478148010BRACKET, HOSE
main44781-48010
90119A0142
main90119-A0142
9017906226
main90179-06226
9041205002
main90412-05002
9046400270
main90464-00270
9046400696
main90464-00696
90466A0013
main90466-A0013
9046716014
main90467-16014
9046917002
main90469-17002
9099992002
main90999-92002
9099992003
main90999-92003
9162160614
main91621-60614
9167180614
main91671-80614
9613241500
main96132-41500
34 parts on this diagram · 2 diagrams in section
