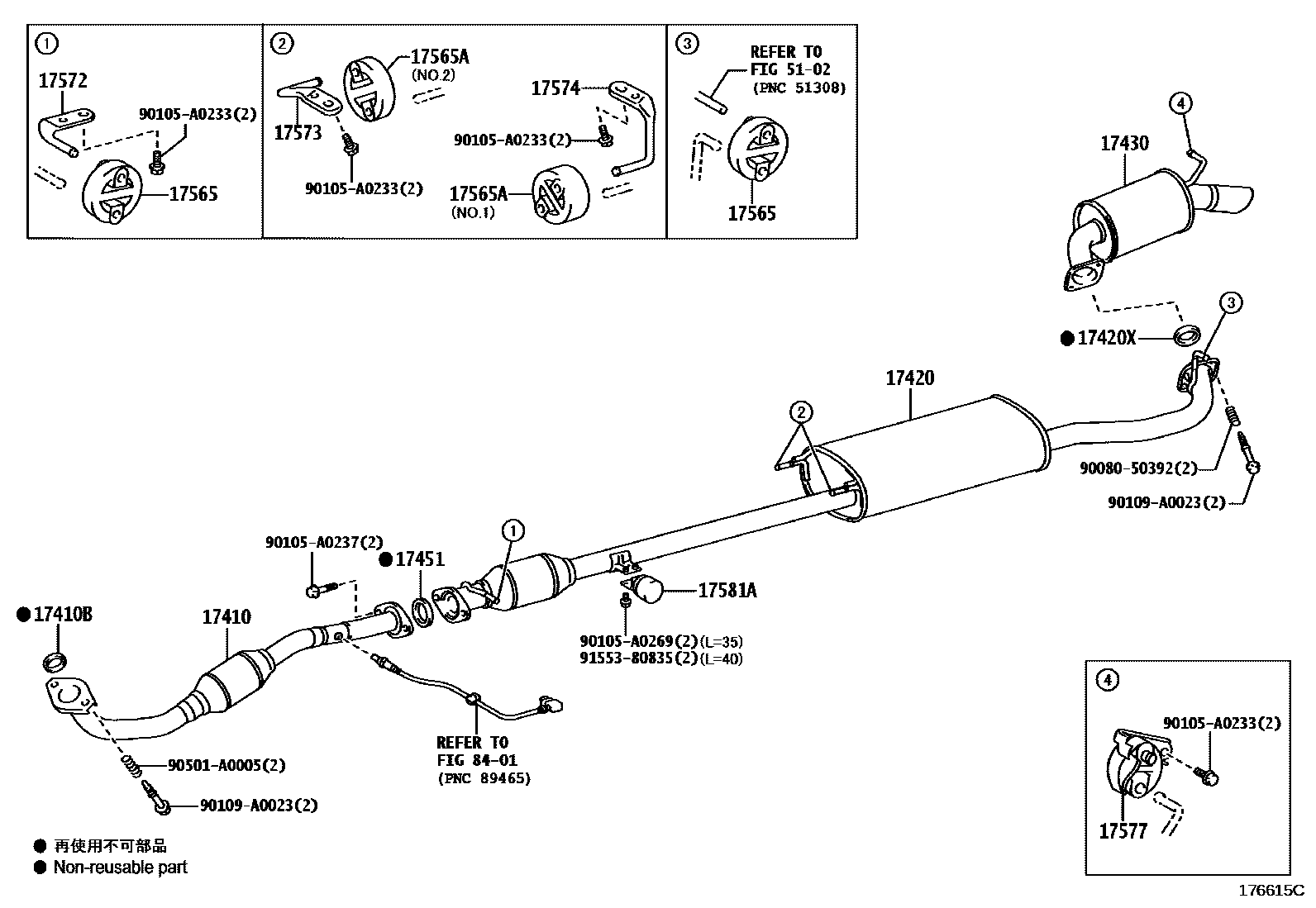

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
NO.2
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
17581ADAMPER, EXHAUST PIPE
5102
8401
9008050392
main90080-50392
90105A0233
main90105-A0233
90105A0237
main90105-A0237
90105A0269
main90105-A0269
90109A0023
main90109-A0023
90501A0005
main90501-A0005
9155380835
main91553-80835
22 parts on this diagram · 2 diagrams in section
