ENGINE OIL PUMP

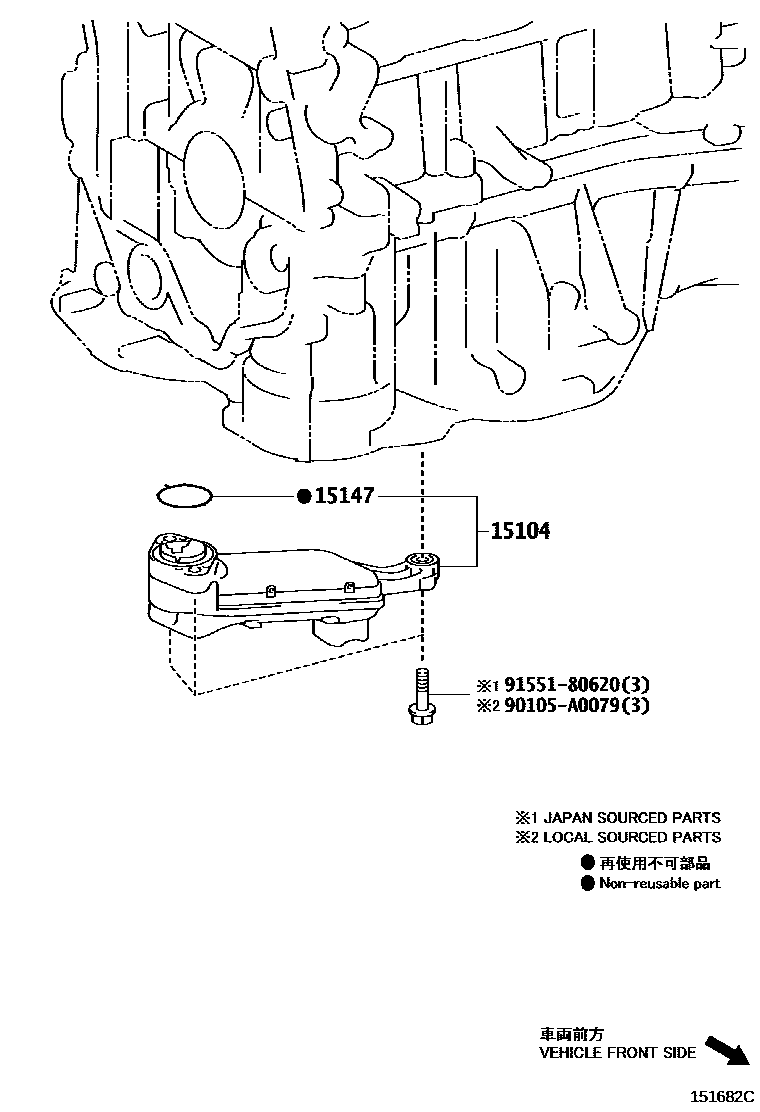

Parts diagram

15104STRAINER SUB-ASSY, OIL

main15104-31120i¥5,100200910-201008

main15104-36020i¥1,980201109

*212

main15104-36020i¥1,980200910-201008

main15104-36020i¥1,980201008

*107

15147GASKET, OIL STRAINER

main15147-0P020i200910-201008

(L)

main15147-31060i¥270200910-201004

(J)

main15147-36010i¥340201008

*107

main15147-36010i¥340200910-201008

main15147-36010i¥340201109

*212

90105A0079

main90105-A0079

9155180620

main91551-80620¥60

4 parts on this diagram · 2 diagrams in section
