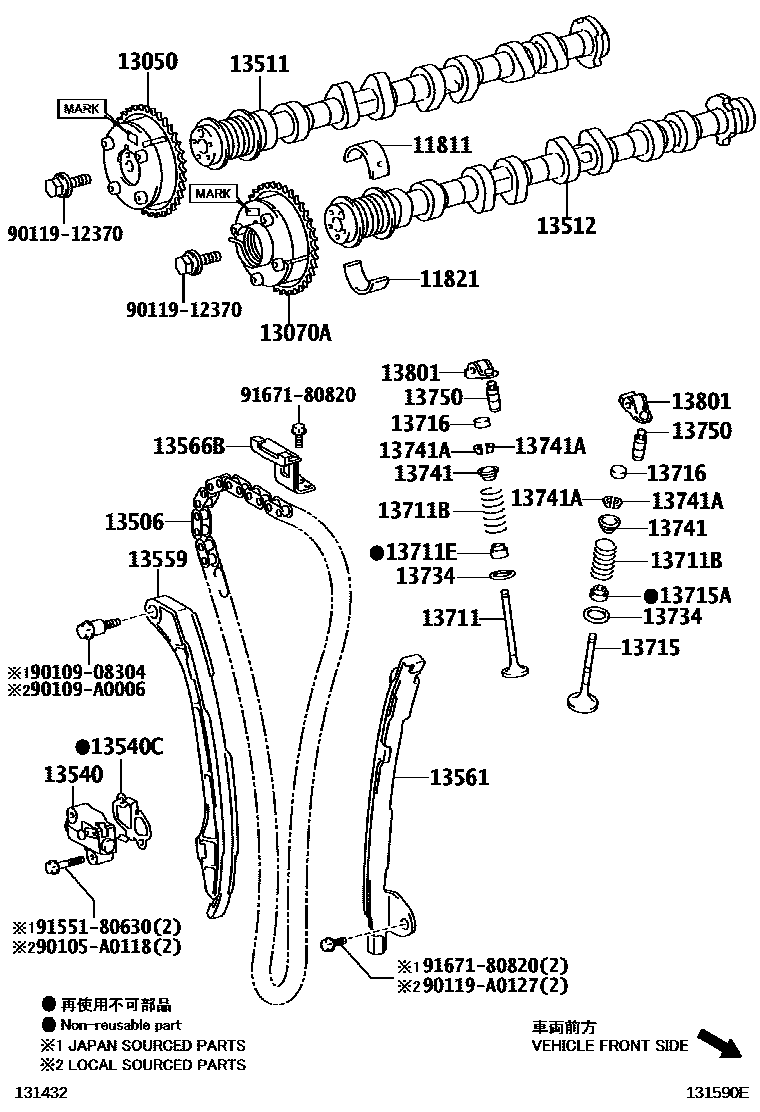

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
(L),*212
*107
(J),*212
11821BEARING, CAMSHAFT, NO.2
(L),*212
(J),*212
*107
13050GEAR ASSY, CAMSHAFT TIMING
(L)
*212,MARK13050-0V011
*212,MARK13050-0V040
(J)
sub13050-36011
*107,MARK13050-36011
*107,MARK13050-36030
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*212,MARK13070-0V013
*212,MARK13070-0V040
sub13070-36011
*107,MARK13070-36011
*107,MARK13070-36030
13506CHAIN SUB-ASSY
(L)
*212
(J)
*107
13540CGASKET(FOR CHAIN TENSIONER)
*212
*107
13559SLIPPER, CHAIN TENSIONER
(L)
*212
(J)
*107
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
*212
(J)
*107
13711VALVE, INTAKE
(L)
(J)
*107
(J),*212
13711ESEAL, INTAKE VALVE STEM OIL
*212
(L)
*107
(J)
13715VALVE, EXHAUST
(L)
(L),*212
*212
(J)
*107
(J),*212
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
*212
(J)
*107
13716CAP, VALVE STEM
*107
*212
13734SEAT, VALVE SPRING
(L)
*212
(J)
*107
13741RETAINER, VALVE SPRING
(L)
(L),*212
*107
(J),*212
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(J),*212
*107
(L),*212
(L)
13750ADJUSTER ASSY, VALVE LASH
(J)
*107
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
*212
(J)
*107
90105A0118
main90105-A0118
9010908304
main90109-08304
90109A0006
main90109-A0006
9011912370
main90119-12370
90119A0127
main90119-A0127
9155180630
main91551-80630
9167180820
main91671-80820
30 parts on this diagram · 2 diagrams in section
