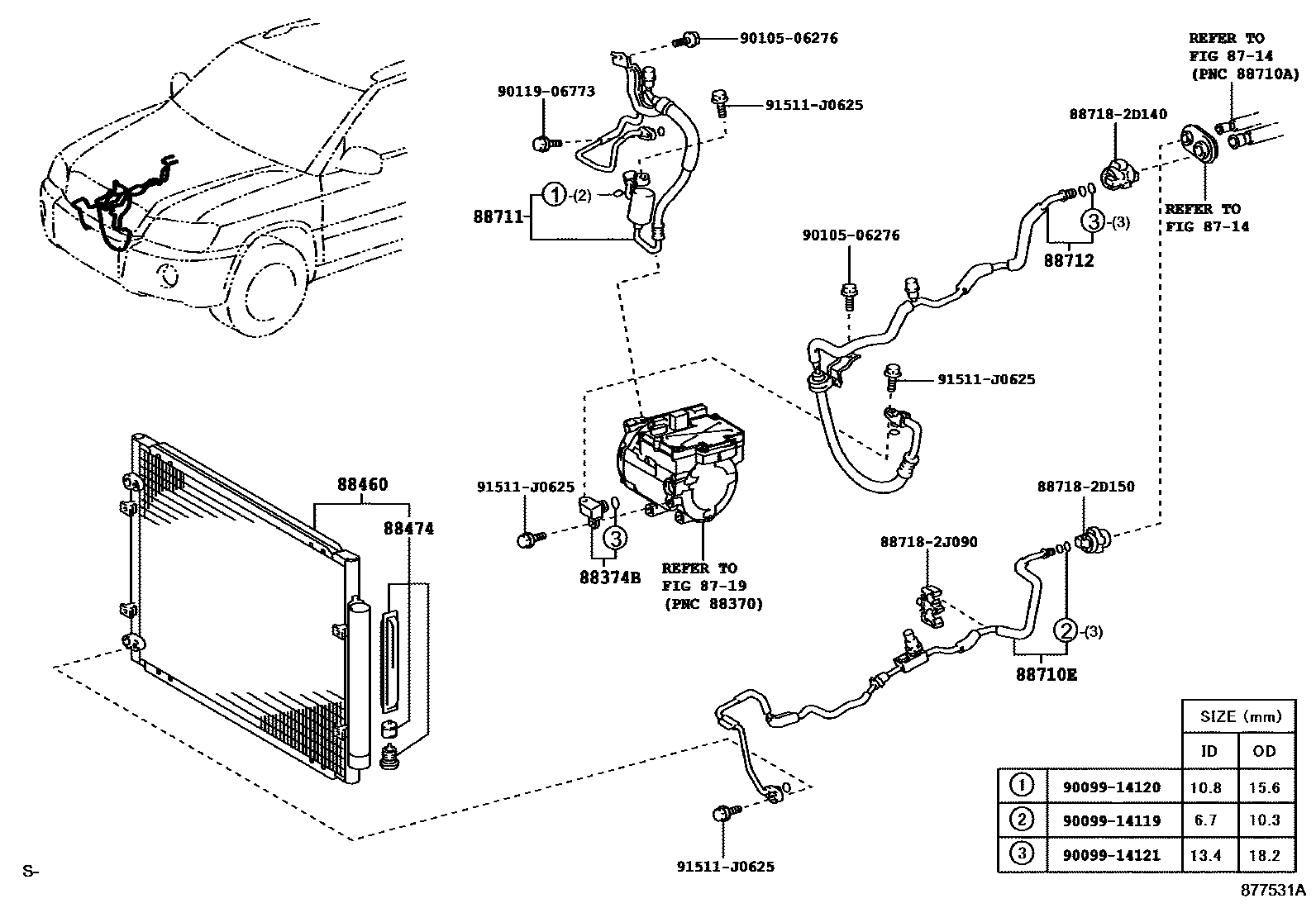

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-48010iMHU2#200503

88460CONDENSER ASSY, COOLER

main88460-48060iMHU2#200503-200609

sub88460-48061

main88460-48061iMHU2#200610-200705

88474DRYER, COOLER

main88474-47020iMHU2#200503

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48190iMHU2#200503

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48100iMHU2#200503

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-48070iMHU2#200503

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506276

main90105-06276

9011906773

main90119-06773

91511J0625

main91511-J0625

17 parts on this diagram · 1 diagram in section
