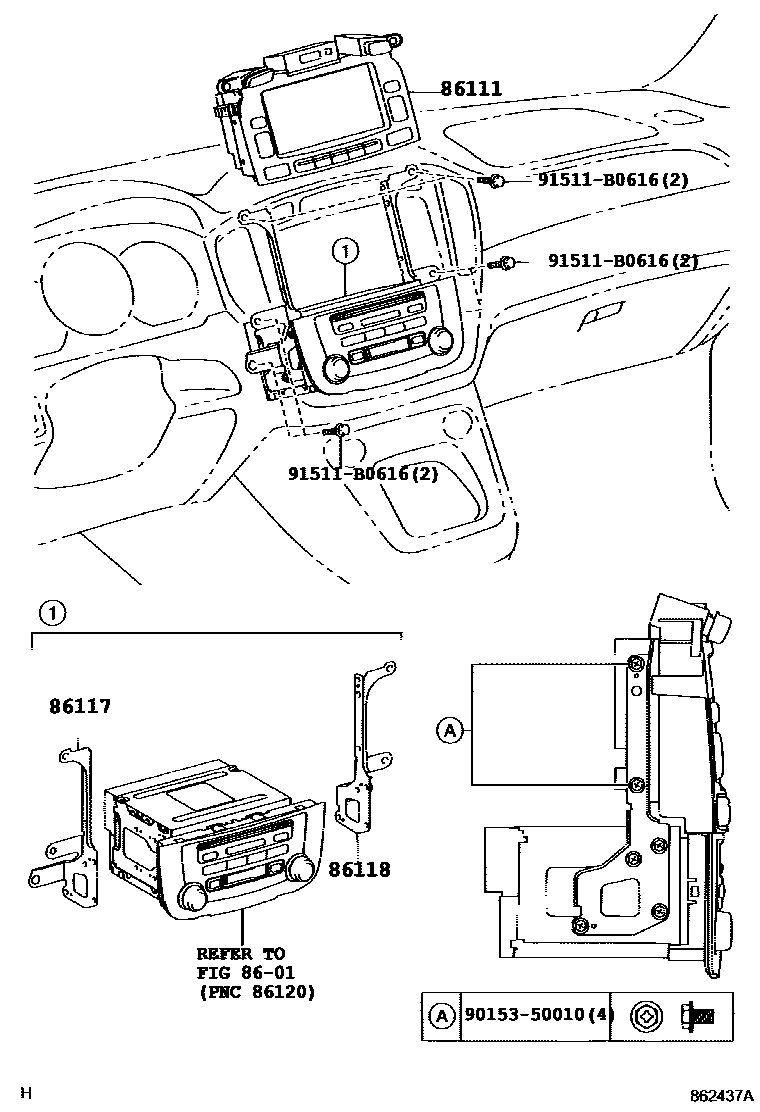

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86111MULTI-DISPLAY

main86111-48090iMHU23200503-200705

DENSO,W(DVD NAVIGATION.EMV)

main86111-48100iMHU28200503-200705

DENSO,W(DVD NAVIGATION.EMV)

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-48050iMHU2#200503-200705

W(DVD NAVIGATION.EMV)

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-48040iMHU2#200503-200705

W(DVD NAVIGATION.EMV)

9015350010

main90153-50010

91511B0616

main91511-B0616

6 parts on this diagram · 2 diagrams in section
