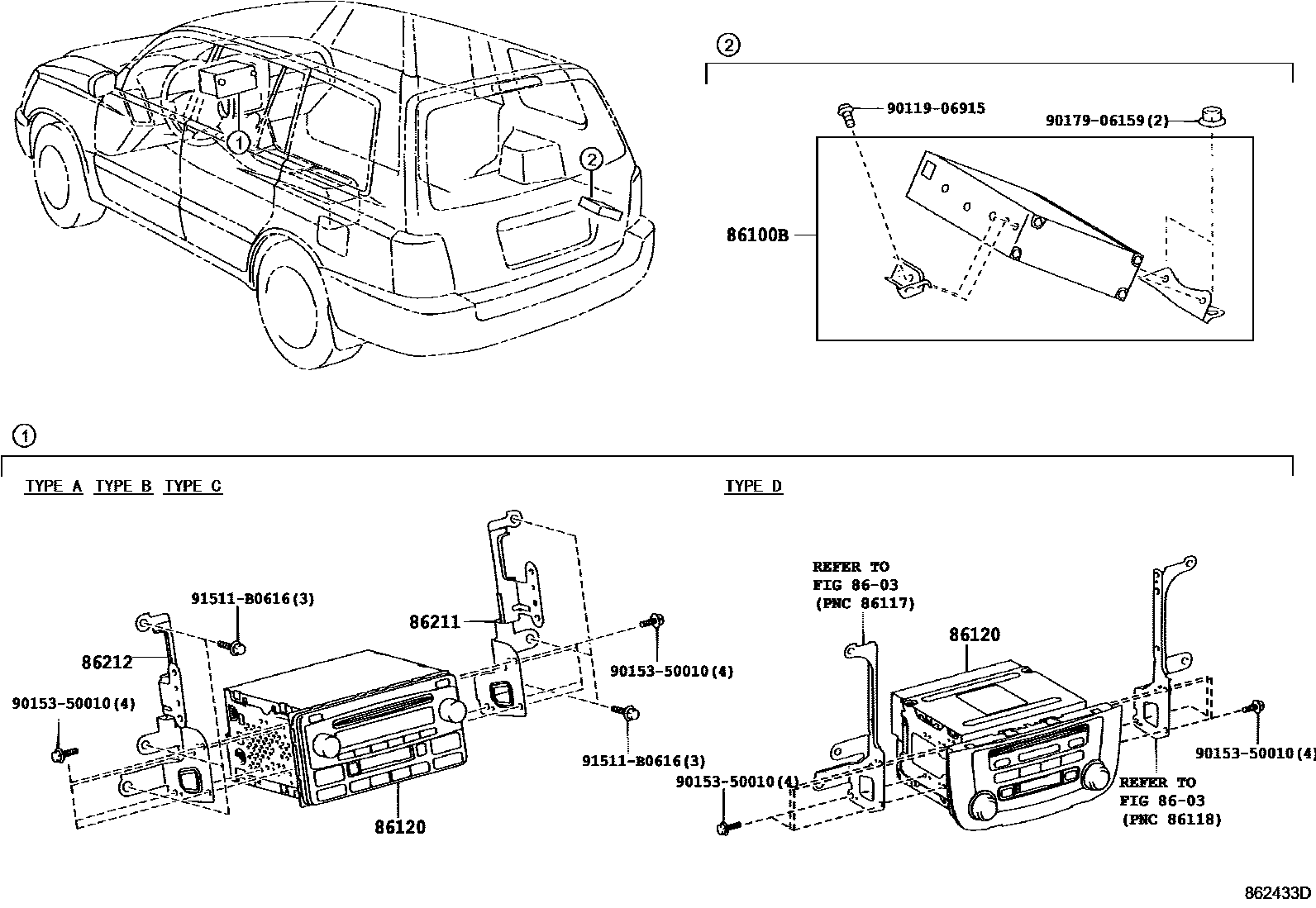

RADIO RECEIVER & AMPLIFIER & CONDENSER

8603

86100BAMPLIFIER ASSY

86120RECEIVER ASSY, RADIO

main86120-48430i200503-200705

MATSUSHITA,ID=A56832,AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL)

main86120-48480i200503-200705

MATSUSHITA,ID=A56833,AUDIO-AM/FM/CASSETTE/CD-CHANGER 8SPEAKER(JBL)&W(DVD NAVIGATION.EMV)

main86120-48500i200503-200705

FUJITSU TEN,ID=16833,AUDIO-AM/FM/CASSETTE/CD 8SPEAKER(JBL)

main86120-52241i200503-200705

FUJITSU TEN,ID=16842

86211BRACKET, RADIO, NO.1

main86211-48040i¥820200503

W(DVD NAVIGATION.EMV)

86212BRACKET, RADIO, NO.2

main86212-48040i¥820200503

W(DVD NAVIGATION.EMV)

9011906915

9015350010

9017906159

91511B0616

9 parts on this diagram · 4 diagrams in section
