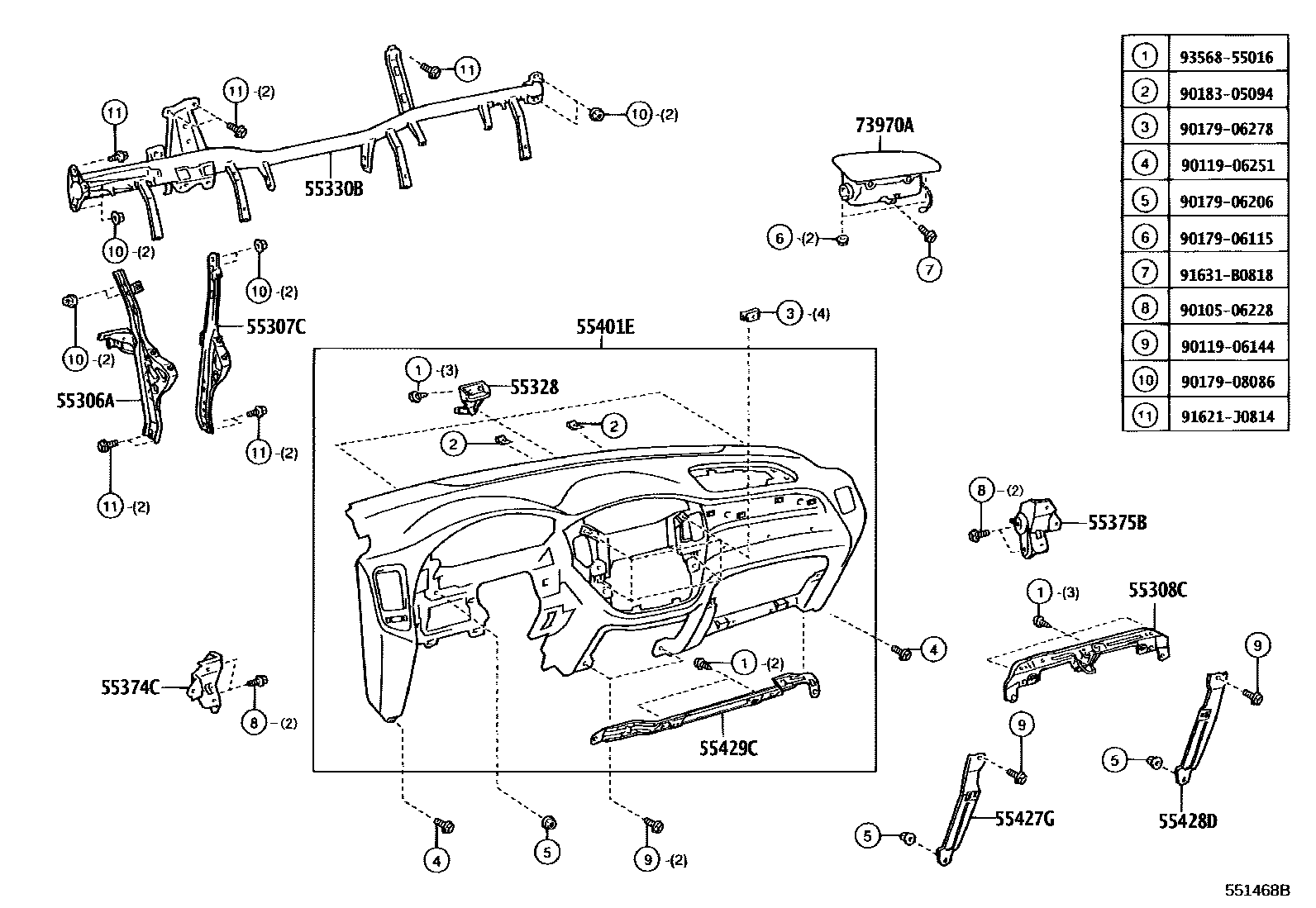

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48080iMHU2#200503

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48080iMHU2#200503

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-48040iMHU2#200503

55328PIN, INSTRUMENT PANEL, NO.1

main55346-48010iMHU2#200503

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48151iMHU2#200503-200705

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-48030iMHU2#200503

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-48030iMHU2#200503

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55301-48060-B0iMHU2#200503-200705

SADDLE GRAY,TRIM1#

main55301-48060-E0iMHU2#200503-200705

SANDAL WOOD,TRIM0#

55427GBRACKET, AIRBAG PASSENGER MOUNTING, NO.1

main55427-48030iMHU2#200503

55428DRETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2

main55428-48020iMHU2#200503

55429CRETAINER, INSTRUMENT PANEL FINISH PANEL, LOWER NO.3

main55429-48010iMHU2#200503

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-48060-B0iMHU2#200503-200705

SADDLE GRAY,TRIM1#

main73970-48060-E0iMHU2#200503-200705

SANDAL WOOD,TRIM0#

9010506228

main90105-06228

9011906144

main90119-06144

9011906251

main90119-06251

9017906115

main90179-06115

9017906206

main90179-06206

9017906278

main90179-06278

9017908086

main90179-08086

9018305094

main90183-05094

91621J0814

main91621-J0814

91631B0818

main91631-B0818

9356855016

main93568-55016

23 parts on this diagram · 4 diagrams in section
