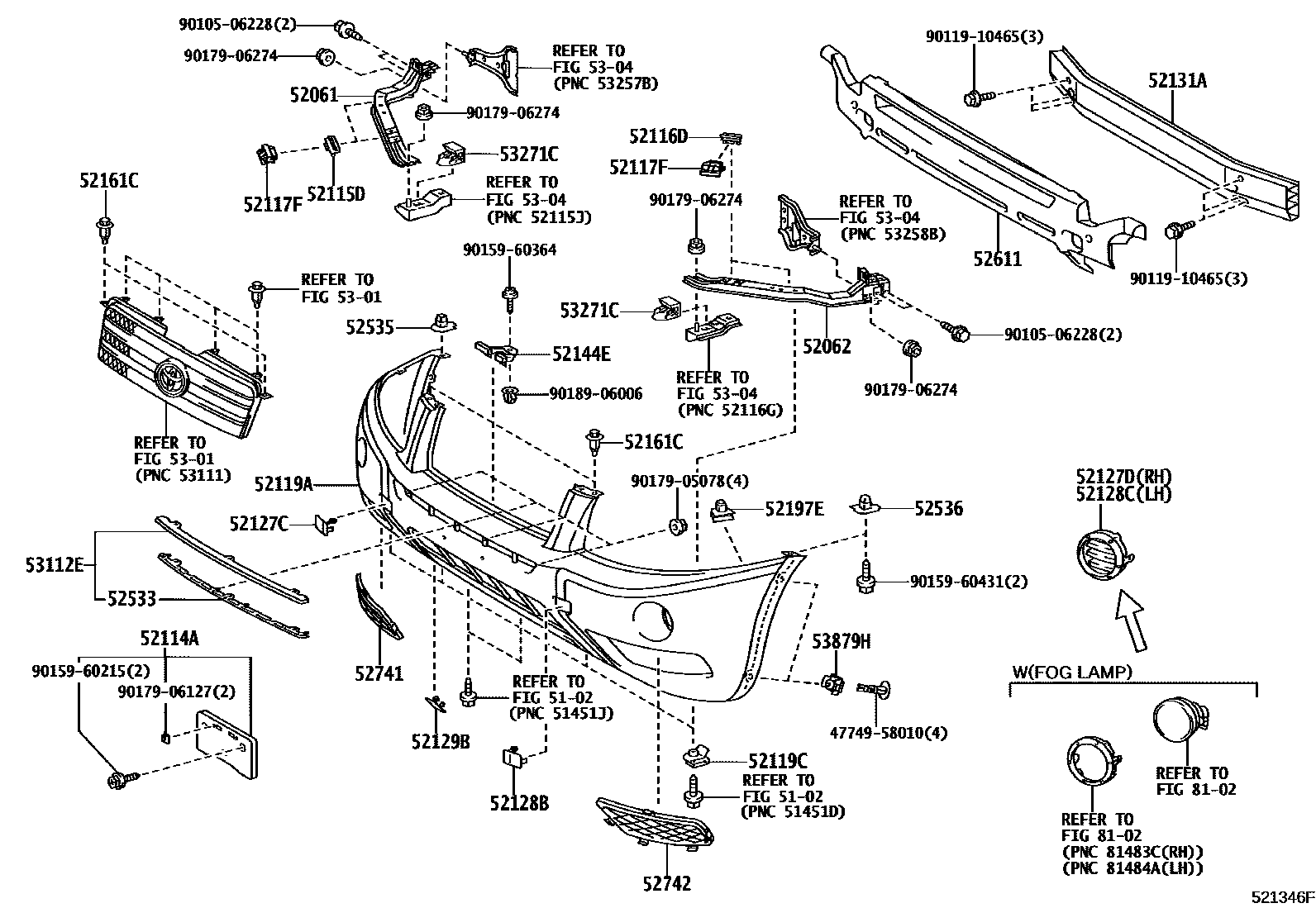

FRONT BUMPER & BUMPER STAY
5102
52061SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52062SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52117FSUPPORT, FRONT BUMPER, UPPER
52119ACOVER, FRONT BUMPER
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52128CCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
CANADA SPEC
52144ESTAY, FRONT BUMPER, CENTER
52161CPIECE, FRONT BUMPER
sub52161-0K040
52197EBRACKET, FRONT BUMPER SEAL
52533BRACKET, FRONT BUMPER RETAINER, NO.1
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52741GARNISH, FRONT BUMPER BAR, NO.1
NO PAINT REQ.
52742GARNISH, FRONT BUMPER BAR, NO.2
NO PAINT REQ.
5301
5304
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
53271CBRACKET, HEADLAMP MOUNTING
53879HRETAINER, FRONT FENDER LINER
8102
4774958010CLIP, PIN HOLD
main47749-58010
9010506228
main90105-06228
9011910465
main90119-10465
9015960215
main90159-60215
9015960364
main90159-60364
9015960431
main90159-60431
9017905078
main90179-05078
9017906127
main90179-06127
9017906274
main90179-06274
9018906006
main90189-06006
40 parts on this diagram · 1 diagram in section
