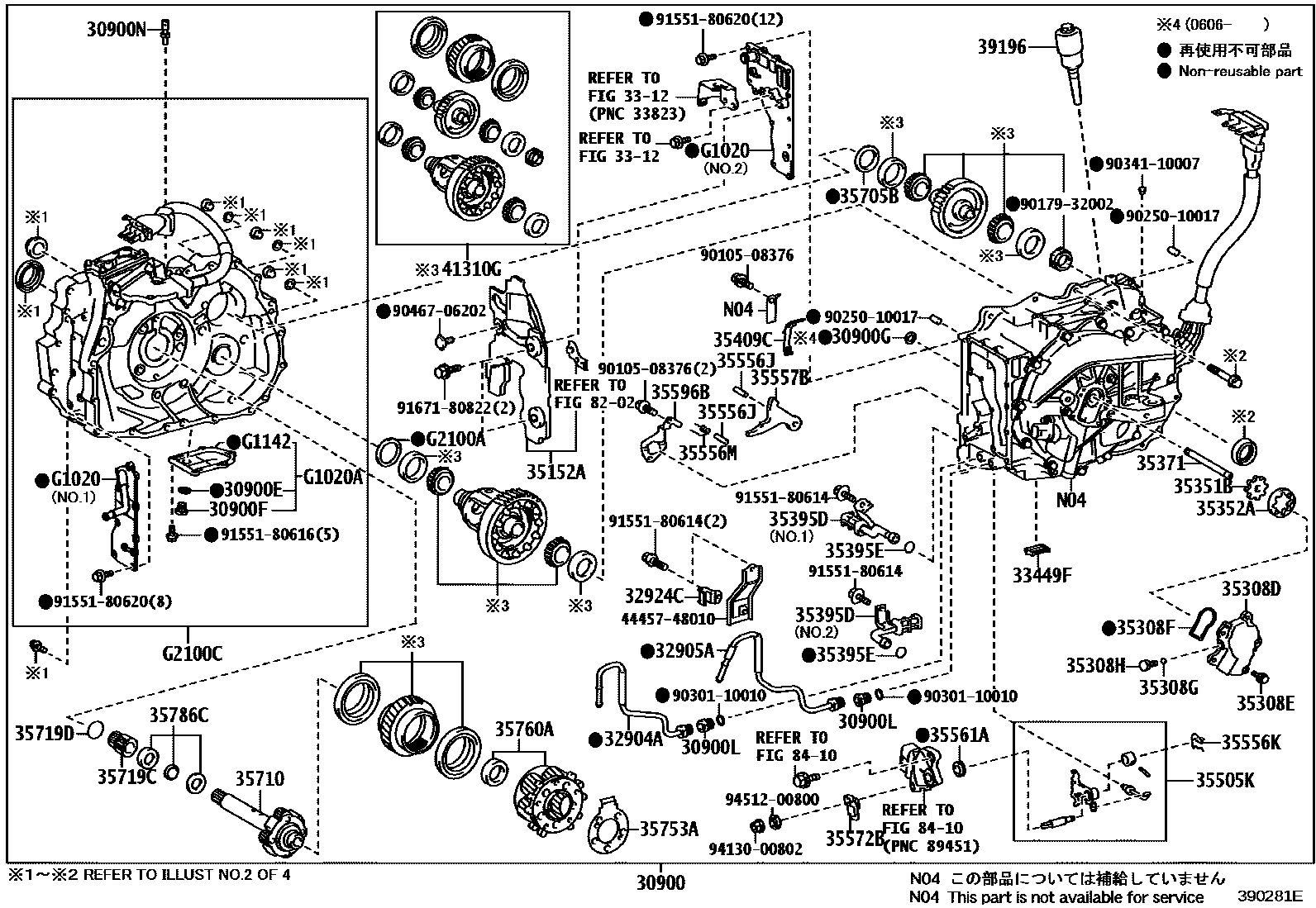

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900LUNION(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
32904ATUBE SUB-ASSY, OIL COOLER INLET
32905ATUBE SUB-ASSY, OIL COOLER OUTLET
32924CCLAMP, OIL COOLER TUBE, NO.2
3312
33449FMAGNET, TRANSMISSION NO.1
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP
35308EBOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35351BROTOR, TRANSAXLE OIL PUMP DRIVE
35352AROTOR, TRANSMISSION OIL PUMP DRIVEN
35371SHAFT, OIL PUMP DRIVE
35395DSTRAINER, TRANSMISSION OIL
TOWING PACKAGE-WITH(3500LBS),NO.1
35395ERING, O(FOR TRANSAXLE OIL STRAINER)
TOWING PACKAGE-WITH(3500LBS)
35409CSPRING SUB-ASSY, MANUAL DETENT
35505KLEVER SUB-ASSY, PARKING LOCK, NO.1
35556JSHAFT, PARKING LOCK PAWL
35556KSPRING, RETAINER
35556MSPRING, TORSION
35557BPAWL, PARKING LOCK
35561ASEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)
35572BLEVER, TRANSMISSION, OUTER
35596BPLATE, PAWL STOPPER
35705BSHIM(FOR COUNTER DRIVEN GEAR)
35710SHAFT ASSY, INPUT
35719CGEAR, PLANETARY SUN
35719DRING, SNAP(FOR PLANETARY SUN GEAR)
T=3.88,MARK 1
T=3.91,MARK 2
T=3.94,MARK 3
T=3.97,MARK 4
T=4.00,MARK 5
T=4.03,MARK 6
T=4.06,MARK 7
T=4.09,MARK 8
T=4.12,MARK 9
T=4.15,MARK 10
T=4.18,MARK 11
T=4.21,MARK 12
T=4.24,MARK 13
T=4.27,MARK 14
T=4.30,MARK 15
T=4.33,MARK 16
T=4.36,MARK 17
T=4.39,MARK 18
T=4.42,MARK 19
T=4.45,MARK 20
T=4.48,MARK 21
T=4.51,MARK 22
T=4.54,MARK 23
T=4.57,MARK 24
T=4.60,MARK 25
T=4.63,MARK 26
T=4.66,MARK 27
T=4.69,MARK 28
T=4.72,MARK 29
35753ARECEIVER, PLANETARY OIL
35760AGEAR ASSY, REAR PLANETARY NO.1
35786CRACE, THRUST BEARING, NO.1
39196DAMPER, HV TRANSMISSION MASS
41310GGEAR KIT, DIFFERENTIAL & COUNTER DRIVEN
8202
8410
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
NO.1
NO.2
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G1142COVER, MOTOR WATERJACET
G2100ASHIM(FOR DIFFERENTIAL CASE RH)
T=2.00,MARK 1
T=2.02,MARK 2
T=2.04,MARK 3
T=2.06,MARK 4
T=2.08,MARK 5
T=2.10,MARK 6
T=2.12,MARK 7
T=2.14,MARK 8
T=2.16,MARK 9
T=2.18,MARK 10
T=2.20,MARK 11
T=2.22,MARK 12
T=2.24,MARK 13
T=2.26,MARK 14
T=2.28,MARK 15
T=2.30,MARK 16
T=2.32,MARK 17
T=2.34,MARK 18
T=2.36,MARK 19
T=2.38,MARK 20
T=2.40,MARK 21
T=2.42,MARK 22
T=2.44,MARK 23
T=2.46,MARK 24
T=2.48,MARK 25
T=2.50,MARK 26
T=2.52,MARK 27
T=2.54,MARK 28
T=2.56,MARK 29
T=2.58,MARK 30
T=2.60,MARK 31
T=2.62,MARK 32
T=2.64,MARK 33
T=2.66,MARK 34
T=2.68,MARK 35
T=2.70,MARK 36
T=2.72,MARK 37
T=2.74,MARK 38
T=2.76,MARK 39
T=2.78,MARK 40
T=2.80,MARK 41
T=2.82,MARK 42
T=2.84,MARK 43
T=2.86,MARK 44
G2100CGENERATOR ASSY, HYBRID VEHICLE
4445748010BRACKET, TUBE SUPPORT, NO.1
9010508376
9017932002
9025010017
9030110010
9034110007
main90341-10007
9046706202
9155180614
9155180616
9155180620
9167180822
9413000802
9451200800
60 parts on this diagram · 5 diagrams in section
