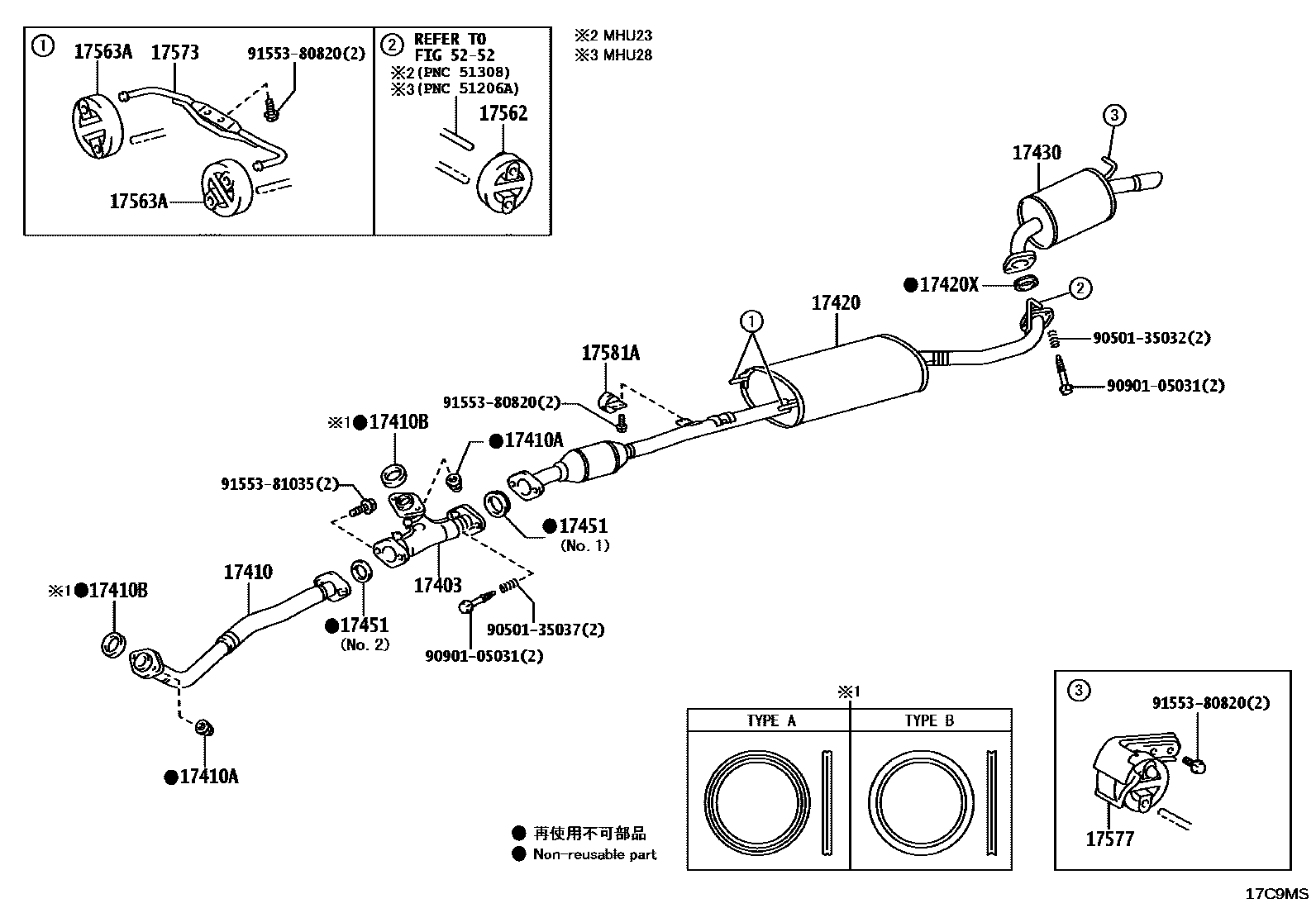

EXHAUST PIPE
17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17420PIPE ASSY, EXHAUST, CENTER
*114=TOYOTA/UA4/Y
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
NO.1
NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
5252
9050135032
main90501-35032
9050135037
main90501-35037
9090105031
main90901-05031
9155380820
main91553-80820
9155381035
main91553-81035
19 parts on this diagram · 1 diagram in section
