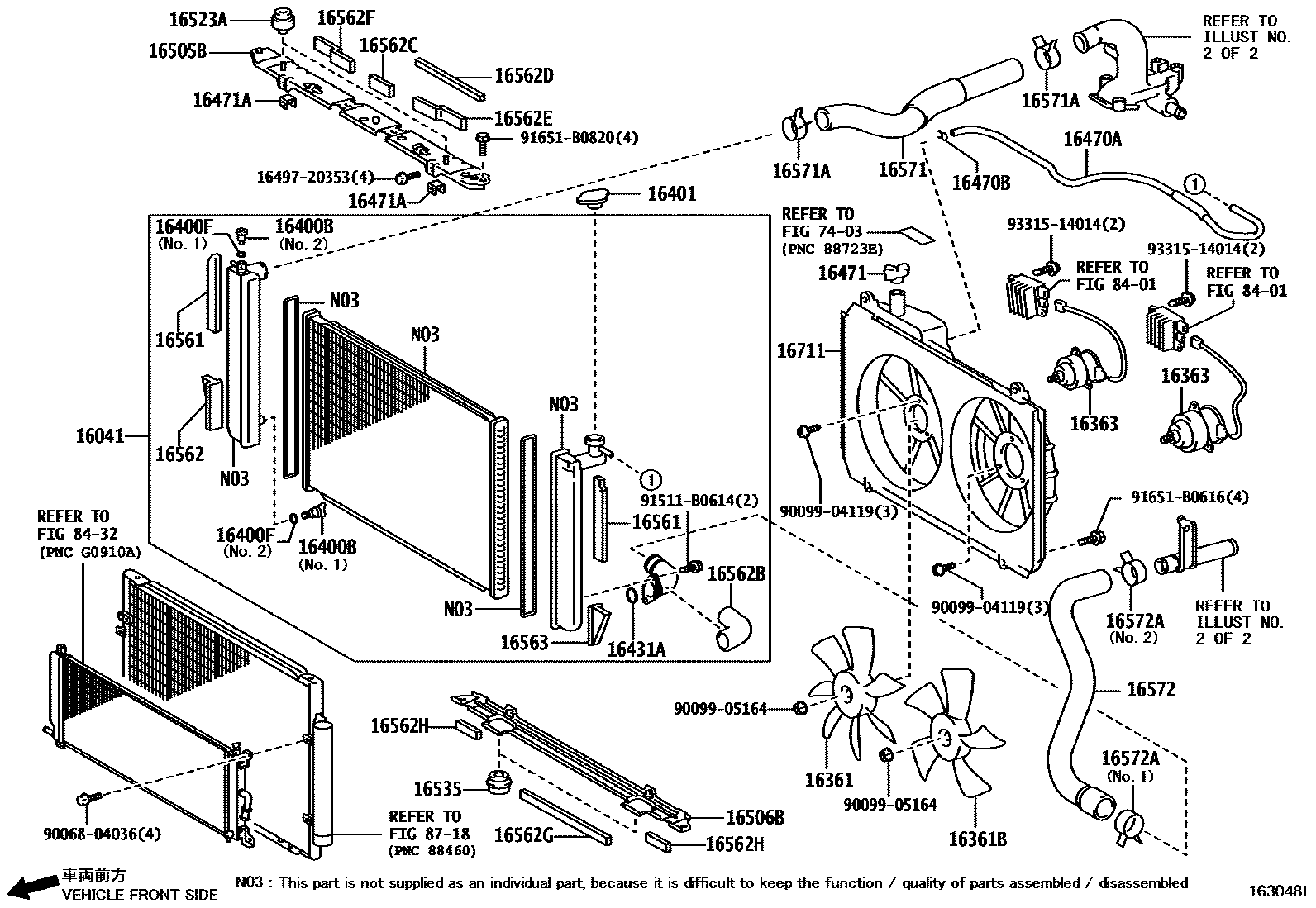

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16400BPLUG, RADIATOR DRAIN COCK
NO.1
NO.2
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.1
NO.2
16431INLET, RADIATOR WATER
16431ARING, O(FOR RADIATOR WATER INLET)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16471ASUPPORT SUB-ASSY
16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH
16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16562CSEAL, RADIATOR TO SUPPORT, NO.5
16562DSEAL, RADIATOR TO SUPPORT, NO.6
16562ESEAL, RADIATOR TO SUPPORT, NO.7
16562FSEAL, RADIATOR TO SUPPORT, NO.8
16562GSEAL, RADIATOR TO SUPPORT, NO.9
16562HSEAL, RADIATOR TO SUPPORT, NO.10
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
NO.1
16711SHROUD, FAN
7403
8401
8432
8718
1649720353INLET SUB-ASSY
main16497-20353
9006804036
main90068-04036
9009904119
main90099-04119
9009905164
main90099-05164
91511B0614
main91511-B0614
91651B0616
main91651-B0616
91651B0820
main91651-B0820
9331514014
main93315-14014
44 parts on this diagram · 3 diagrams in section
