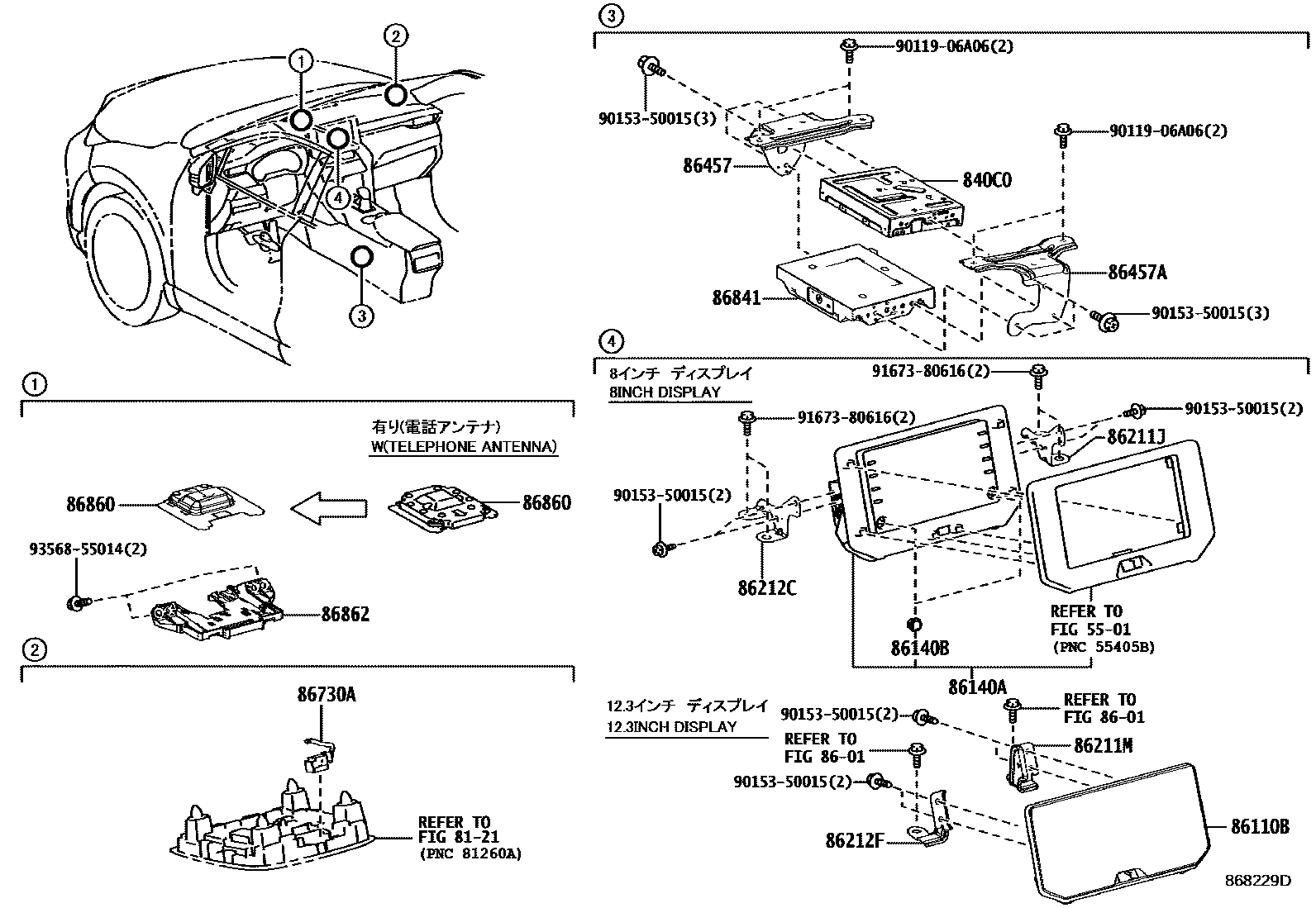

NAVIGATION & FRONT MONITOR DISPLAY
5501
8121
840C0CONTROL ASSY, INTEGRATION
GUAM,SAIPAN SPEC&AUDIO-6PEAKER & 8INCH DISPLAY T1 & XM(USA)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
8601
86110BMULTI-DISPLAY ASSY
DENSO TEN,AUDIO-JBL & 12.3INCH XM(USA)
DENSO TEN
DENSO TEN
DENSO TEN,AUDIO-JBL & 12.3INCH XM(CANADA)
DENSO TEN
DENSO,GUAM,SAIPAN SPEC
DENSO,AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
DENSO,AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
DENSO
86140ARECEIVER ASSY, RADIO & DISPLAY
DENSO TEN
DENSO TEN,GUAM,SAIPAN SPEC
DENSO TEN
DENSO TEN
DENSO TEN,GUAM,SAIPAN SPEC&AUDIO-6PEAKER & 8INCH ENTRY XM(USA)
DENSO TEN
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
GUAM,SAIPAN SPEC
86211JBRACKET, RADIO RECEIVER, NO.1
GUAM,SAIPAN SPEC
86211MBRACKET, RADIO RECEIVER, NO.3
GUAM,SAIPAN SPEC
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
86212CBRACKET, RADIO RECEIVER, NO.2
GUAM,SAIPAN SPEC
86212FBRACKET, RADIO RECEIVER, NO.4
GUAM,SAIPAN SPEC
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
86457BRACKET, MULTI-MEDIA MODULE NO.1
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
GUAM,SAIPAN SPEC
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
86457ABRACKET, MULTI-MEDIA MODULE NO.2
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
GUAM,SAIPAN SPEC
86730AMICROPHONE ASSY, TELEPHONE
86841COMPUTER, NAVIGATION
GUAM,SAIPAN SPEC
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
GUAM,SAIPAN SPEC
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(CAN)
GUAM,SAIPAN SPEC
AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA)
86862BRACKET, NAVIGATION ANTENNA
9011906A06
main90119-06A06
9015350015
main90153-50015
9167380616
main91673-80616
9356855014
main93568-55014
21 parts on this diagram · 2 diagrams in section
