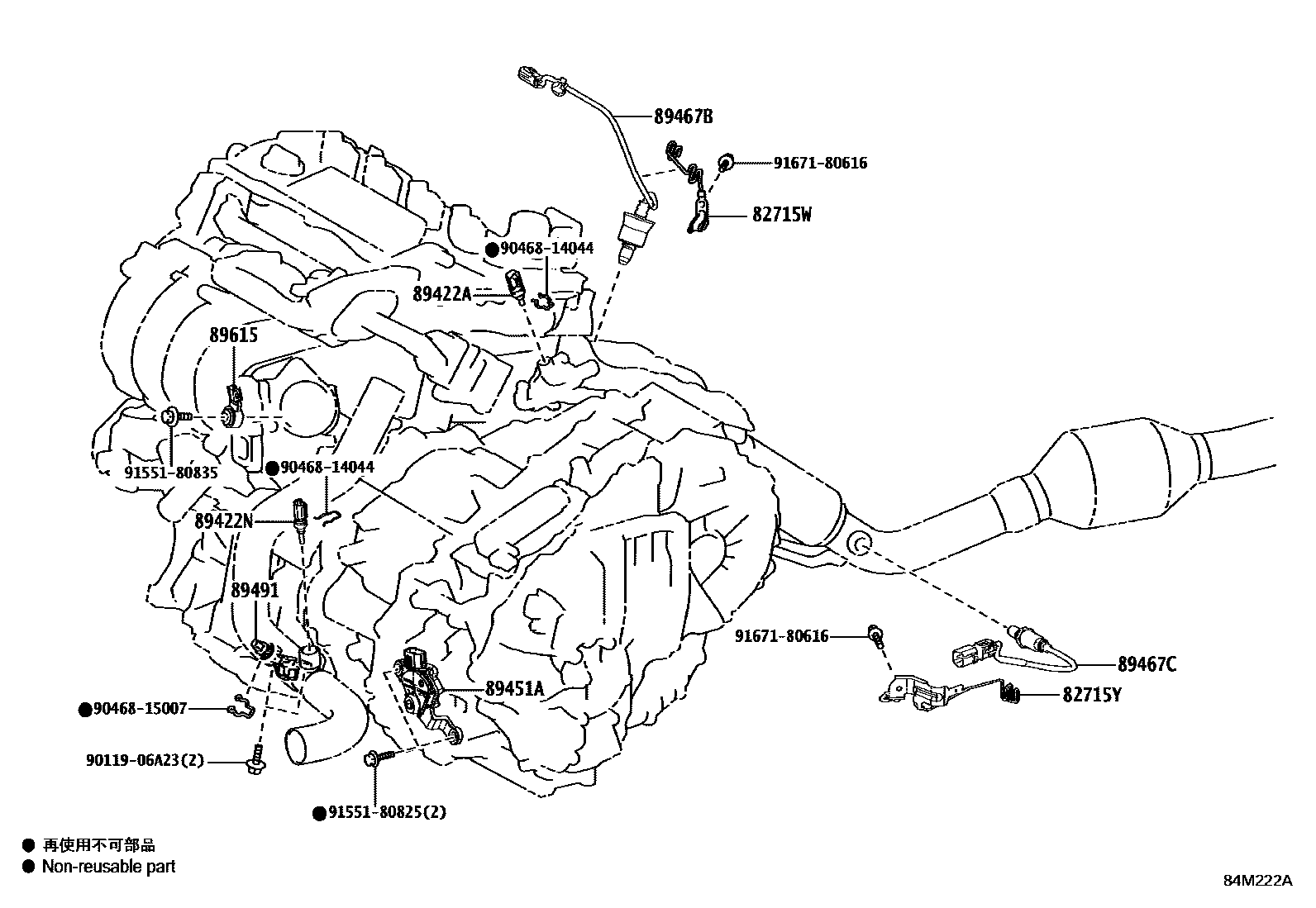

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM RELAY BLOCK 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1CONSOLE BOX 0007 1STEERING 0008 1SEAT 0009 1DOOR & ROOF 0010 1FLOOR & BACK DOOR 0011 1FLOOR & BACK DOOR 0012 1FLOOR RELAY BLOCK

82715WBRACKET, WIRING HARNESS CLAMP

main82715-33K11iAXUH85202007-202408

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-42K60iAXUH85202007-202408

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXUH85202007-202408

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXUH85202007-202408

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXUH85202007-202408

89467BSENSOR, AIR FUEL RATIO

main89467-33290iAXUH85202007-202408

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAXUH85202007-202408

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXUH85202007-202204

sub89491-33052

main89491-33052iAXUH85202205-202408

89615SENSOR, KNOCK CONTROL

main89615-20090iAXUH85202007-202408

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180825

main91551-80825

9155180835

main91551-80835

9167180616

main91671-80616

15 parts on this diagram · 12 diagrams in section
