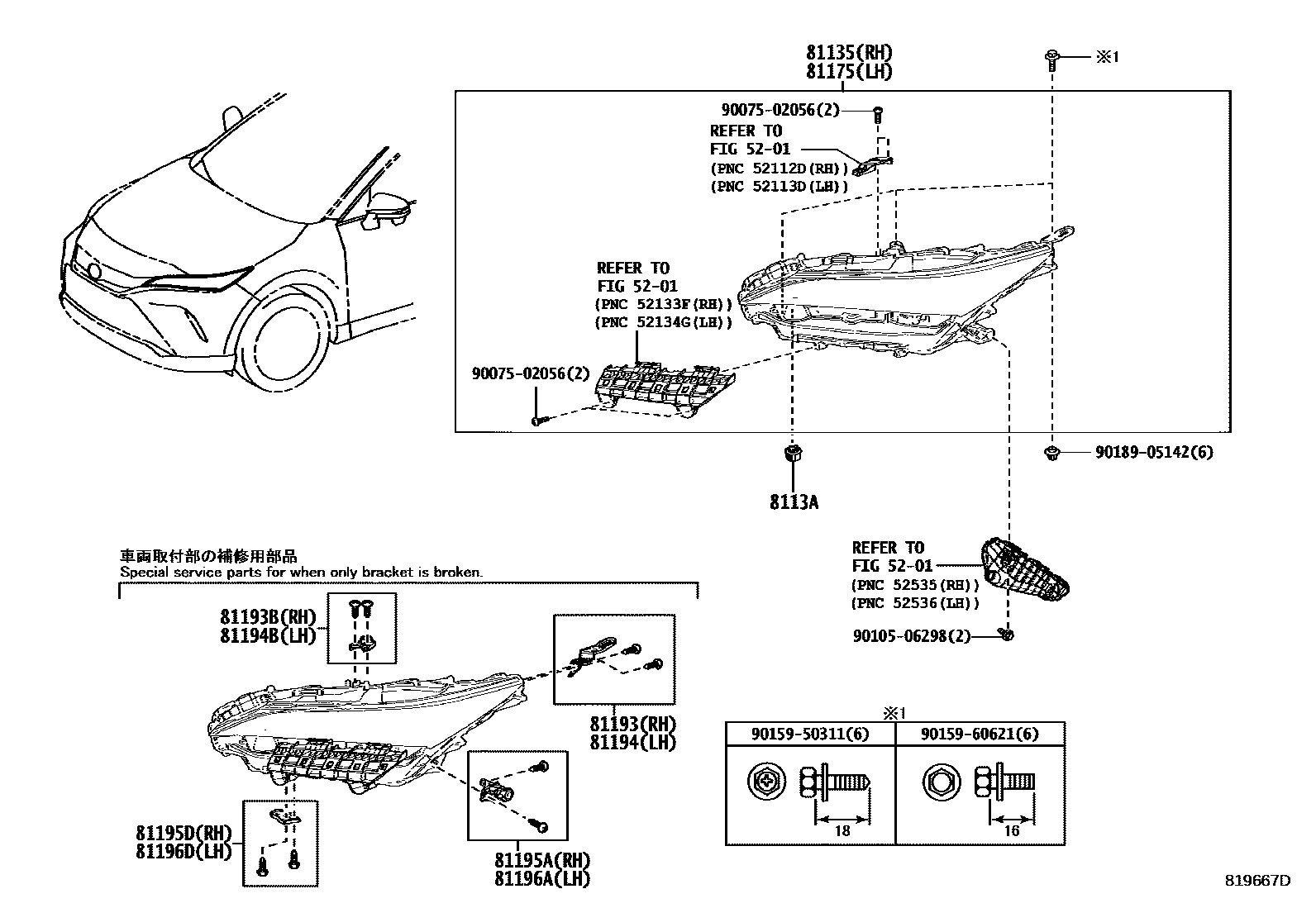

HEADLAMP

0001 1 0002 1

5201

81135UNIT ASSY, HEADLAMP, RH

main81140-48J20iAXUH85..M202007-202408

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81161-48J00iAXUH85..M202007-202107

sub81965-48030

main81965-48030iAXUH85..M202107-202408

81175UNIT ASSY, HEADLAMP, LH

main81070-48J20iAXUH85..M202007-202408

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48170iAXUH85202007-202408

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-48180iAXUH85202007-202408

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48170iAXUH85202007-202408

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-48180iAXUH85202007-202408

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48090iAXUH85202007-202408

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-48100iAXUH85202007-202408

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48090iAXUH85202007-202408

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-48100iAXUH85202007-202408

9007502056

main90075-02056

9010506298

main90105-06298

9015950311

main90159-50311

9015960621

main90159-60621

9018905142

main90189-05142

17 parts on this diagram · 2 diagrams in section
