FRONT SEAT & SEAT TRACK

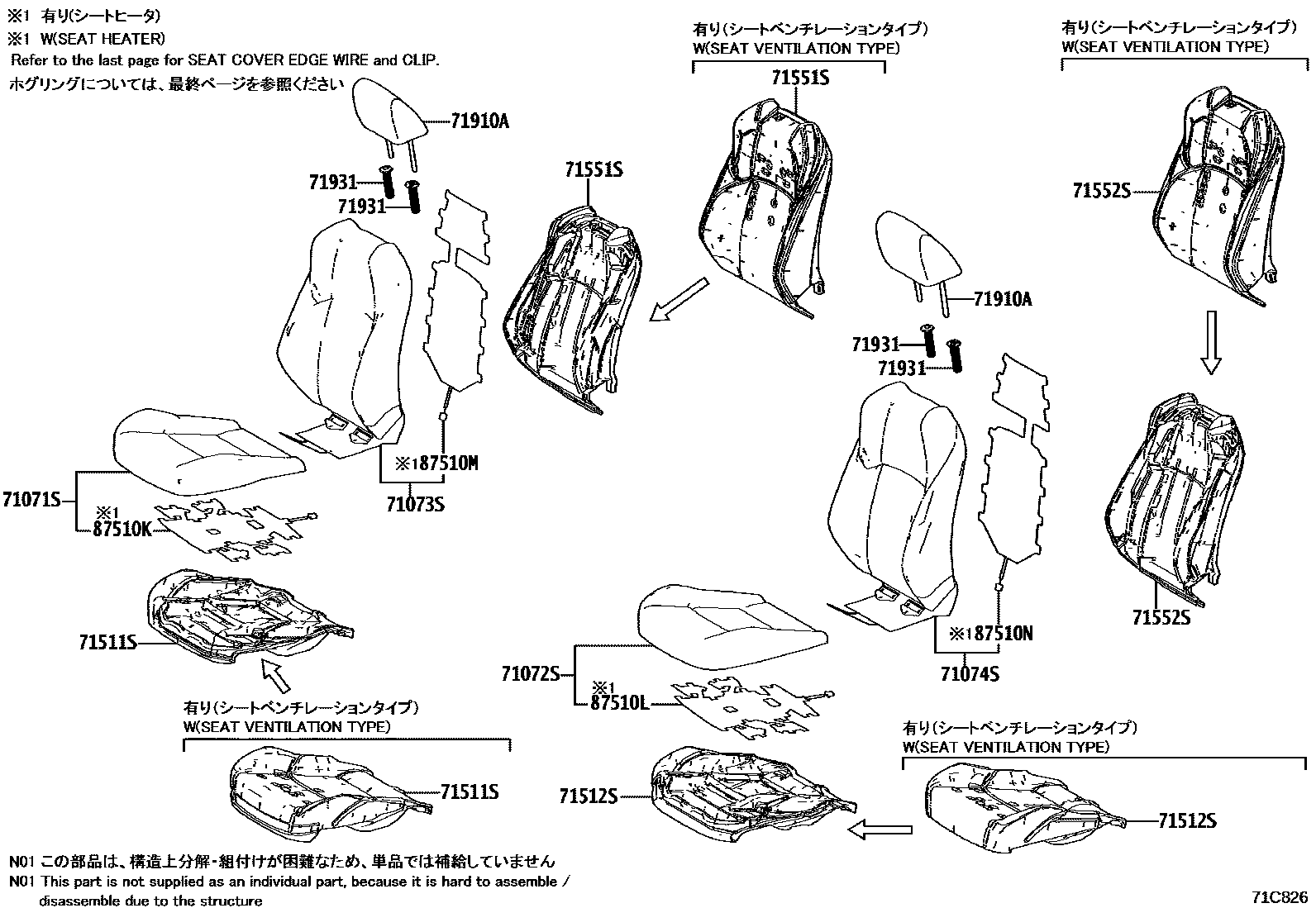

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-48D80-B1i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71071-48D80-C2i202007-202112
BLACK/GRAY,TRIM2#
main71071-48D80-C3i202007-202112
BLACK/CAMEL,TRIM4#
main71071-48E00-B1i202007-202205
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71071-48E00-C2i202007-202205
BLACK/GRAY,TRIM2#
main71071-48E00-C3i202007-202205
BLACK/CAMEL,TRIM4#
main71071-48E01-B1i202206-202210
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71071-48E01-C2i202206-202210
BLACK/GRAY,TRIM2#
main71071-48E01-C3i202206-202210
BLACK/CAMEL,TRIM4#
main71071-48F80-B0i202112-202205
MEDIUM GRAY/BEIGE,TRIM1#
sub71071-48F81
main71071-48F80-C0i202112-202205
BLACK/GRAY,TRIM2#
sub71071-48F81
main71071-48F80-C1i202112-202205
BLACK/CAMEL,TRIM4#
sub71071-48F81
main71071-48F91-B0supersedes 71071-48F81-B0i202210-202408
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
main71071-48F91-C0supersedes 71071-48F81-C0i202210-202408
BLACK/GRAY,TRIM2#
main71071-48F91-C1supersedes 71071-48F81-C1i202210-202408
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
main71071-48E40-B1supersedes 71071-48D60-B1i202007-202205
SEAT HEATER-WITH(DRIVER & PASSENGER),MEDIUM GRAY/BEIGE,TRIM1#
main71071-48E40-C1supersedes 71071-48D60-C1i202007-202205
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71071-48E41-B1supersedes 71071-48D60-B1i202210-202408
SEAT HEATER-WITH(DRIVER & PASSENGER),MEDIUM GRAY/BEIGE,TRIM1#
main71071-48E41-C1supersedes 71071-48D60-C1i202210-202408
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-48C90-B1i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71072-48C90-C2i202007-202112
BLACK/GRAY,TRIM2#
main71072-48C90-C3i202007-202112
BLACK/CAMEL,TRIM4#
main71072-48D00-B1i202007-202205
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71072-48D00-C2i202007-202205
BLACK/GRAY,TRIM2#
main71072-48D00-C3i202007-202205
BLACK/CAMEL,TRIM4#
main71072-48D01-B1i202206-202210
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71072-48D01-B2supersedes 71072-48E61-B0i202210-202408
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
main71072-48D01-C2i202206-202210
BLACK/GRAY,TRIM2#
main71072-48D01-C3i202206-202210
BLACK/CAMEL,TRIM4#
main71072-48D01-C4supersedes 71072-48E61-C0i202210-202408
BLACK/GRAY,TRIM2#
main71072-48D01-C5supersedes 71072-48E61-C1i202210-202408
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
main71072-48E60-B0i202112-202205
MEDIUM GRAY/BEIGE,TRIM1#
main71072-48E60-C0i202112-202205
BLACK/GRAY,TRIM2#
main71072-48E60-C1i202112-202205
BLACK/CAMEL,TRIM4#
main71072-48D30-B1supersedes 71072-48C70-B1i202007-202205
SEAT HEATER-WITH(DRIVER & PASSENGER),MEDIUM GRAY/BEIGE,TRIM1#
main71072-48D30-C1supersedes 71072-48C70-C1i202007-202205
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71072-48D31-B1supersedes 71072-48C70-B1i202206-202210
SEAT HEATER-WITH(DRIVER & PASSENGER),MEDIUM GRAY/BEIGE,TRIM1#
main71072-48D31-C1supersedes 71072-48C70-C1i202210-202408
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-48G50-B1supersedes 71073-48G40-B1i202007-202112
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71073-48G50-C2supersedes 71073-48G40-C2i202007-202112
BLACK/GRAY,TRIM2#
main71073-48G50-C3supersedes 71073-48G40-C3i202007-202112
BLACK/CAMEL,TRIM4#
main71073-48G51-B1supersedes 71073-48L20-B0i202112-202210
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71073-48G51-B2supersedes 71073-48L20-B1i202210-202408
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
main71073-48G51-C2supersedes 71073-48L20-C0i202112-202210
BLACK/GRAY,TRIM2#
main71073-48G51-C3supersedes 71073-48L20-C1i202112-202210
BLACK/CAMEL,TRIM4#
main71073-48G51-C4supersedes 71073-48L20-C2i202210-202408
BLACK/GRAY,TRIM2#
main71073-48G51-C5supersedes 71073-48L20-C3i202210-202408
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
main71073-48G80-B1supersedes 71073-48G20-B1i202007-202210
SEAT HEATER-WITH(DRIVER & PASSENGER),MEDIUM GRAY/BEIGE,TRIM1#
main71073-48G80-C1supersedes 71073-48G20-C1i202210-202408
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-48G10-B1supersedes 71074-48G00-B1i202007-202112
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71074-48G10-C2supersedes 71074-48G00-C2i202007-202112
BLACK/GRAY,TRIM2#
main71074-48G10-C3supersedes 71074-48G00-C3i202007-202112
BLACK/CAMEL,TRIM4#
main71074-48G11-B1supersedes 71074-48K60-B0i202112-202210
"LEATHER PACKAGE"*(S),MEDIUM GRAY/BEIGE,TRIM1#
main71074-48G11-B2supersedes 71074-48K60-B1i202210-202408
LEATHER PACKAGE,MEDIUM GRAY/BEIGE,TRIM1#
main71074-48G11-C2supersedes 71074-48K60-C0i202112-202210
BLACK/GRAY,TRIM2#
main71074-48G11-C3supersedes 71074-48K60-C1i202112-202210
BLACK/CAMEL,TRIM4#
main71074-48G11-C4supersedes 71074-48K60-C2i202210-202408
BLACK/GRAY,TRIM2#
main71074-48G11-C5supersedes 71074-48K60-C3i202210-202408
LEATHER PACKAGE,BLACK/CAMEL,TRIM4#
main71074-48G40-B1supersedes 71074-48F80-B1i202007-202210
SEAT HEATER-WITH(DRIVER & PASSENGER),MEDIUM GRAY/BEIGE,TRIM1#
main71074-48G40-C1supersedes 71074-48F80-C1i202210-202408
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-42440i202210-202408
LEATHER PACKAGE
main71511-48440i202210-202408
main71511-48450i202007-202210
"LEATHER PACKAGE"*(S)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-48380i202007-202210
main71512-48390i202210-202408
LEATHER PACKAGE
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-48270i202007-202210
main71551-48280i202007-202210
"LEATHER PACKAGE"*(S)
main71551-48370i202305-202408
main71551-48380i202306-202408
LEATHER PACKAGE
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-48260i202210-202304
main71552-48270i202007-202210
"LEATHER PACKAGE"*(S)
main71552-48360i202305-202408
main71552-48370i202306-202408
LEATHER PACKAGE
71910AHEADREST ASSY, FRONT SEAT
main71910-48E40-B1×2i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71910-48E40-B2×2i202210-202408
MEDIUM GRAY/BEIGE,TRIM1#
main71910-48E40-C0×2i202007-202112
BLACK/GRAY,TRIM2#
main71910-48E40-C1×2i202112-202210
BLACK/GRAY,TRIM2#
main71910-48E60×2i202007-202112
main71910-48E60-B1×2i202007-202112
MEDIUM GRAY/BEIGE,TRIM1#
main71910-48E60-C0×2i202007-202112
BLACK/GRAY,TRIM2#
main71910-48E60-C1×2i202007-202112
BLACK/CAMEL,TRIM4#
main71910-48E61-B2×2i202112-202210
MEDIUM GRAY/BEIGE,TRIM1#
main71910-48E61-C2×2i202112-202210
BLACK/GRAY,TRIM2#
main71910-48E61-C3×2i202210-202408
BLACK/CAMEL,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i202007-202210
W(LOCK),BLACK,TRIM1#,2#,4#
main71931-47030-C4×2i202210-202408
W/O(LOCK),BLACK,TRIM1#,2#
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-48280i202007-202206
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-48400i202206-202210
SEAT HEATER-WITH(DRIVER & PASSENGER)
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-48290i202007-202206
SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-48410i202206-202210
SEAT HEATER-WITH(DRIVER & PASSENGER)
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-42060i202007-202210
SEAT HEATER-WITH(DRIVER & PASSENGER)
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-42060i202007-202210
SEAT HEATER-WITH(DRIVER & PASSENGER)

14 parts on this diagram · 7 diagrams in section
