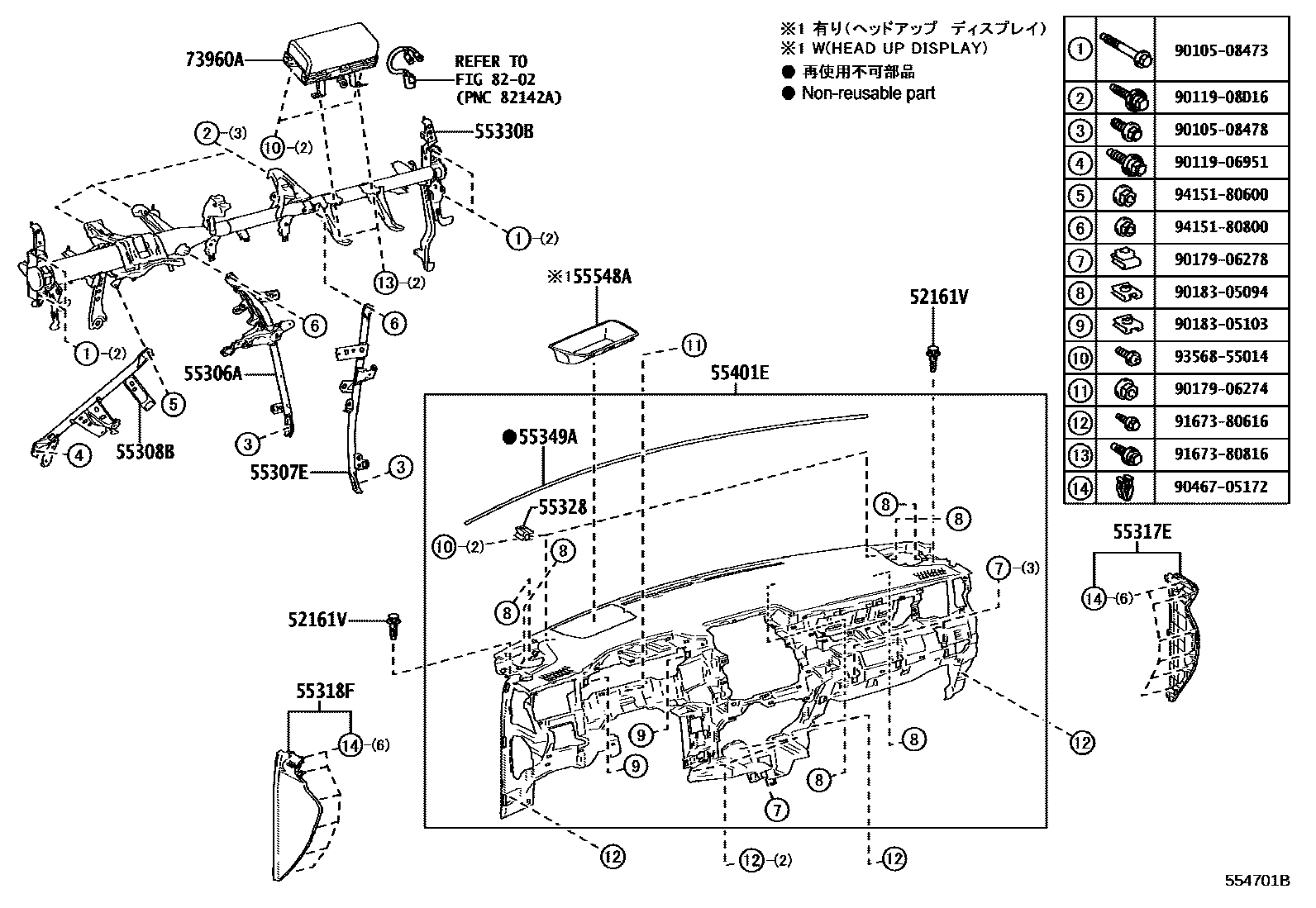

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iAXUH85202007-202408

sub52161-0K040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48190iAXUH85202007-202408

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48190iAXUH85202007-202408

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-48110iAXUH85202007-202408

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-48160-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#

main55317-48160-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#,4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-48160-C0iAXUH85..M202007-202408

BLACK,TRIM1#,2#

main55318-48160-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-10040iAXUH85202007-202408

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48290iAXUH85202007-202408

55349ACUSHION, INSTRUMENT PANEL

main55349-48060iAXUH85202007-202408

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-48310-C0iAXUH85..M..USA202007-202408

BLACK,TRIM1#,2#,4#

main55401-48310-C0iAXUH85..CND;AXUH85..(G,S)..USA202007-202408

BLACK,TRIM1#,2#

55548ACOVER, INSTRUMENT PANEL HOLE

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-48120iAXUH85202007-202408

8202

9010508473

main90105-08473

9010508478

main90105-08478

9011906951

main90119-06951

9011908D16

main90119-08D16

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 4 diagrams in section
