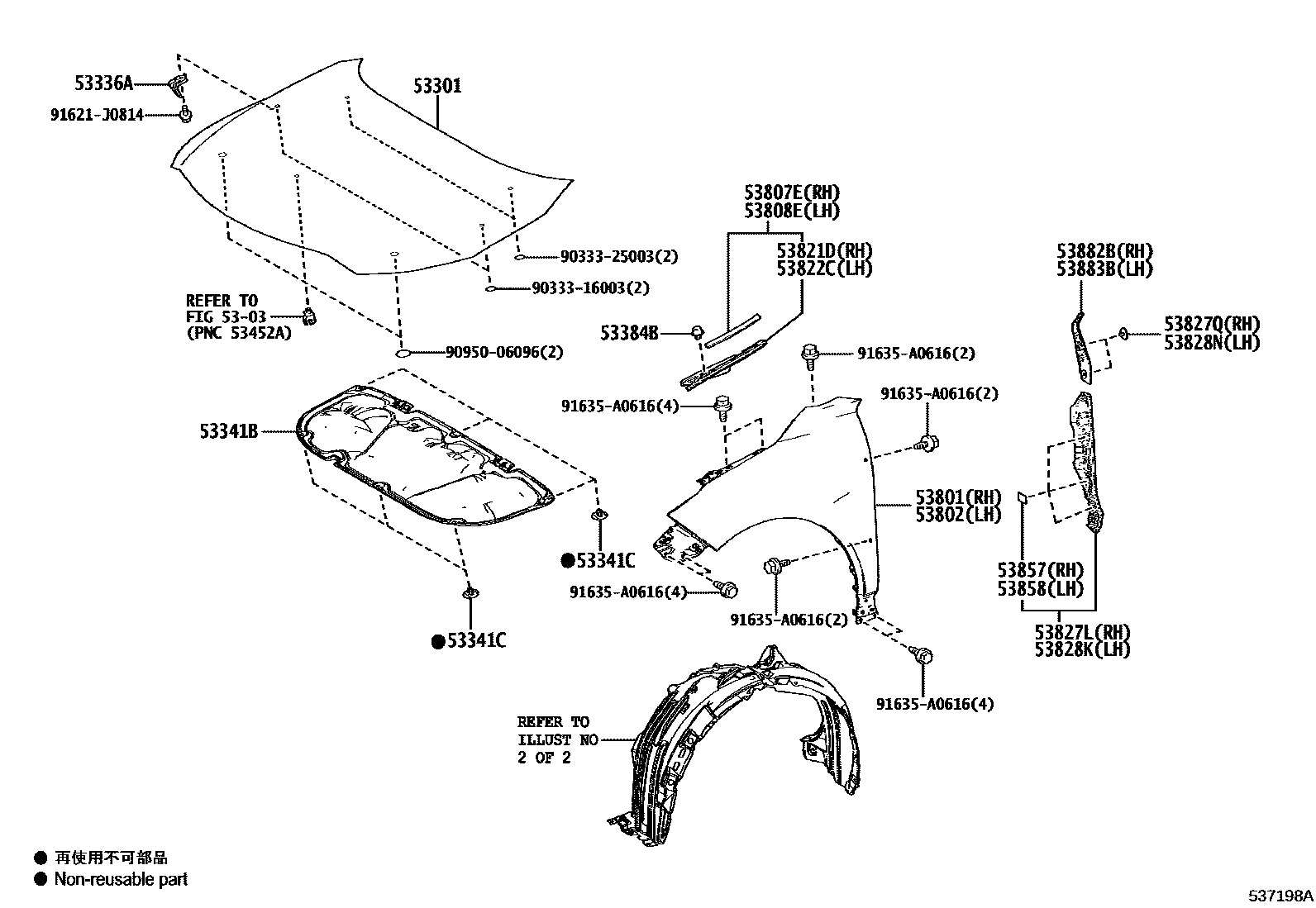

HOOD & FRONT FENDER

0001 1 0002 1

5303

53301HOOD SUB-ASSY

main53301-48200iAXUH85¥63,100202007-202408

53336ABRACKET, HOOD STAY

main53336-42010iAXUH85¥280202007-202408

53341BINSULATOR, HOOD

main53341-48130iAXUH85¥8,800202007-202408

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAXUH85¥120202007-202408

53384BCUSHION, HOOD, CENTER

main53384-48020iAXUH85¥160202007-202408

53801FENDER SUB-ASSY, FRONT RH

main53801-48140iAXUH85..CND¥41,900202007-202408

main53801-48150iAXUH85..USA202007-202112

sub53801-48140¥41,900

53802FENDER SUB-ASSY, FRONT LH

main53802-48160iAXUH85..CND¥41,900202007-202408

main53802-48170iAXUH85..USA202007-202112

sub53802-48160¥41,900

53807ESEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-48080iAXUH85¥1,280202007-202408

53808ESEAL SUB-ASSY, FENDER APRON MUDGUARD, LH

main53808-48080iAXUH85¥1,280202007-202408

53821DPROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-48100iAXUH85¥1,090202007-202408

53822CPROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-48050iAXUH85¥1,090202007-202408

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-48030iAXUH85¥2,070202007-202408

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iAXUH85202007-202408

BLACK

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-48060iAXUH85¥2,070202007-202408

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iAXUH85202007-202408

BLACK

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAXUH85¥100202007-202408

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAXUH85¥100202007-202408

53882BSEAL, FRONT FENDER, RH

main53882-48060iAXUH85¥640202007-202408

53883BSEAL, FRONT FENDER, LH

main53883-48060iAXUH85¥640202007-202408

9033316003

main90333-16003¥80

9033325003

main90333-25003¥70

9095006096

main90950-06096¥100

91621J0814

main91621-J0814¥60

91635A0616

main91635-A0616¥60

25 parts on this diagram · 2 diagrams in section
