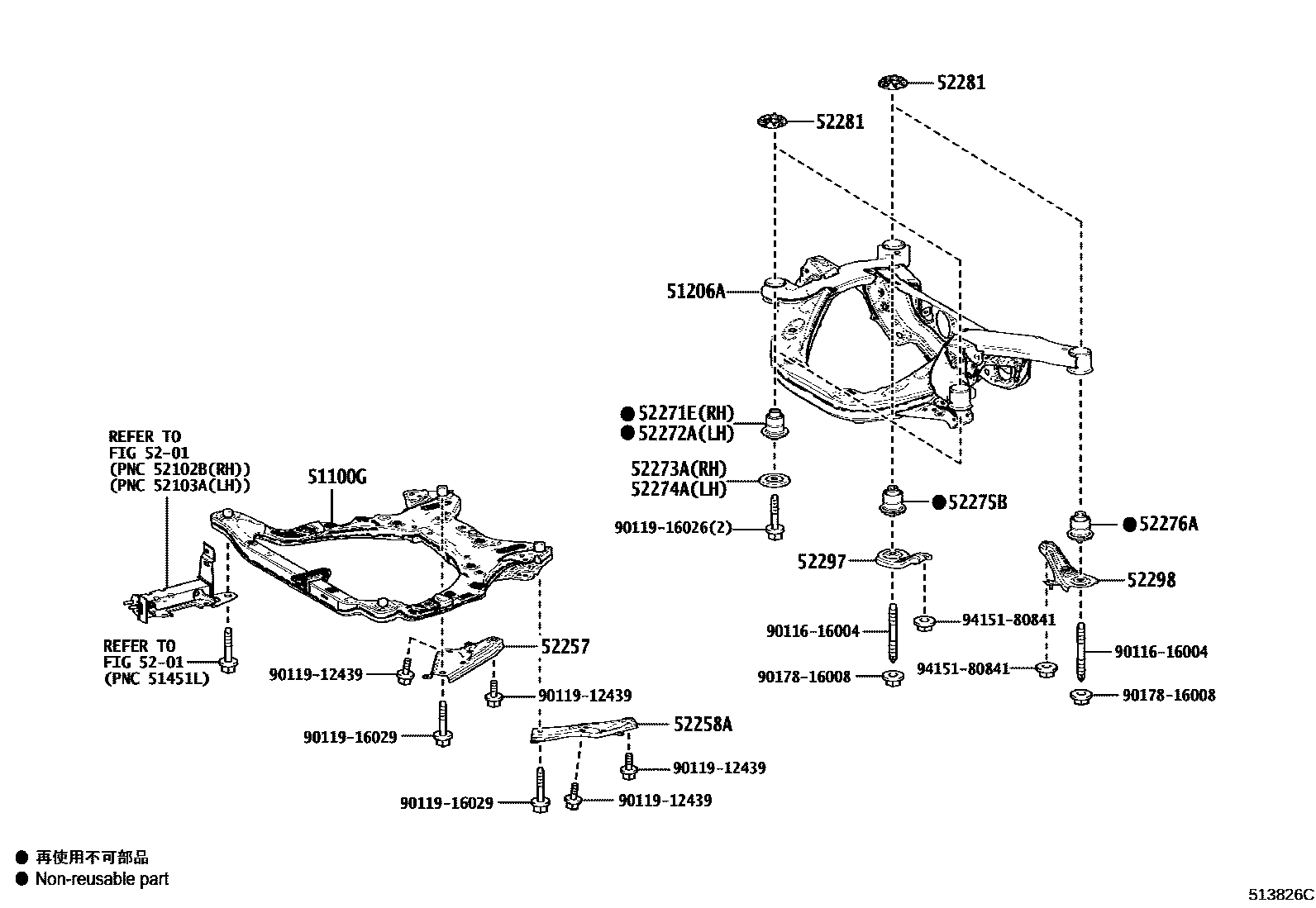

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-30880iAXUH85202108-202408

main51100-42011iAXUH85202007-202107

sub51100-30880

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42080iAXUH85202007-202408

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAXUH85202007-202408

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAXUH85202007-202408

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-42010iAXUH85202007-202408

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-42010iAXUH85202007-202408

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-33030iAXUH85202007-202408

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-33030iAXUH85202007-202408

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-42010iAXUH85202007-202408

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-42010iAXUH85202007-202408

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020iAXUH85202007-202408

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-42020iAXUH85202007-202408

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-42010iAXUH85202007-202408

9011616004

main90116-16004

9011912439

main90119-12439

9011916026

main90119-16026

9011916029

main90119-16029

9017816008

main90178-16008

9415180841

main94151-80841

20 parts on this diagram · 2 diagrams in section
