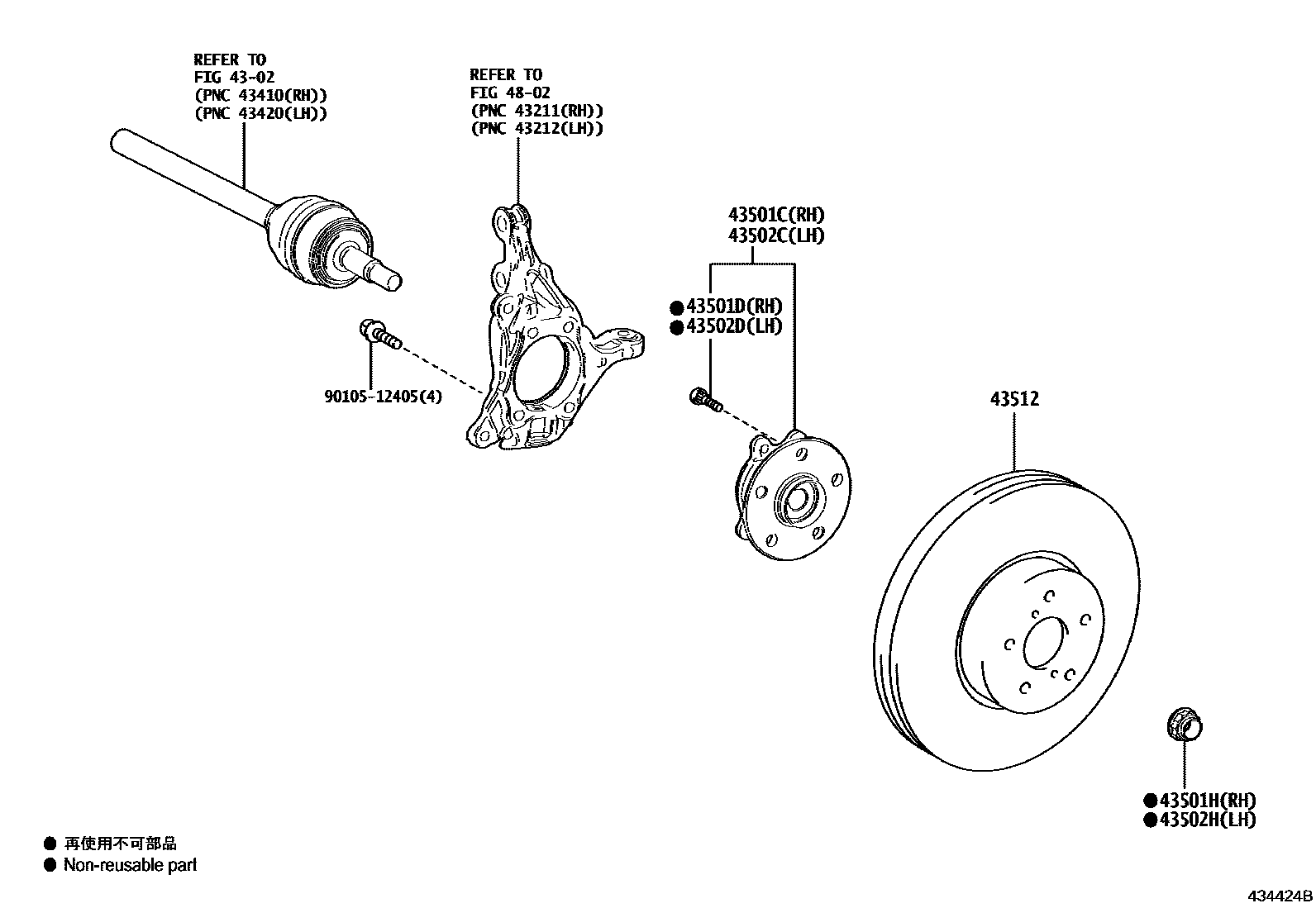

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33070iAXUH85202007-202309

main43550-33090iAXUH85202310-202408

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAXUH85202007-202408

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXUH85202007-202408

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33070iAXUH85202007-202309

main43550-33090iAXUH85202310-202408

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAXUH85202007-202408

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXUH85202007-202408

43512DISC, FRONT

main43512-33150iAXUH85202007-202408

4802

9010512405

main90105-12405

10 parts on this diagram · 1 diagram in section
