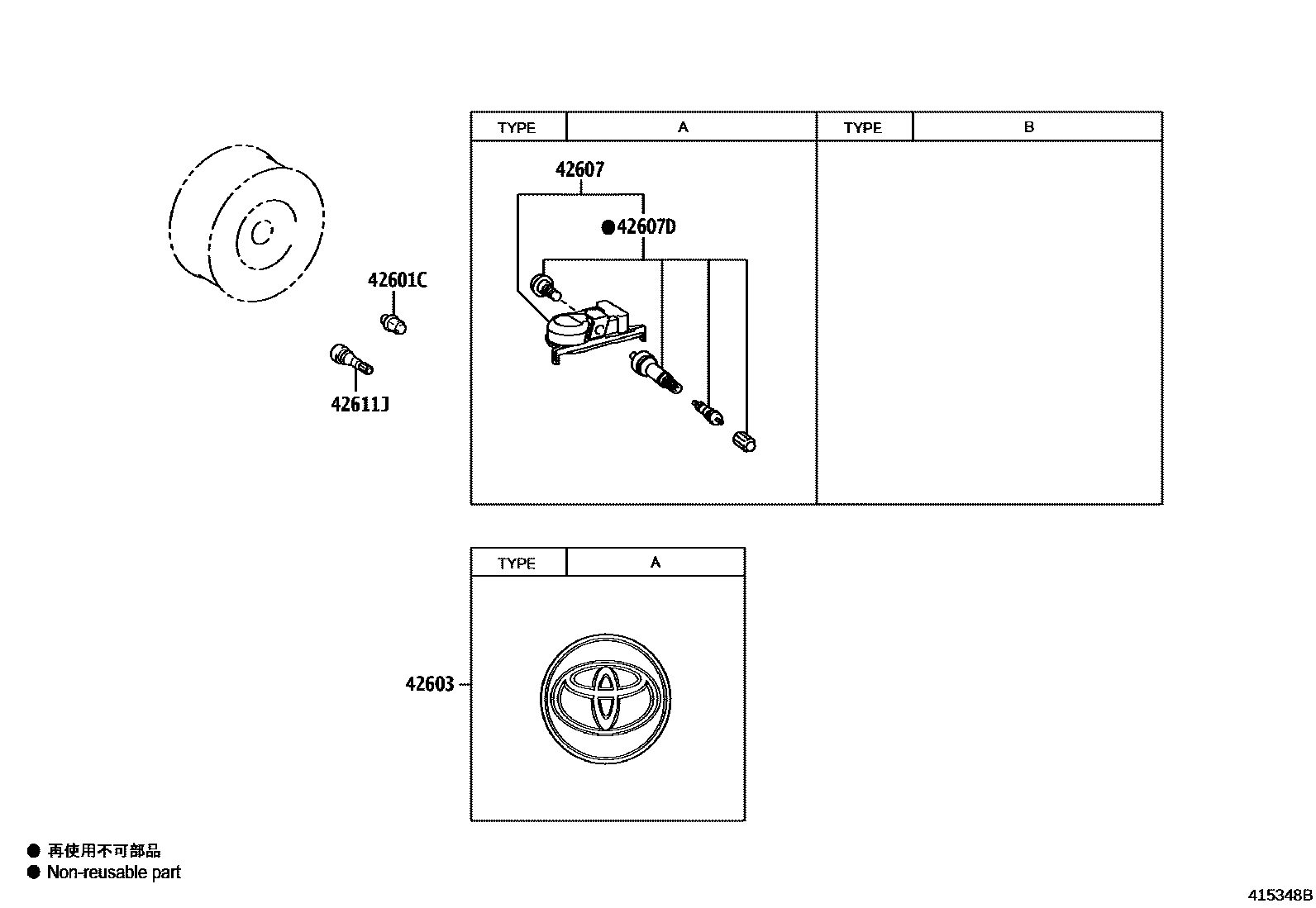

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-48B50iAXUH85..M202007-202408

18X7J, #,TYPE D:REFER ILLUST.

main42611-48B70iAXUH85..M202007-202408

18X7J, #,TYPE E:REFER ILLUST.

main4261A-48290iAXUH85..G,S202007-202408

19X7J, #,TYPE F:REFER ILLUST.

main4261A-48300iAXUH85..G,S202007-202408

19X7J, #,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iAXUH85202007-202408

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iAXUH85202007-202408

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12010iAXUH85202007-202408

TYPE A:REFER ILLUST.

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05043iAXUH85202007-202408

TYPE A:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXUH85202007-202408

6 parts on this diagram · 2 diagrams in section
