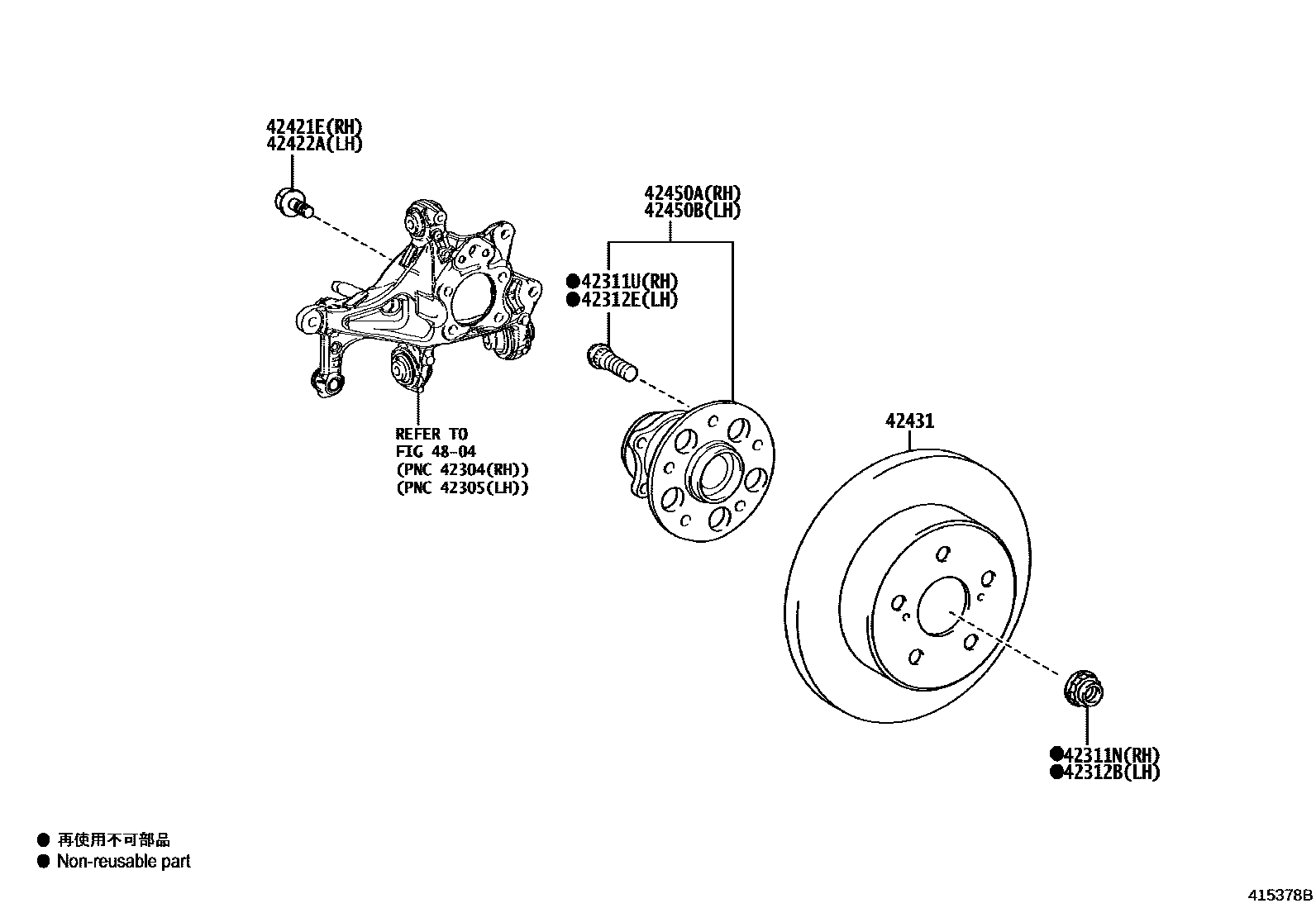

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iAXUH85¥220202007-202408

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAXUH85¥240202007-202408

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iAXUH85¥220202007-202408

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAXUH85¥240202007-202408

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406iAXUH85¥160202007-202408

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406iAXUH85¥160202007-202408

42431DISC, REAR

main42431-78010iAXUH85¥6,600202007-202408

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42060iAXUH85¥11,900202007-202309

main42410-47050iAXUH85¥15,300202310-202408

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42060iAXUH85¥11,900202007-202309

main42410-47050iAXUH85¥15,300202310-202408

4804

10 parts on this diagram · 2 diagrams in section
