ENGINE OVERHAUL GASKET KIT

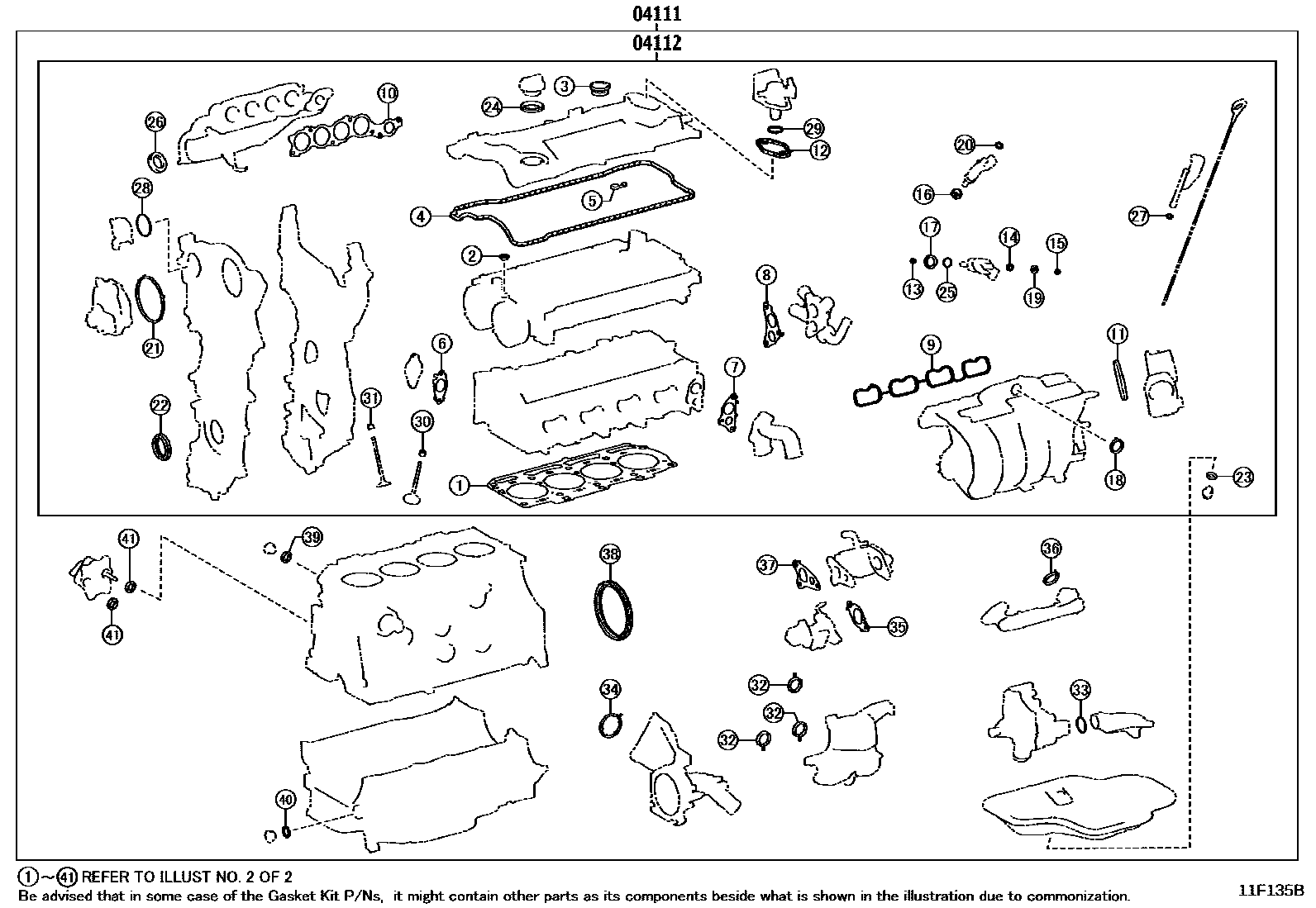

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-25240i202007-202108
sub04111-25241
main04111-25241i202108-202210
main04111-25261i202210-202408
04112GASKET KIT, ENGINE VALVE GRIND
main04112-25180i202007-202108
sub04112-25181
main04112-25181i202108-202408

2 parts on this diagram · 2 diagrams in section
