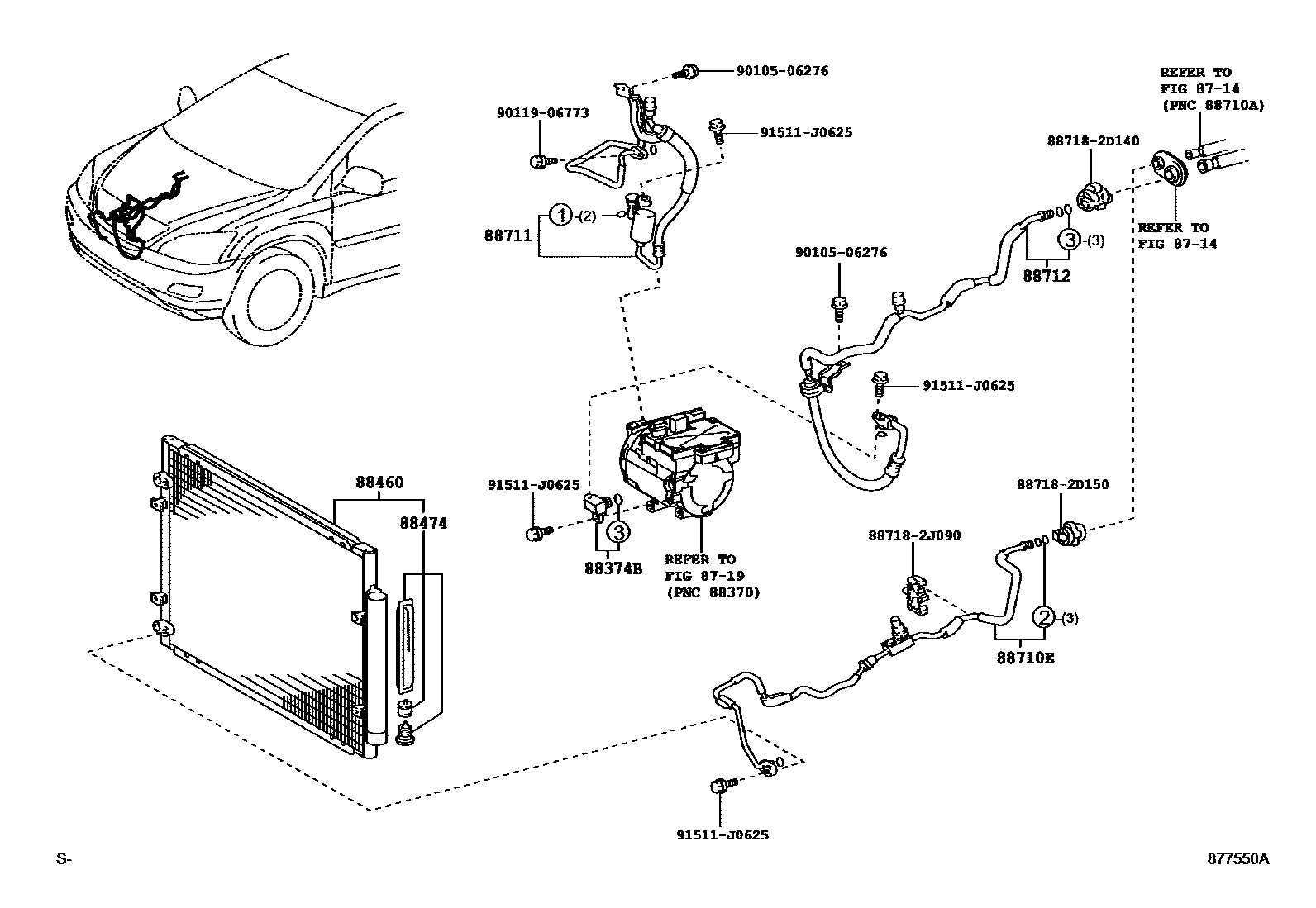

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-48010iMHU3#200503-200812

88460CONDENSER ASSY, COOLER

main88460-48060iMHU3#200503-200609

sub88460-48061

main88460-48061iMHU3#200610-200812

88474DRYER, COOLER

main88474-47020iMHU3#200503-200812

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48190iMHU3#200503-200812

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48090iMHU3#200503-200508

sub88703-48091

main88703-48091iMHU3#200509-200707

main88703-48092iMHU3#200708-200812

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-48070iMHU3#200503-200812

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

9010506276

main90105-06276

9011906773

main90119-06773

91511J0625

main91511-J0625

14 parts on this diagram · 2 diagrams in section
