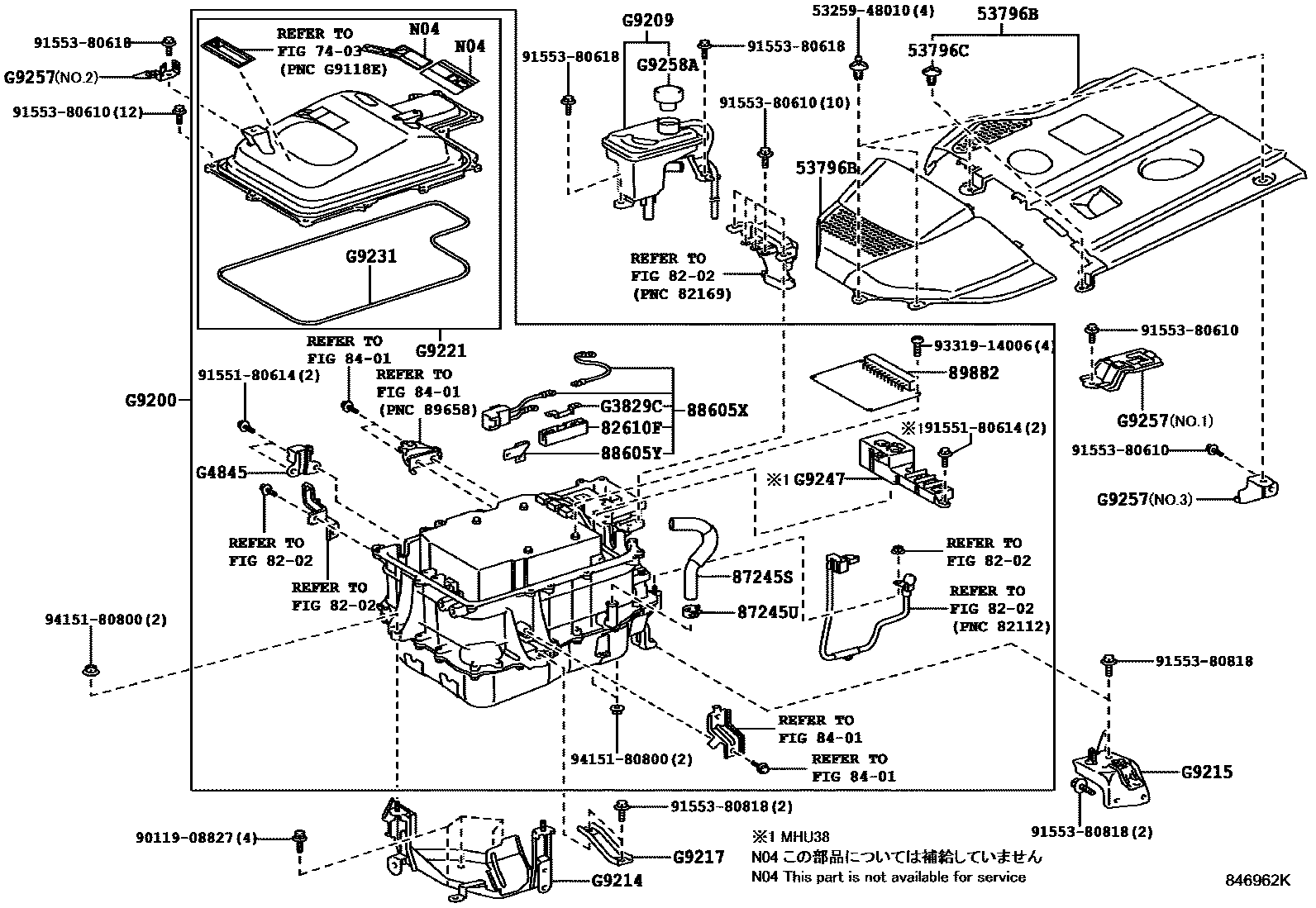

HEV INVERTER
53796BCOVER, ENGINE ROOM SIDE, LH NO.2
FRONT
REAR
REAR
53796CCLIP(FOR ENGINE ROOM SIDE COVER LH)
BLACK
7403
8202
82610FBLOCK ASSY, FUSE
8401
87245SHOSE, INVERTER WATER, NO.1
87245UCLAMP OR CLIP (FOR WATER HOSE)
88605XHARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605YBRACKET, COOLER
89882COMPUTER, MOTOR GENERATOR CONTROL
G3829CFUSE, ELECTRIC VEHICLE
G4845SENSOR, CIRCUIT BREAKER, NO.1
G9209TANK SUB-ASSY, INVERTER RESERVE
G9215BRACKET, INVERTER, NO.2
G9217BRACKET, INVERTER, NO.4
G9221COVER, INVERTER
G9231GASKET, INVERTER COVER
G9247SENSOR, INVERTER CURRENT, NO.1
G9257BRACKET, INVERTER, NO.5
NO.1
NO.3
NO.2
G9258ACAP, INVERTER RESERVE TANK
subG9258-28012
5325948010SUPPORT, RADIATOR CENTER
main53259-48010
9011908827
main90119-08827
9155180614
main91551-80614
9155380610
main91553-80610
9155380618
main91553-80618
9155380818
main91553-80818
9331914006
main93319-14006
9415180800
main94151-80800
31 parts on this diagram · 3 diagrams in section
