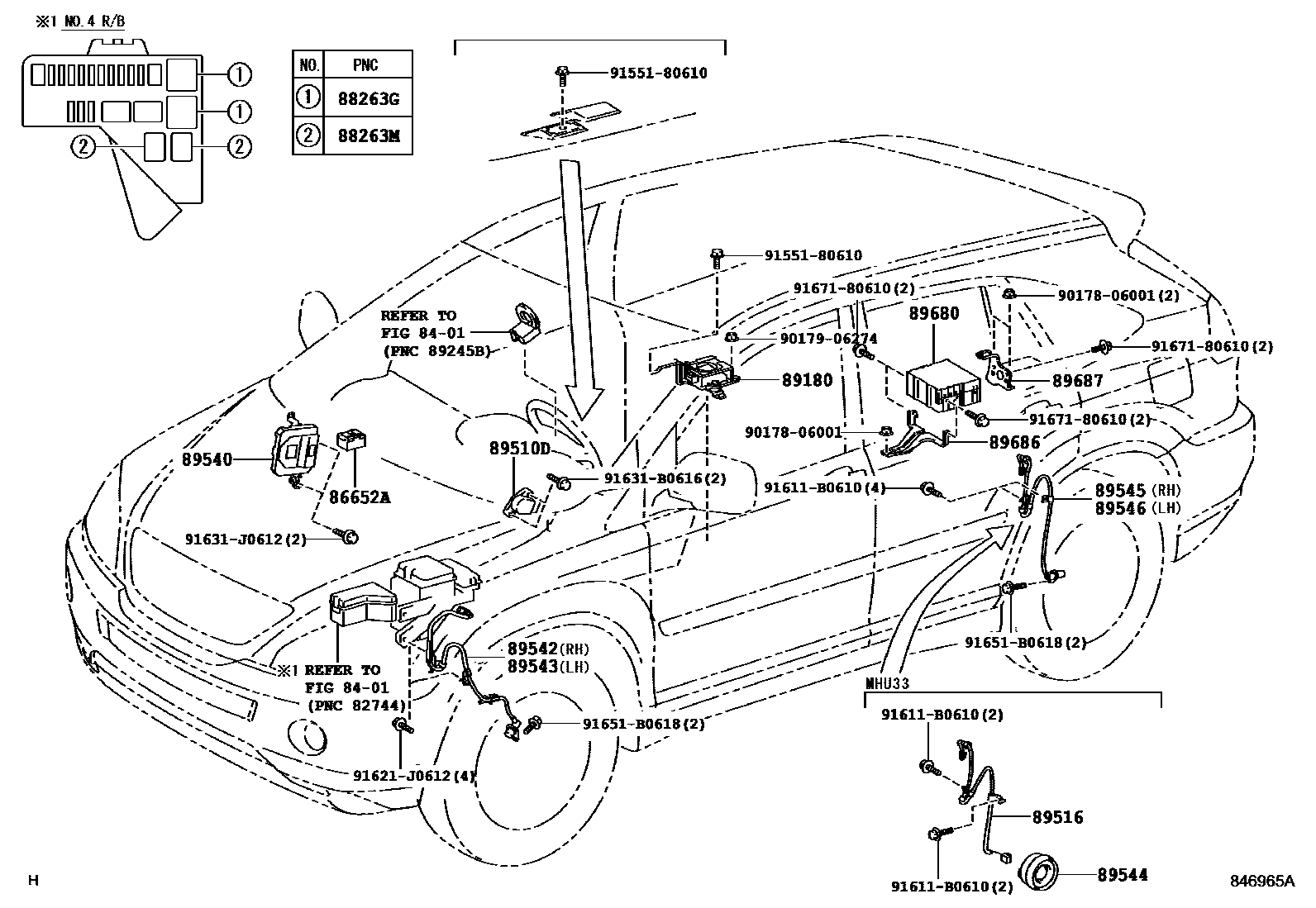

ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iMHU3#200503-200812

88263GRELAY, SKID CONTROL

main88263-21010iMHU3#200503-200812

88263MRELAY, ABS SOLENOID

main88263-32070iMHU3#200503-200812

89180SENSOR ASSY, YAWRATE

main89180-48020iMHU3#200503-200812

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47010iMHU3#200503-200812

89516WIRE, SKID CONTROL SENSOR

main89516-48030iMHU33200503-200812

RH

main89516-48040iMHU33200503-200812

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-48340iMHU3#200503-200707

sub89540-48341

main89540-48341iMHU3#200708-200812

89542SENSOR, SPEED, FRONT RH

main89542-48030iMHU3#200503-200812

89543SENSOR, SPEED, FRONT LH

main89543-48030iMHU3#200503-200812

89544SENSOR, SKID CONTROL

main89544-48030iMHU33200503-200812

89545SENSOR, SPEED, REAR RH

main89545-48030iMHU38200503-200812

89546SENSOR, SPEED, REAR LH

main89546-48030iMHU38200503-200812

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iMHU3#200607-200812

main89680-48010iMHU3#200503-200606

sub89680-47020

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-48010iMHU3#200503-200812

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-48010iMHU3#200503-200812

9017806001

main90178-06001

9017906274

main90179-06274

9155180610

main91551-80610

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91631B0616

main91631-B0616

91631J0612

main91631-J0612

91651B0618

main91651-B0618

9167180610

main91671-80610

25 parts on this diagram · 1 diagram in section
