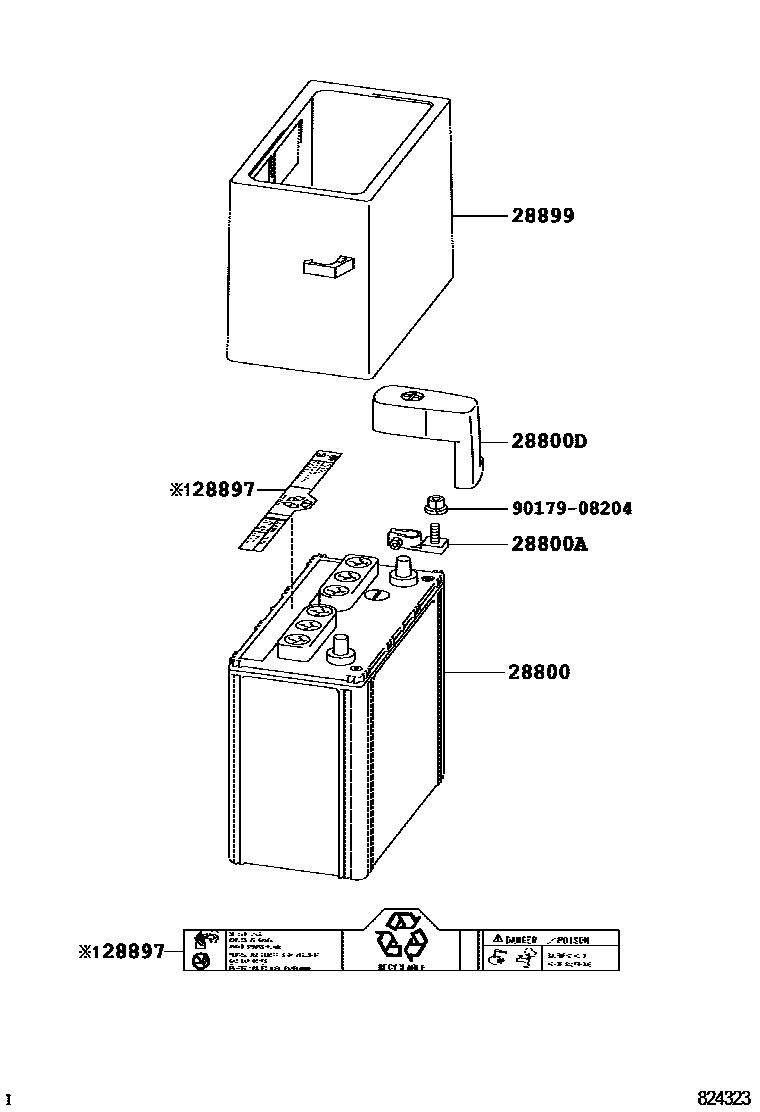

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY

28800BATTERY

main28800-20060i3MZFE..MHU3#¥53,000200503-200812

55B24L(S)

sub28800-20061¥53,000

28800ATERMINAL, BATTERY POSITIVE

main90982-05058i3MZFE..MHU3#¥860200503-200812

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20440i3MZFE..MHU3#¥1,210200503-200812

28897PLATE, BATTERY CAUTION

main28897-20010¥190

28899INSULATOR, BATTERY

main28899-20010i3MZFE..MHU3#¥4,630200503-200504

sub28899-20011¥4,630

main28899-20011i3MZFE..MHU3#¥4,630200504-200812

9017908204

main90179-08204¥140

6 parts on this diagram · 3 diagrams in section
