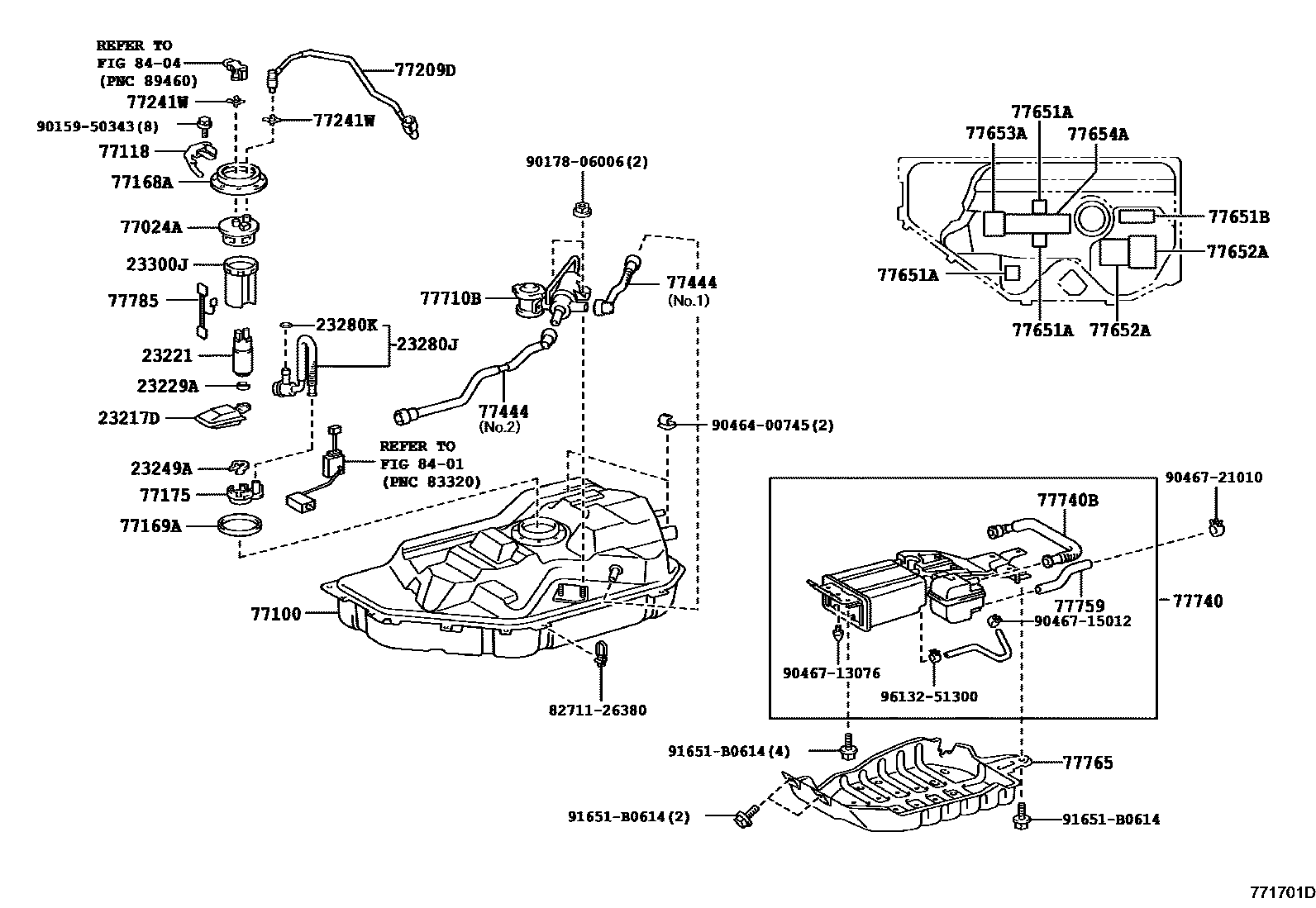

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
sub77001-48111
77118PLATE, FUEL PUMP CONNECTOR
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77209CONNECTOR SUB-ASSY, FUEL TUBE
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77241WCLIP, TUBE JOINT
77444HOSE, FUEL TANK VENT
NO.1
77651ACUSHION, FUEL TANK, NO.1
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
sub77652-33010
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77710BVALVE ASSY, FUEL TANK SOLENOID MAIN
77740CANISTER ASSY, CHARCOAL
77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77759HOSE, CHARCOAL CANISTER
77765PROTECTOR, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
8401
8404
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
9015950343
main90159-50343
9017806006
main90178-06006
9046400745
main90464-00745
9046713076
main90467-13076
9046715012
main90467-15012
9046721010
main90467-21010
91651B0614
main91651-B0614
9613251300
main96132-51300
39 parts on this diagram · 3 diagrams in section
