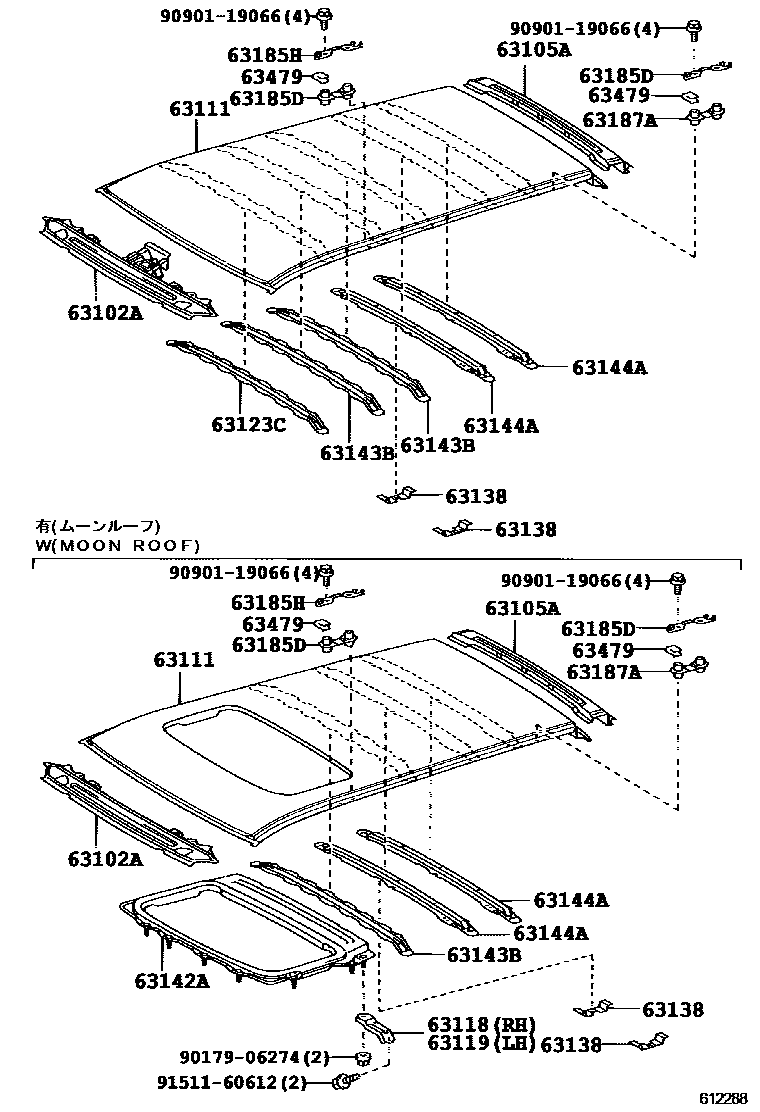

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
PREMIUM PACKAGE(USA)
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
PREMIUM PACKAGE(USA)
63118SUPPORT, ROOF PANEL, RH
PREMIUM PACKAGE(USA)
63119SUPPORT, ROOF PANEL, LH
PREMIUM PACKAGE(USA)
63123CREINFORCEMENT, ROOF PANEL
63138BRACKET, DOME LAMP, NO.2
63142AREINFORCEMENT, ROOF PANEL, NO.2
PREMIUM PACKAGE(USA)
63143BREINFORCEMENT, ROOF PANEL, NO.3
PREMIUM PACKAGE(USA)
63144AREINFORCEMENT, ROOF PANEL, NO.4
63185DBRACKET, ROOF RACK, FRONT
63185HBRACKET, ROOF RACK
63187ABRACKET, ROOF RACK, REAR
63479RETAINER, ROOF INNER RACK
9017906274
main90179-06274
9090119066
main90901-19066
9151160612
main91511-60612
17 parts on this diagram · 3 diagrams in section
