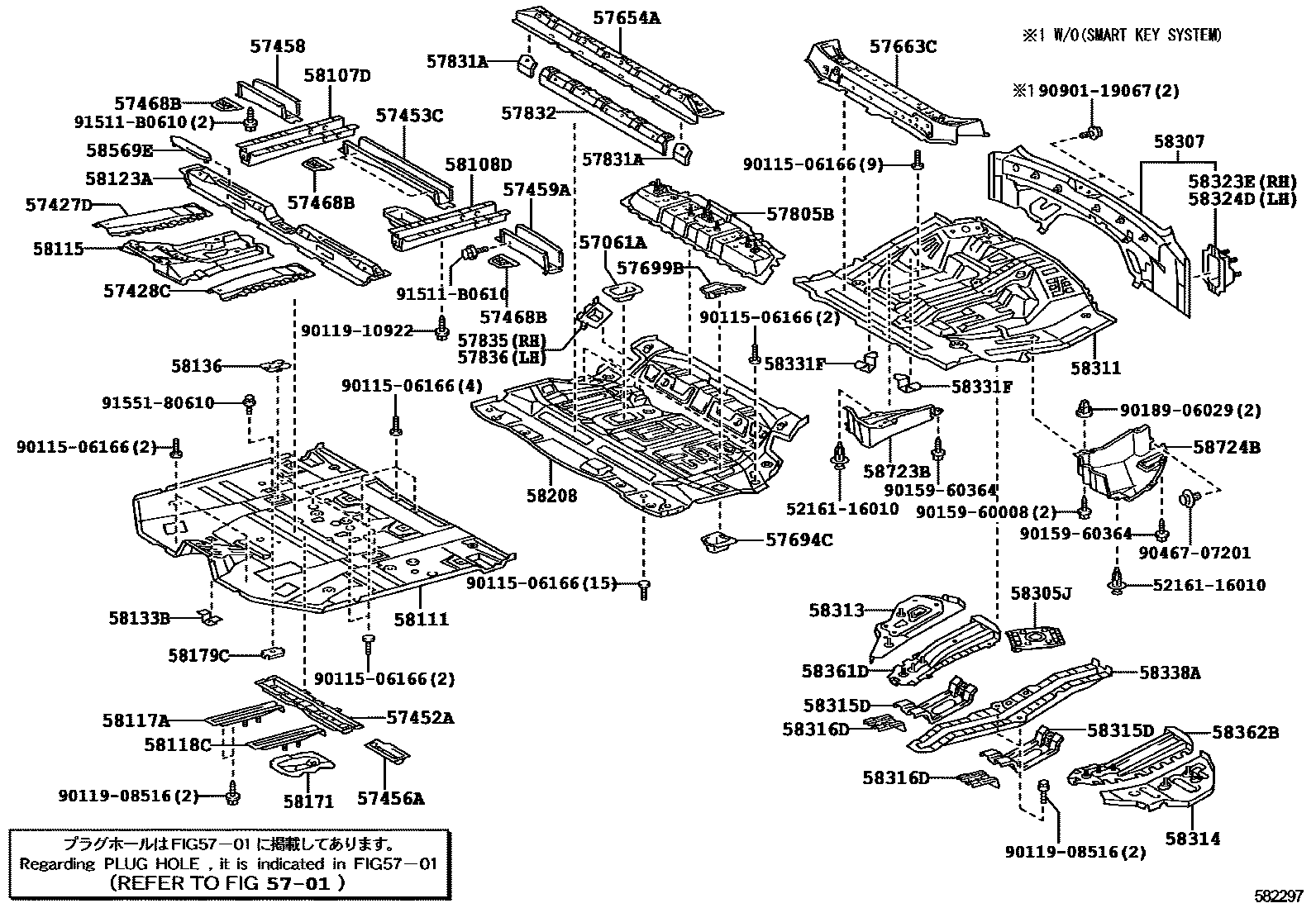

FLOOR PAN & LOWER BACK PANEL
5701
57061ABRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57452AMEMBER, FRONT FLOOR CROSS, NO.2
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57456AGUSSET, FRONT FLOOR CROSSMEMBER, LH
57458MEMBER, FRONT FLOOR CROSS, NO.1
57459AMEMBER, FRONT FLOOR CROSS, NO.2
57468BBRACKET, FRONT SEAT, REAR
57654AMEMBER, REAR FLOOR CROSS, NO.3
57663CMEMBER, REAR FLOOR CROSS, CENTER
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58111PAN, FRONT FLOOR
sub58111-48923
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58123ASUPPORT, SHIFT & SELECT LEVER
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58305JBRACKET, SPARE WHEEL CARRIER
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58569ECOVER, FRONT FLOOR CAUTION PLATE
58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
9011506166
main90115-06166
9011908516
main90119-08516
9011910922
main90119-10922
9015960008
main90159-60008
9015960364
main90159-60364
9018906029
main90189-06029
9046707201
main90467-07201
9090119067
main90901-19067
91511B0610
main91511-B0610
9155180610
main91551-80610
58 parts on this diagram · 2 diagrams in section
