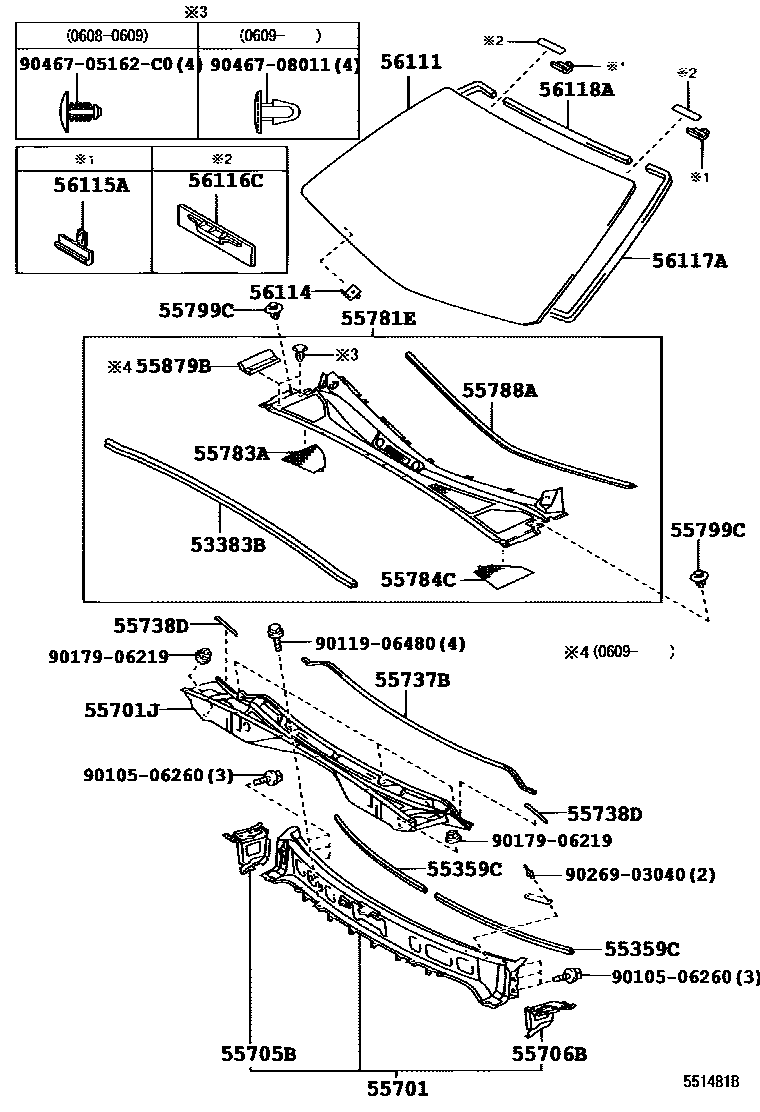

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55359CCOSHION, INSTRUMENT PANEL, NO.5
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55783APAD, COWL TOP SILENCER
55784CPAD, COWL TOP SILENCER, LH
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55799CCLIP, COWL TOP VENTILATOR LOUVER
55879BSEAL, COWL VENT
56111GLASS, WINDSHIELD
*LAM,T=5.48,GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=3487,CANADA SPEC&PREMIUM PACKAGE(USA)&W(WINDSHIELD WIPER DEICER)&SEAT HEATER-WITH(DRIVER & PASSENGER)
sub56117-44030
L=3487,PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER)
sub56117-44030
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=619,CANADA SPEC&PREMIUM PACKAGE(USA)&W(WINDSHIELD WIPER DEICER)&SEAT HEATER-WITH(DRIVER & PASSENGER)
sub56117-74010
L=619,PREMIUM PACKAGE(USA)&SEAT HEATER-WITH(DRIVER & PASSENGER)
sub56117-74010
9011906480
main90119-06480
9017906219
main90179-06219
9026903040
main90269-03040
9046705162C0
main90467-05162C0
9046708011
main90467-08011
25 parts on this diagram · 1 diagram in section
