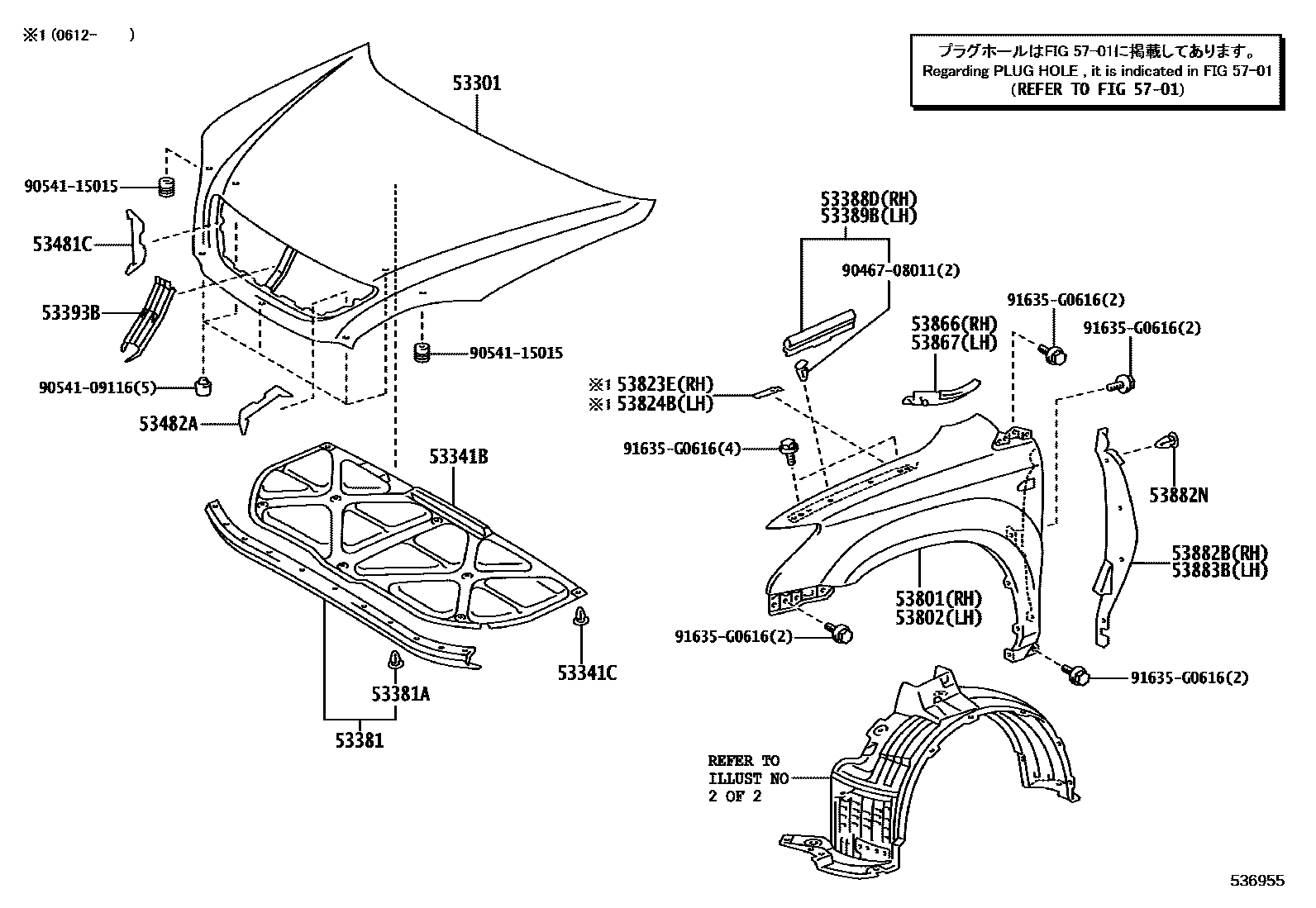

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
CANADA SPEC
KOREA SPEC
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53393BPROTECTOR, HOOD, FRONT
53481CBRACKET, HOOD SUPPORT, RH, NO.1
53482ABRACKET, HOOD SUPPORT, LH, NO.1
53801FENDER SUB-ASSY, FRONT RH
CANADA SPEC
KOREA SPEC
53802FENDER SUB-ASSY, FRONT LH
CANADA SPEC
KOREA SPEC
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882BSEAL, FRONT FENDER, RH
53882NCLIP(FOR FRONT FENDER SEAL)
BLACK
53883BSEAL, FRONT FENDER, LH
5701
9046708011
main90467-08011
9054109116
main90541-09116
9054115015
main90541-15015
91635G0616
main91635-G0616
24 parts on this diagram · 2 diagrams in section
