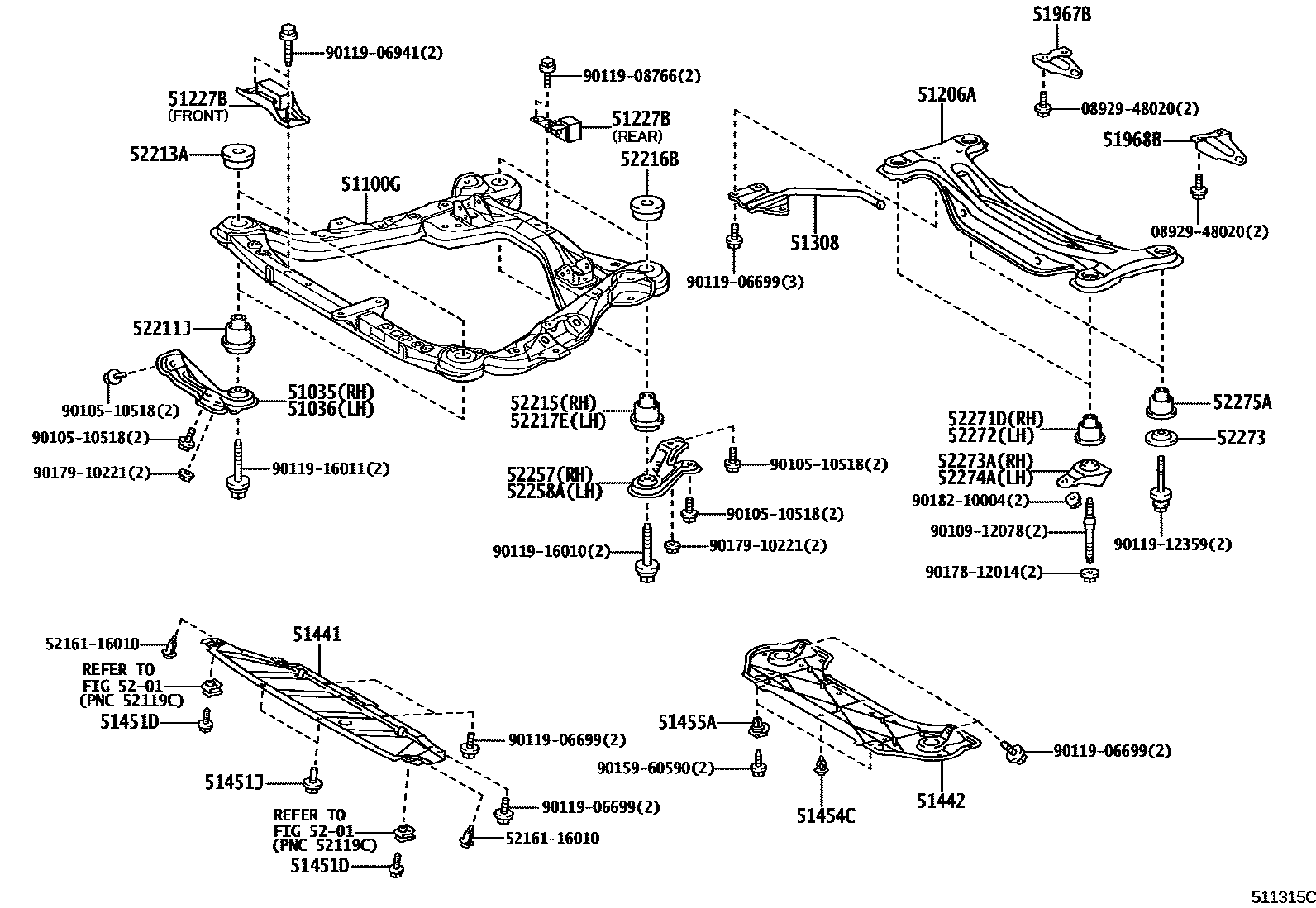

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48020iMHU3#200503-200812

sub51035-48021

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48020iMHU3#200503-200812

sub51036-48021

51100GFRAME ASSY, FRONT

main51100-48040iMHU3#200503-200703

sub51100-48060

main51100-48060iMHU3#200704-200806

sub51100-48061

main51100-48061iMHU3#200807-200812

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48031iMHU33200503-200507

sub51206-48070

main51206-48032iMHU33200508-200509

sub51206-48070

main51206-48050iMHU38200503-200812

main51206-48070iMHU33200509-200812

sub51206-48071

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48040iMHU3#200503-200812

REAR

main51227-48090iMHU3#200503-200812

FRONT

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-48021iMHU33200503-200512

sub51308-48022

main51308-48022iMHU33200601-200812

51441COVER, ENGINE UNDER, NO.1

main51440-48040iMHU3#200503-200812

51442COVER, ENGINE UNDER, NO.2

main51442-48020iMHU3#200503-200812

sub51442-48021

51451DSCREW, NO.1

main90159-60444iMHU3#200503-200812

51451JBOLT, NO.1

main90119-06699iMHU3#200503-200812

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-48010iMHU3#200503-200812

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010iMHU3#200503-200812

51967BHOOK, TRANSPORT, REAR RH

main51967-48020iMHU3#200503-200812

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iMHU3#200503-200812

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iMHU3#200503-200812

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iMHU3#200503-200812

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iMHU3#200503-200812

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iMHU3#200503-200812

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iMHU3#200503-200812

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iMHU3#200503-200812

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48030iMHU3#200503-200704

main51024-48040iMHU3#200705-200812

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32010iMHU38200503-200812

main52271-33030iMHU33200503-200812

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iMHU38200503-200812

main52272-33040iMHU33200503-200812

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iMHU33200503-200812

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-48010iMHU33200503-200812

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-48010iMHU33200503-200812

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050iMHU33200503-200812

main52275-48010iMHU38200503-200812

0892948020

main08929-48020

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010510518

main90105-10518

9010912078

main90109-12078

9011906699

main90119-06699

9011906941

main90119-06941

9011908766

main90119-08766

9011912359

main90119-12359

9011916010

main90119-16010

9011916011

main90119-16011

9015960590

main90159-60590

9017812014

main90178-12014

9017910221

main90179-10221

9018210004

main90182-10004

42 parts on this diagram · 2 diagrams in section
