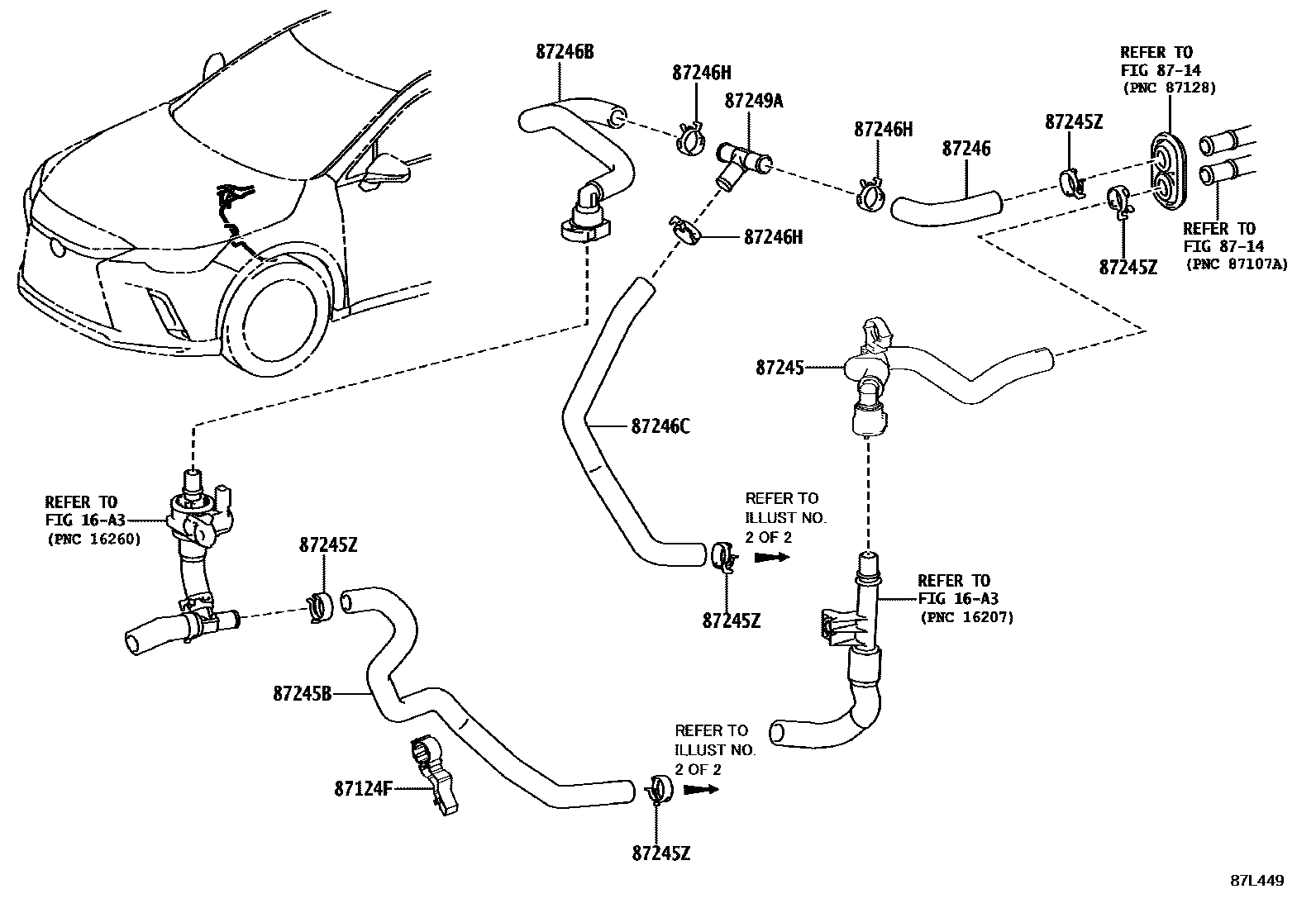

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1REAR 0003 1 0004 1

87124CLAMP, HEATER

main16581-F0390iTALH17202210

87124FCLAMP, HEATER HOSE, NO.1

main16581-0P130iAALH15202210

main16581-36140iTALH17202210

(J)

8714

87245HOSE, HEATER WATER, INLET

main87209-0E720iAALH15202210

main87209-0E740iTALH17202210

main87209-0E860iTALA1#202210

87245BHOSE, HEATER WATER, INLET B

main87245-0E490iAALH15202210

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90466-A0029iTALH17202210

87246HOSE, HEATER WATER, OUTLET

main87245-0E530iAALH15202210

main87245-0EC40iTALA1#202210

main87245-0EC50iTALH17202210

87246BHOSE, HEATER WATER, OUTLET B

main87209-0E650iAALH15202210

main87209-0E830iTALH17202210

87246CHOSE, HEATER WATER, OUTLET C

main87245-0E540iAALH15202210

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main90466-A0029iAALH15202210

(L)

main96138-42501iAALH15202210

(J)

87249APIPE, HEATER WATER OUTLET, A

main87248-0E170iAALH15202210

11 parts on this diagram · 4 diagrams in section
